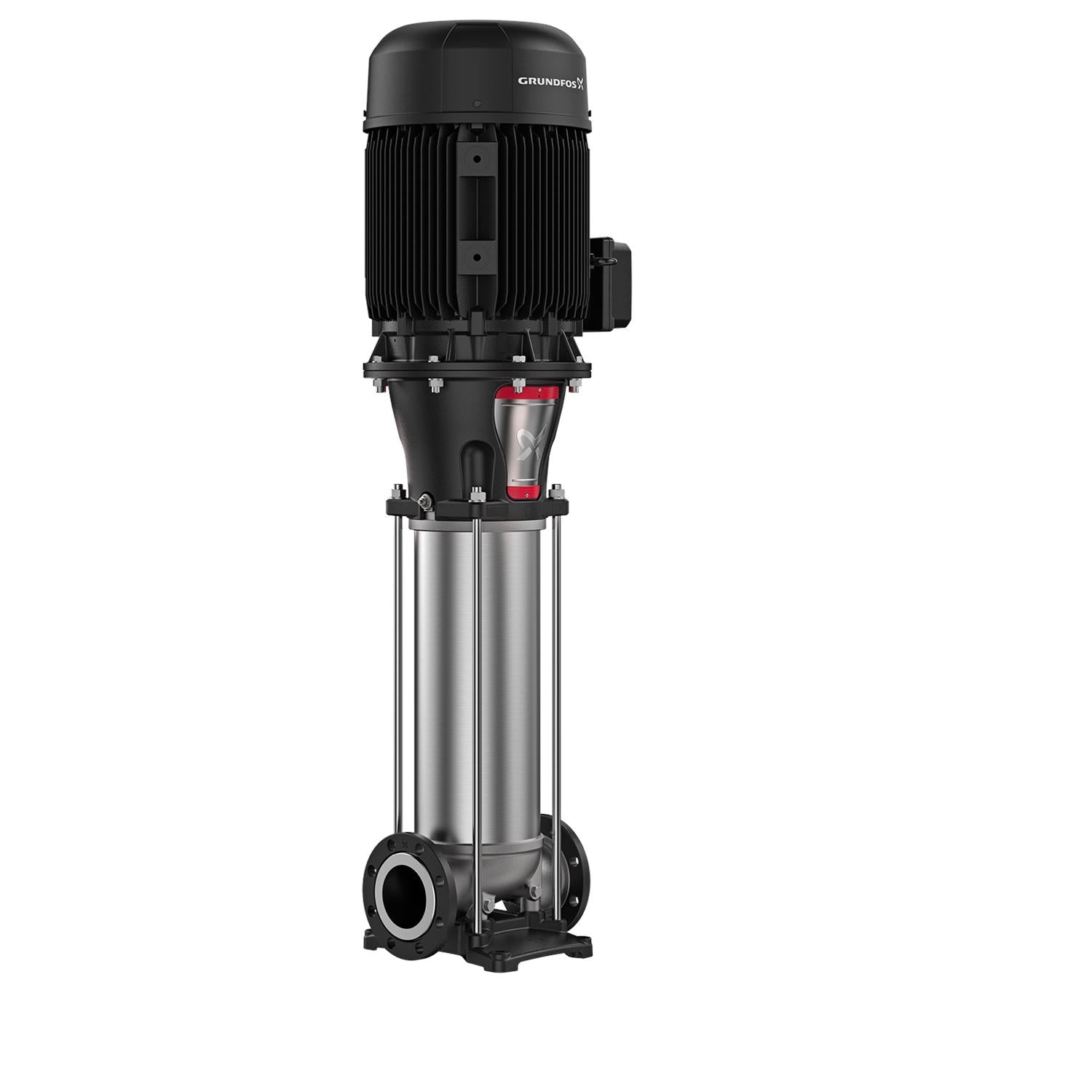

Grundfos 99400582 - CRN 255-1-1 A-G-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

Save $13,431.92
GRUNDFOSSKU: 99400582

Price:
Sale price$17,951.08 Regular price$31,383.00
Build to order – stocked components,typically available in 66 business days
or Call for most up to date lead times. (781) 281-8905

Description

CRN 255-1-1 A-G-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.

Approvals for drinking water NSF/ANSI 372
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection 150 lb
Curve tolerance ISO9906:2012 3B
Flange size for motor 364TSC
Frequency converter NONE
Gross weight 851.0 lb
Impeller Stainless steel
Impellers 1
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material certified according to European standards
Material code A
Maximum head 199.8 ft
Maximum operating pressure 232.06 psi
Model A
Motor 364TSC
Motor standard NEMA
n rpm 3549rpm
Net weight 593.0 lb
Number of reduced-diameter impellers 1
Power (P2) required by pump 60 HP
Pressure rating for connection 150 lb
Pump 60 HP
Pump version A
Rated flow 1350 US gpm
Rated head 133.9 ft
Rubber V
Shaft Product name:CRN 255-1-1 A-G-A-V-HQQV
Shaft seal HQQV
Stages 1
Standard NEMA
Support bearing Graflon
Thrust handling device N
Type of connection ANSI
Version A

Motor Curves

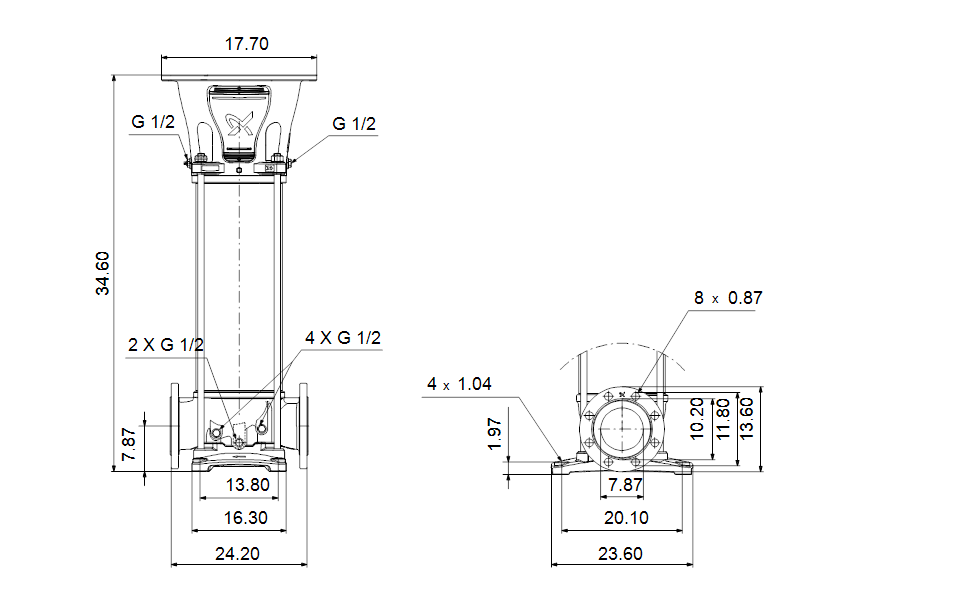

Dimensional Drawing
