Description

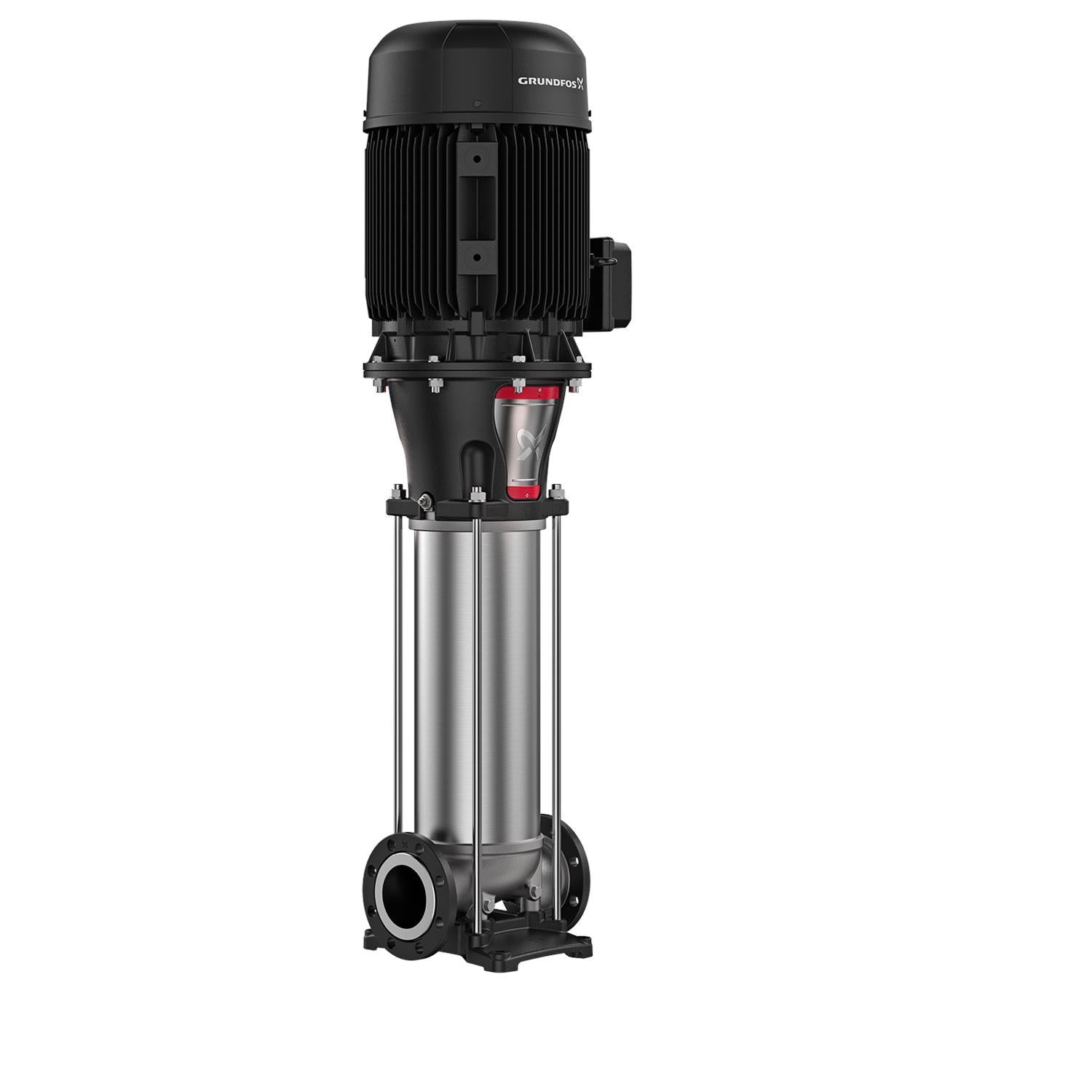

CRN 255-1-1 A-G-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.
Code for rubber
E
Material code
A
Maximum operating pressure
232.06 psi
Support bearing
Graflon
Type of connection
ANSI
Bearing 1
Graflon
Flange size for motor
364TSC
Connect code
G
Liquid temperature range
-4 .. 248 °F
Net weight
593.0 lb
Gross weight
851.0 lb
Power (P2) required by pump
60 HP
Pressure rating for connection
150 lb
Shaft
Product name:CRN 255-1-1 A-G-A-E-HQQE
Frequency converter
NONE
Stages
1
Rated flow
1350 US gpm
Model
A
Version
A
Motor
364TSC
Rubber
E
Maximum head
199.8 ft
Approvals for drinking water
NSF/ANSI 61,NSF/ANSI 372
Motor standard
NEMA
Material certified according to
European standards
Thrust handling device
N
Rated head
133.9 ft
Curve tolerance
ISO9906:2012 3B
Impellers
1
Connection
150 lb
Impeller
Stainless steel
Code for shaft seal
HQQE
Number of reduced-diameter impellers
1
Pump
60 HP
Low NPSH
N
Standard
NEMA
Pump version
A
