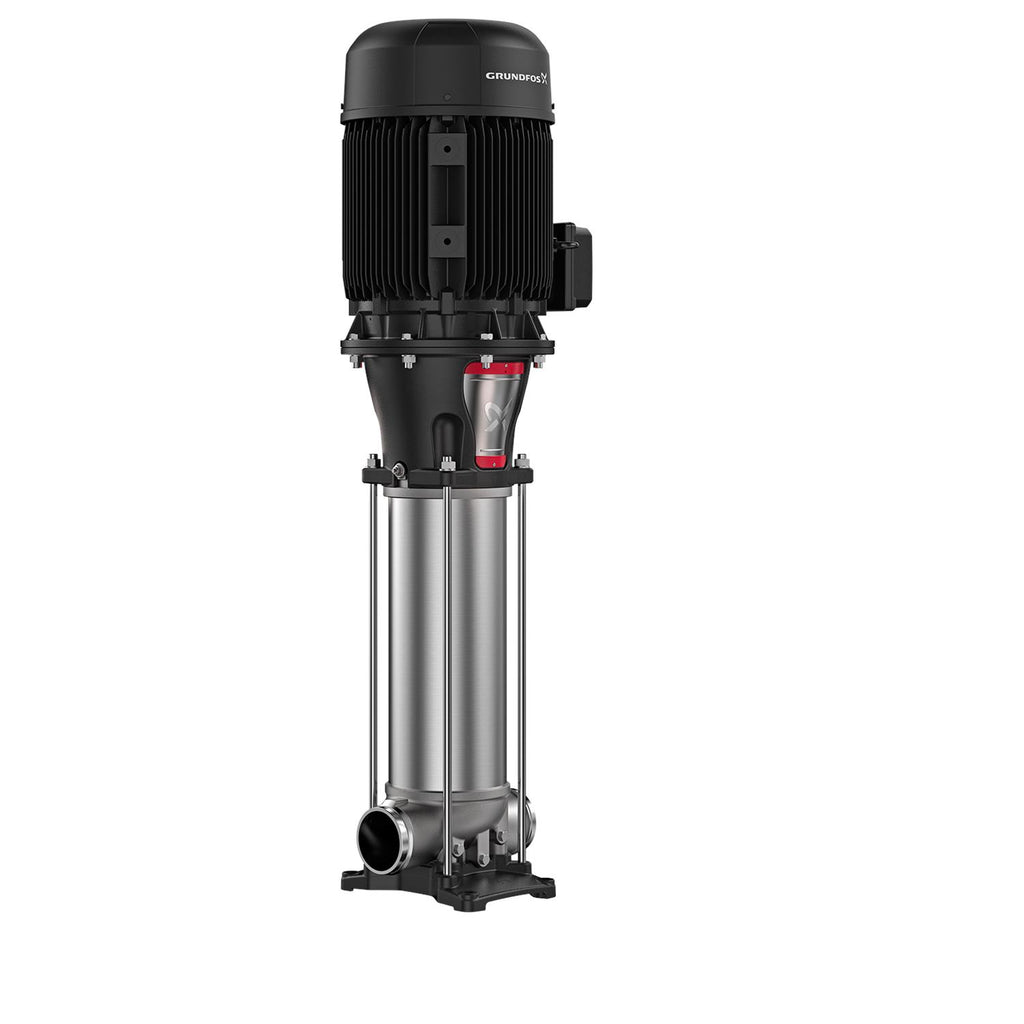

Grundfos 99145506 - CRN 215-5-3 A-P-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

GrundfosSKU: 99145506

Price:
Sale price$185,069.00
Build to order – stocked components, typically available in 76 days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRN 215-5-3 A-P-A-V-HQQV · Vertical Multistage Centrifugal Pump — All Stainless
CRN251HP460V3.0-Phase60 HzIE3 / NEMA PremiumTEFCStainless steel

The Grundfos 99145506 (CRN 215-5-3 A-P-A-V-HQQV) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 1140US gpm at 800.6ft. Rated 460V, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
251HP
Voltage
460V
Phase
3.0-Phase
Max Flow
1140US gpm
Max Head
800.6ft
Max Pressure
580.15psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
IE3 / NEMA Premium motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

All Stainless Steel Construction

Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.

Corrosion-Resistant for Aggressive Fluids

316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.

Cartridge Mechanical Seal

Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.

Dual Flange Standard — DIN, ANSI, JIS

CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.

3-A and FDA-Compliant Options

Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.

Wide Pressure Range

CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.

Model Information — CRN 215-5-3 A-P-A-V-HQQV
Series: CRN
Model Code: CRN 215-5-3 A-P-A-V-HQQV
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, V FKM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQV
Flange Rating: 800 psi
Technical Specifications
Model Number 99145506
Product Series CRN
Series Description Vertical Multistage Centrifugal Pump — All Stainless
Power 251HP
Voltage 460V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3573rpm
Full Load Current 269A
Motor Type WEG
Motor Efficiency Class IE3 / NEMA Premium
Motor Efficiency IE3 95,8%
Insulation Class F
Protection Class (IP) TEFC
Nominal Flow 1140US gpm
Nominal Head 800.6ft
Max Operating Pressure 580.15psi
Max Fluid Temperature 194°F
Max Ambient Temperature 104°F
Inlet Connection 8inch
Outlet Connection 8inch
Pipe Pressure Rating 800 psi
Pipe Standard PJE
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQV
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 460V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 215-5-3 A-P-A-V-HQQV
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5712607598990
Applications Industrial applications
Approvals for drinking water NSF/ANSI 372
Bearing 1 WC/WC
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection PJE
Connection 2 800 psi
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Eta 1/1 0.958
Flange size for motor 447TSD
Frequency 60 HZ
Frequency converter NONE
Full load SF current 309 A
Gross weight 3730.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 95,8%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 5
Insulation F
Insulation class (IEC 85) F
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material certified according to European standards
Material code A
Material Pricing Group 33
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 1091 ft
Maximum operating pressure 580.15 psi
Maximum permissible operating pressure 40bar
Model A
Motor 447TSD
Motor efficiency at 1/2 load 0.954
Motor efficiency at 3/4 load 0.958
Motor efficiency at full load 1 0.958
Motor protec NONE
Motor standard NEMA
Motor type WEG
n rpm 3573rpm
Net weight 3250.0 lb
Number of poles 2
Number of reduced-diameter impellers 3
P2 HP 251 HP
P2 kW 187kW
Phase 3
Power (P2) required by pump 251 HP
Power factor 1 0.9
Pressure rating 800 psi
Pressure rating for connection 800 psi
Product family CRN 215
Pump 251 HP
Pump housing Stainless steel
Pump inlet 8
Pump outlet 8
Pump version A
Pumped liquid Water
Rated current 269 A
Rated flow 1140 US gpm
Rated flow 2 1140 US gpm
Rated head 800.6 ft
Rated head 2 800.6 ft
Rated power - P2 251 HP
Rated speed 3573 rpm
Rated voltage 3 x 460 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQV
Stages 5
Standard NEMA
Starting current 6.7
Support bearing Graflon
Thrust handling device SiC/WC
Type WEG
Type of connection PJE
Version A

Motor Curves

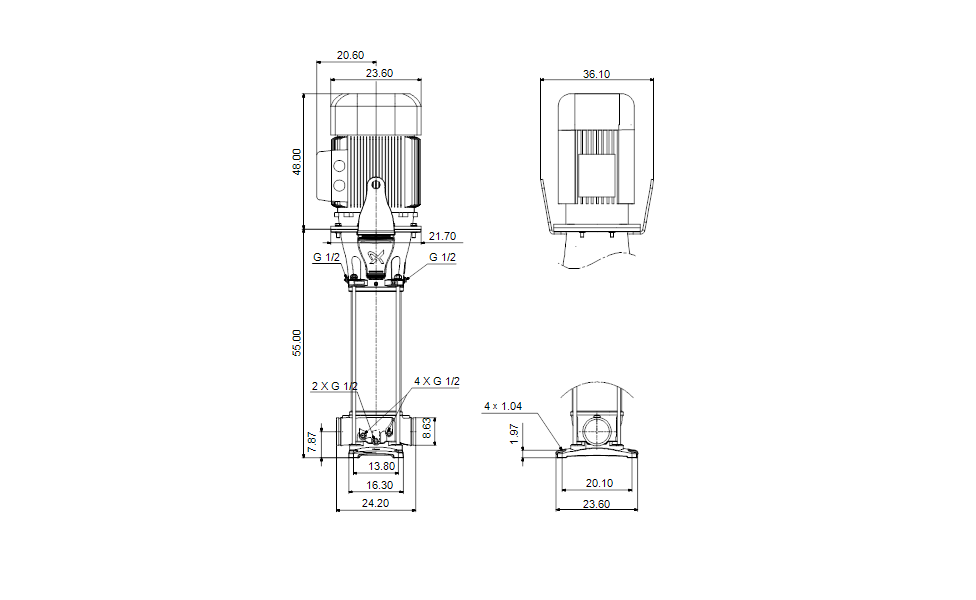

Dimensional Drawing

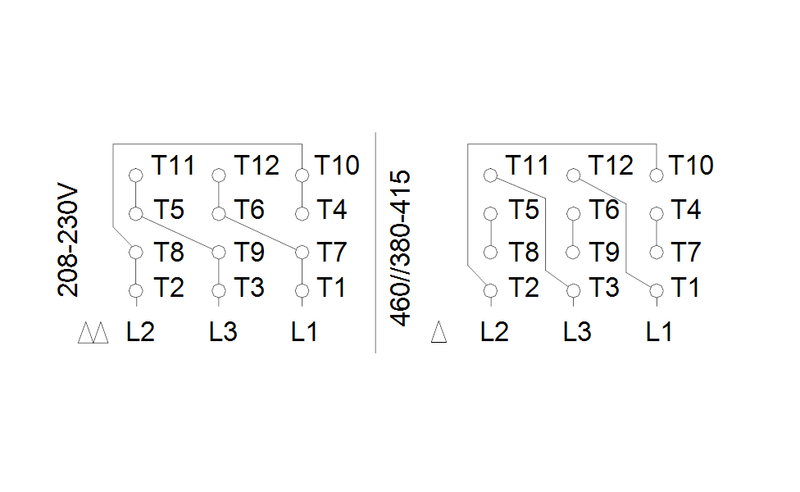

DWiring Diagram
