Grundfos 99145482 - CRN 215-4 A-G-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $63,943.20
GRUNDFOSSKU: 99145482

Price:
Sale price$85,456.80 Regular price$149,400.00
Build to order – stocked components, typically available in 76 days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99145482 - CRN 215-4 A-G-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 99145482 - CRN 215-4 A-G-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN 215-4 A-G-A-V-HQQV model is perfect for applications requiring consistent flow and pressure. This pump is part of the renowned Grundfos centrifugal pump range, which includes both single and multi-stage options, ensuring you find the right fit for your needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 99145482. If you encounter any difficulties in locating the right item, our team is here to help you navigate your options.

EAN 5712607598426
Applications Industrial applications
Approvals for drinking water NSF/ANSI 372
Bearing 1 WC/WC
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection ANSI
Connection 2 300 lb
Cooling IC 411
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Eta 1/1 0.958
Flange size for motor 447TSD
Frequency 60 HZ
Frequency converter NONE
Full load SF current 309 A
Gross weight 3770.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 95,8%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 4
Insulation F
Insulation class (IEC 85) F
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material certified according to European standards
Material code A
Material Pricing Group 33
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 1014 ft
Maximum operating pressure 580.15 psi
Maximum permissible operating pressure 40bar
Model A
Motor 447TSD
Motor efficiency at 1/2 load 0.954
Motor efficiency at 3/4 load 0.958
Motor efficiency at full load 1 0.958
Motor protec NONE
Motor standard NEMA
Motor type WEG
n rpm 3573rpm
Net weight 3290.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 HP 251 HP
P2 kW 187kW
Phase 3
Power (P2) required by pump 251 HP
Power factor 1 0.9
Pressure rating 300 lb
Pressure rating for connection 300 lb
Product family CRN 215
Pump 251 HP
Pump housing Stainless steel
Pump inlet 8
Pump outlet 8
Pump version A
Pumped liquid Water
Rated current 269 A
Rated flow 1140 US gpm
Rated flow 2 1140 US gpm
Rated head 790.4 ft
Rated head 2 790.4 ft
Rated power - P2 251 HP
Rated speed 3573 rpm
Rated voltage 3 x 460 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Shaft seal HQQV
Stages 4
Standard NEMA
Starting current 6.7
Support bearing Graflon
Thrust handling device SiC/WC
Type WEG
Type of connection ANSI
Version A

Motor Curves

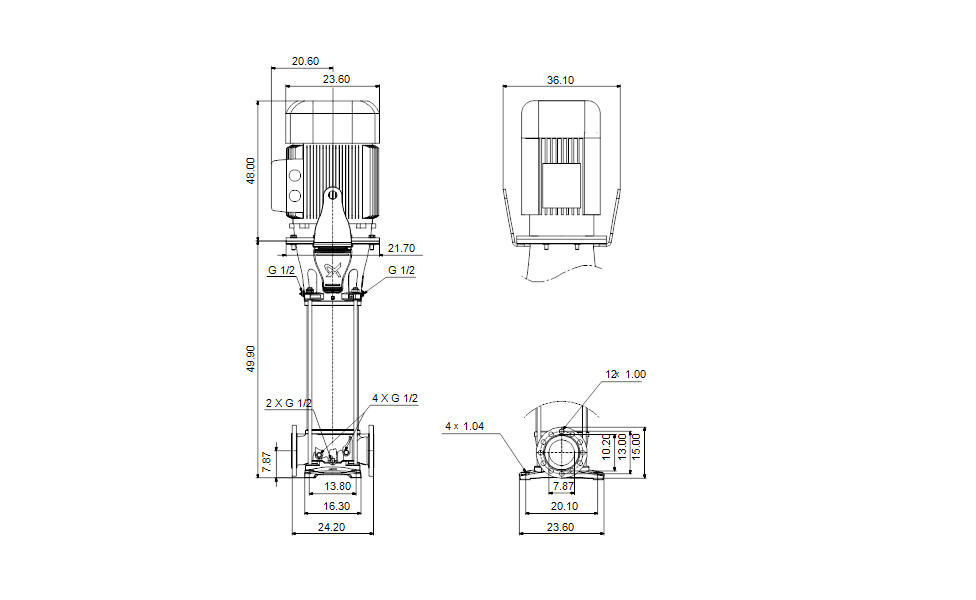

Dimensional Drawing

DWiring Diagram
