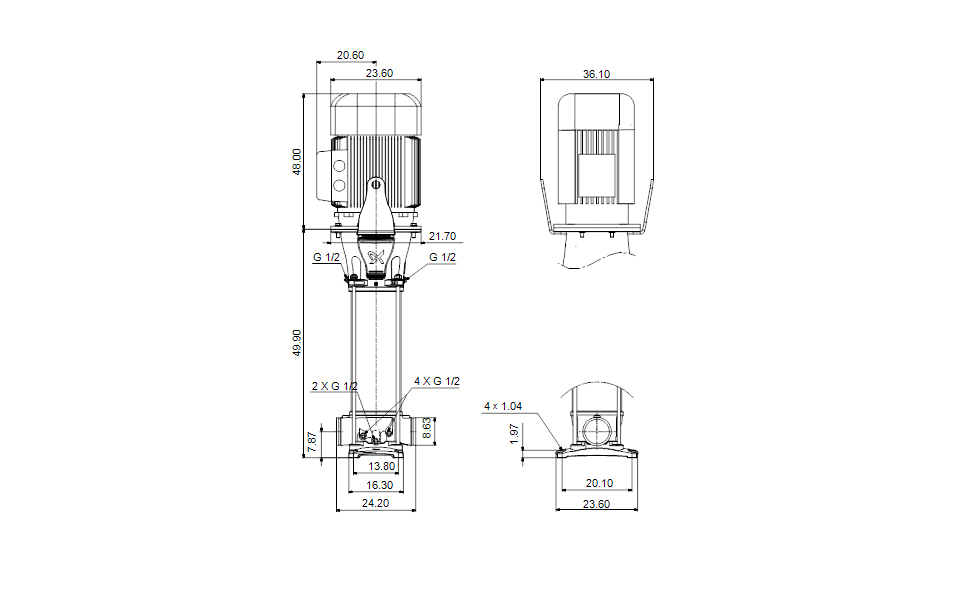

Grundfos 92542490 - CRN 215-4-2 A-P-A-V-HQQV
Grundfos 92542490 - CRN 215-4-2 A-P-A-V-HQQV
Grundfos 92542490 - CRN 215-4-2 A-P-A-V-HQQV
Grundfos 92542490 - CRN 215-4-2 A-P-A-V-HQQV

Grundfos 92542490 - CRN 215-4-2 A-P-A-V-HQQV

Save $65,971.68
GRUNDFOSSKU: 92542490
Price:
$71,469.32 $137,441.00
Build to order – stocked components, typically available in 80 business days
Chat or Call for most up to date lead times. (781) 281-8905

Description

CRN 215-4-2 A-P-A-V-HQQV | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A built-in thrust-handling device absorbs hydraulic axial forces which enables the use of a standard motor. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

Motor efficiency at full load 1 0.958
IE Efficiency class IE3 / NEMA Premium
Code for rubber V
Maximum ambient temperature 104 °F
Material code A
Maximum operating pressure 580.15 psi
Power factor 1 0.9
Support bearing Graflon
Type of connection PJE
Bearing 1 Graflon
Rated voltage 3 x 460 V
Flange size for motor 447TSD
Starting current 6.7
Connect code P
Liquid temperature range -4 .. 194 °F
Insulation class (IEC 85) F
IE efficiency IE3 95,8%
Motor efficiency at 1/2 load 0.954
Built-in motor protection NONE
Net weight 3330.0 lb
Number of poles 2
Rated speed 3573 rpm
Gross weight 3810.0 lb
Rated power - P2 251 HP
Enclosure class (IEC 34-5) IP55
Power (P2) required by pump 251 HP
Pressure rating for connection 800 psi
Motor efficiency at 3/4 load 0.958
Shaft Product name:CRN 215-4-2 A-P-A-V-HQQV
Rated current 269 A
Service factor 1.15
Full load SF current 309 A
Frequency converter NONE
Motor type WEG
Stages 4
Rated flow 1140 US gpm
Model A
Version A
Cooling IC 411
Motor 447TSD
Rubber V
Maximum head 898.7 ft
Approvals for drinking water NSF/ANSI 372
Motor standard NEMA
Material certified according to European standards
Thrust handling device Y
Rated head 665.7 ft
Type WEG
Curve tolerance ISO9906:2012 3B
Impellers 2
Connection 800 psi
Impeller Stainless steel
Code for shaft seal HQQV
Number of reduced-diameter impellers 2
Pump 251 HP
Low NPSH N
Standard NEMA
Pump version A
