Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRN 20-7 A-P-A-E-HQQE · Vertical Multistage Centrifugal Pump — All Stainless
The Grundfos 99820039 (CRN 20-7 A-P-A-E-HQQE) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 111US gpm at 389.5ft. Rated 208-230DD/460DV, 3.0-Phase, 60 Hz.
Power
20HP
Voltage
208-230DD/460DV
Phase
3.0-Phase
Max Flow
111US gpm
Max Head
389.5ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
All Stainless Steel Construction
Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.
Corrosion-Resistant for Aggressive Fluids
316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.
Cartridge Mechanical Seal
Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.
Dual Flange Standard — DIN, ANSI, JIS
CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.
3-A and FDA-Compliant Options
Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.
Wide Pressure Range
CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.
Model Information — CRN 20-7 A-P-A-E-HQQE
Series: CRN
Model Code: CRN 20-7 A-P-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQE
Flange Rating: PN 50
Technical Specifications
| Model Number | 99820039 |
| Product Series | CRN |
| Series Description | Vertical Multistage Centrifugal Pump — All Stainless |
| Power | 20HP |
| Voltage | 208-230DD/460DV |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3490-3530rpm |
| Pump Speed | 3497rpm |
| Full Load Current | 50,5-46.0/23,0A |
| Motor Type | 160AB |
| Motor Protection | PTC |
| Motor Efficiency Class | NEMA Premium / IE3 60Hz |
| Motor Efficiency | 90.5-91.0% |
| Insulation Class | F |
| Protection Class (IP) | IP55 Dust/Jetting |
| Nominal Flow | 111US gpm |
| Nominal Head | 389.5ft |
| Max Operating Pressure | 362.59psi |
| Max Fluid Temperature | 248°F |
| Max Ambient Temperature | 104°F |
| Inlet Connection | DN 50 |
| Outlet Connection | DN 50 |
| Pipe Pressure Rating | PN 50 |
| Pipe Standard | PJE |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Shaft Seal | HQQE |
| Approvals / Certifications | CE, EAC, UKCA, SEPRO |
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 208-230DD/460DV, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 20-7 A-P-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- EAN
- 5713834744037
- Actual impeller diameter
- 4.13 in
- Approvals
- CURUS
- Built-in motor protection
- PTC
- Code for rubber
- E
- Code for shaft seal
- HQQE
- Connect code
- P
- Connection
- PN 50
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Diameter
- 4.13 in
- DOE Pump Energy Index CL
- 0.91
- Enclosure class (IEC 34-5)
- 55 Dust/Jetting
- Flange size for motor
- 254TC
- Frequency converter
- NONE
- Gross weight
- 408.0 lb
- IE Efficiency class
- NEMA Premium / IE3 60Hz
- Impeller
- Stainless steel
- Impellers
- 0
- Insulation class (IEC 85)
- F
- Liquid temperature range
- -4 .. 248 °F
- Low NPSH
- N
- Mains frequency
- 60 Hz
- Material code
- A
- Material Pricing Group
- 6
- Max pressure at stated temp
- 363 psi / 250 °F
- Maximum ambient temperature
- 104 °F
- Maximum head
- 488.9 ft
- Maximum operating pressure
- 25 bar
- Model
- A
- Motor
- 254TC
- Motor efficiency at 1/2 load
- 93.0-92.5 %
- Motor efficiency at 3/4 load
- 91.5-92.5 %
- Motor efficiency at full load 1
- 90.5-91.0 %
- Motor standard
- NEMA
- Motor type
- 160AB
- Net weight
- 293.0 lb
- Number of poles
- 2
- Number of reduced-diameter impellers
- 0
- Power (P2) required by pump
- 15 kW
- Power factor 1
- 0.92-0.90
- Pressure rating for connection
- PN 50
- Pressure sensor
- N
- Pump
- 15 kW
- Pump speed on which pump data are based
- 3497 rpm
- Pump version
- A
- Pumped liquid
- Water
- Rated current
- 50
- Rated flow
- 111 US gpm
- Rated head
- 389.5 ft
- Rated power - P2
- 15 kW
- Rated speed
- 3490-3530 rpm
- Rated voltage
- 3 x 208-230DD/460D V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Rubber
- E
- Selected liquid temperature
- 68 °F
- Service factor
- 1.15
- Size of inlet connection
- DN 50
- Size of outlet connection
- DN 50
- Stages
- 7
- Standard
- NEMA
- Starting current
- 610-810 %
- Type
- 160AB
- Type of connection
- PJE
- Version
- A
Dimensional Drawing

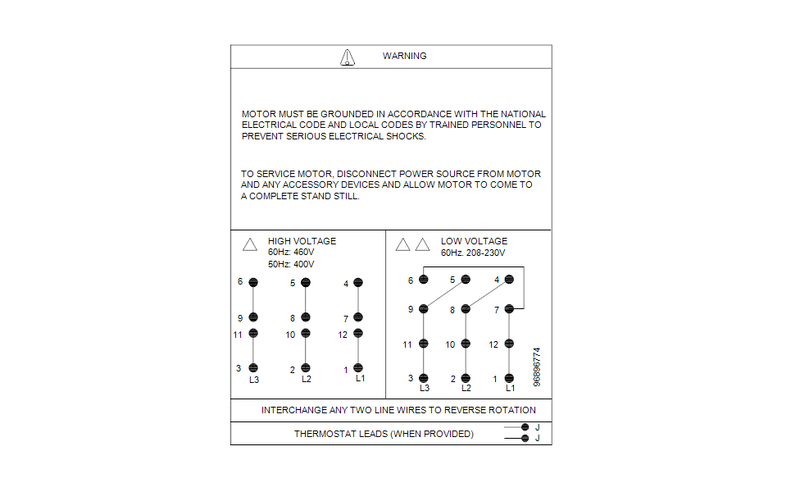

Wiring Diagram
