Grundfos 98072397 - CRN 20-7 F-FGJ-H-F-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98072397

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98072397 - CRN 20-7 F-FGJ-H-F-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98072397 - CRN 20-7 F-FGJ-H-F-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model ensures efficient operation and reliability in demanding environments.

With its robust construction and advanced design, the CRN 20-7 F-FGJ-H-F-HQQE is ideal for high-pressure applications, making it a perfect choice for those seeking durability and performance. This pump is part of the Grundfos Centrifugal Pumps range, specifically tailored for both single and multi-stage operations.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710628461378
Approvals CE
Built-in motor protection PTC
Code for rubber F
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor FF300
Frequency converter NONE
Gross weight 421.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 356 °F
Low NPSH N
Mains frequency 60 Hz
Material code H
Material Pricing Group 6
Max pressure at stated temp 363 psi / 356 °F
Maximum ambient temperature 140 °F
Maximum head 488.9 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor efficiency at 1/2 load 92.9-91.3 %
Motor efficiency at 3/4 load 91.9-92.3 %
Motor efficiency at full load 1 91.0-91.0 %
Motor standard IEC
Motor type 160MD
Net weight 353.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 15 kW
Power factor 1 0.89-0.86
Pressure rating for connection PN 25
Pressure sensor N
Pump 15 kW
Pump speed on which pump data are based 3528 rpm
Pump version F
Pumped liquid Water
Rated current 26
Rated flow 111 US gpm
Rated head 393.4 ft
Rated power - P2 15 kW
Rated speed 3530-3550 rpm
Rated voltage 3 x 400-480D/690Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 7
Standard IEC
Starting current 640-890 %
Type 160MD
Type of connection DIN / ANSI / JIS
Version F

Motor Curves

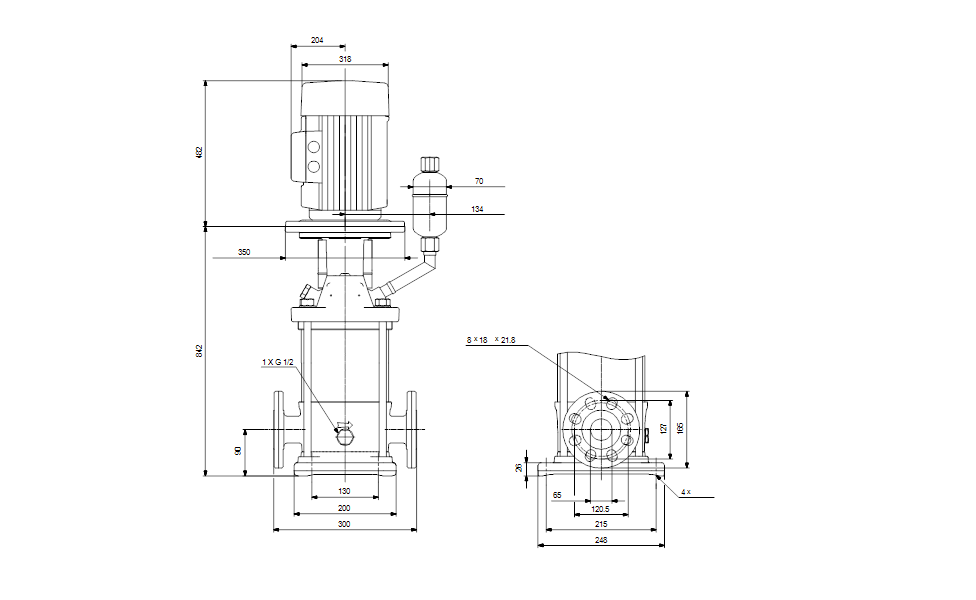

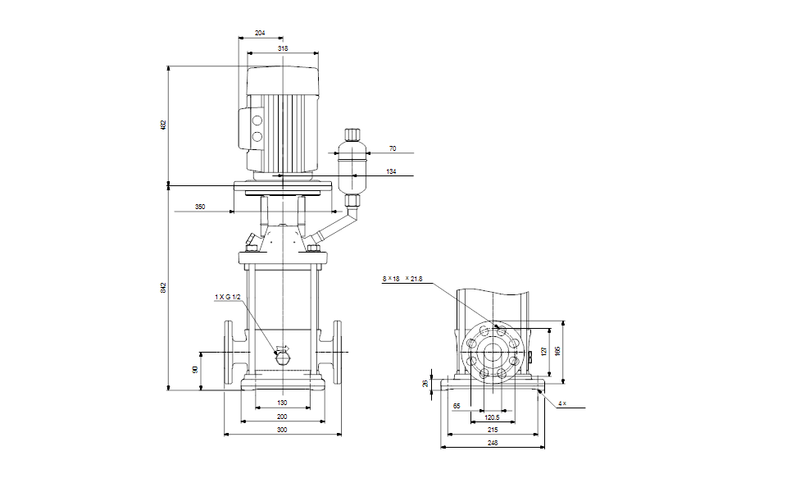

Dimensional Drawing
