Grundfos 92681372 - CRN 20-5 BM-FGJ-A-V | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92681372

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92681372 - CRN 20-5 BM-FGJ-A-V is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer, circulation, and boosting systems.

With its robust construction and advanced design, the CRN 20-5 BM-FGJ-A-V ensures optimal flow rates and energy efficiency, catering to the demanding needs of various sectors. This pump is part of the Grundfos Centrifugal Pumps range, specifically tailored for both single and multi-stage applications.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5715118056614
Approvals CURUS
Built-in motor protection NONE
Code for rubber V
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 220.0 lb
IE efficiency IE3 89
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 85.31 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor efficiency at 1/2 load 0.875
Motor efficiency at 3/4 load 0.885
Motor efficiency at full load 1 0.895
Motor standard NEMA
Motor type WEG
Net weight 201.0 lb
Number of poles 4
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.81
Pressure rating for connection PN 25
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 1735 rpm
Pump version bm
Pumped liquid Water
Rated current 7.62/3.81 A
Rated flow 55.9 US gpm
Rated head 66.6 ft
Rated power - P2 2.2 kW
Rated speed 1765 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 5
Standard NEMA
Starting current 8.8
Type WEG
Type of connection DIN / ANSI / JIS
Version bm

Motor Curves

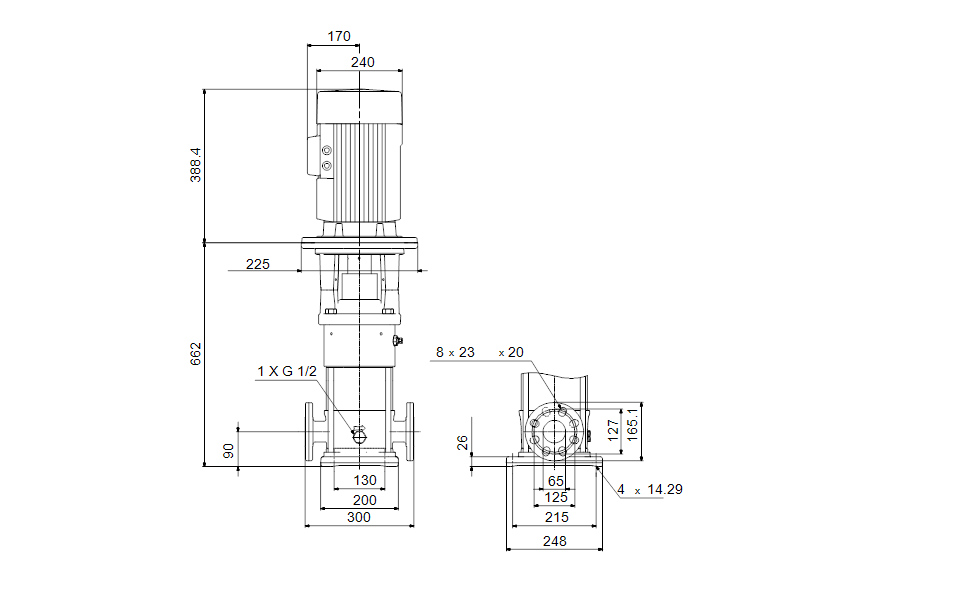

Dimensional Drawing

DWiring Diagram
