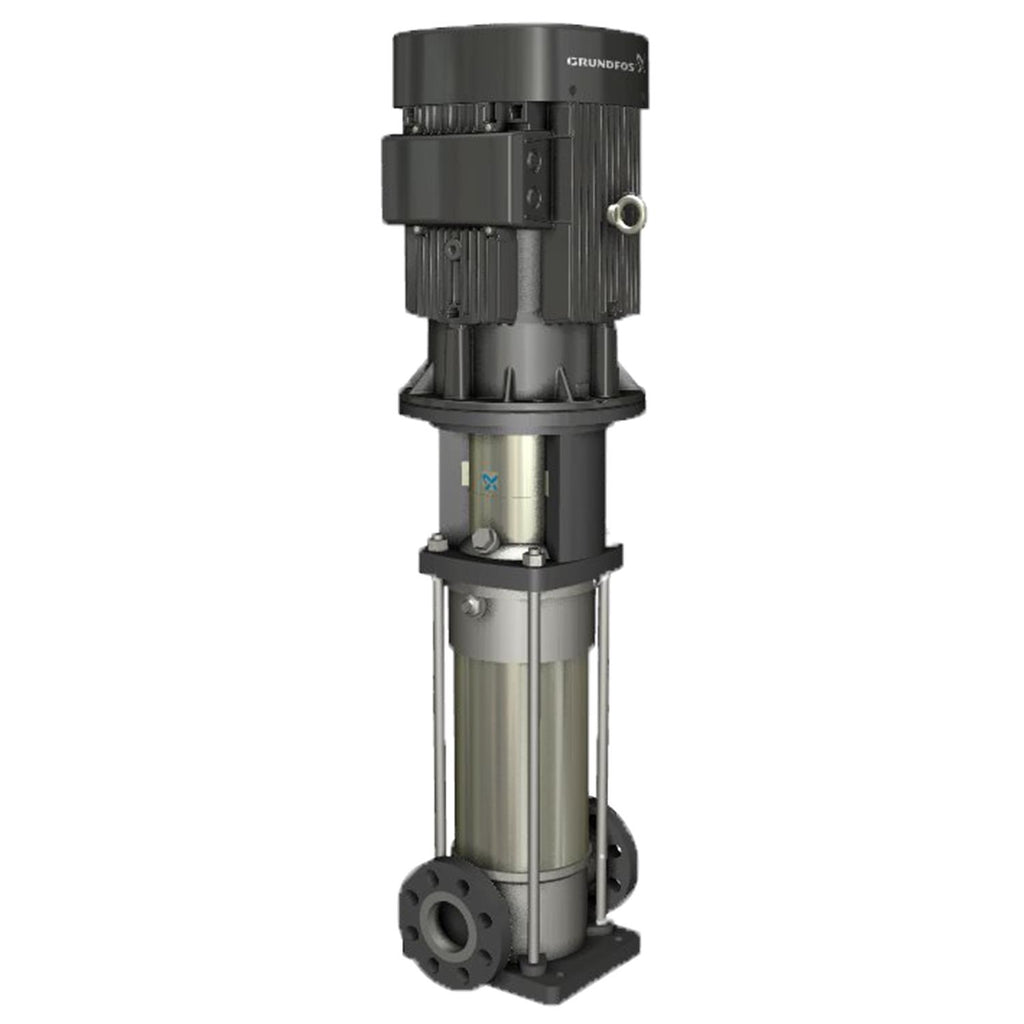

Grundfos 99155763 - CRN 20-4 M-FGJ-A-V | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99155763

Price:
Sale price$30,481.94
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99155763 - CRN 20-4 M-FGJ-A-V is a vertical multistage centrifugal pump suited for industrial fluid transfer and pressure-boosting systems. This model fits applications calling for compact, high-pressure inline multistage performance.

Key features

  • Multistage centrifugal design for elevated discharge pressure and smooth flow
  • Vertical, in-line configuration minimizes footprint and simplifies installation
  • Engineered for high-pressure service, providing reliable boost and system stability

Applications

Typical uses include industrial process boosting, high-pressure water supply, boiler feed support, and other in-line vertical multistage centrifugal duties.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99155763

EAN 5712607782610
Approvals CURUS
Built-in motor protection NONE
Code for rubber V
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 54 Dust/Splashing
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 370.0 lb
IE efficiency IE3 90.2%
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 274.3 ft
Maximum operating pressure 25 bar
Model A
Motor 254TC
Motor efficiency at full load 1 0.902
Motor standard NEMA
Motor type BALDOR
Net weight 284.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 11 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 11 kW
Pump speed on which pump data are based 3470 rpm
Pump version M
Pumped liquid Water
Rated current 37.5-34/17 A
Rated flow 111 US gpm
Rated head 210.3 ft
Rated power - P2 11 kW
Rated speed 3450 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 4
Standard NEMA
Type BALDOR
Type of connection DIN / ANSI / JIS
Version M

Motor Curves

Dimensional Drawing

DWiring Diagram
