Grundfos 97572396 - CRN 20-3 BM-FGJ-A-V | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 97572396

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 97572396 CRN 20-3 BM-FGJ-A-V is a vertical multistage centrifugal inline pump suited for systems requiring compact, high-pressure pumping; typical users include service technicians and plant operators working with industrial and commercial fluid systems.

Key features

  • Vertical, multistage centrifugal design with inlet and outlet ports on the same level for inline installation
  • Wetted parts in high-grade stainless steel for corrosion resistance and durability
  • Combined DIN-ANSI-JIS flanged connections for flexible piping compatibility and easier system integration

Applications

Suitable for high-pressure boosting, HVAC and process water circulation, boiler feed, and other industrial inline pumping tasks where compact vertical multistage performance is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97572396

EAN 5700318803526
Approvals CE
Code for rubber V
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 203.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 206 ft
Maximum operating pressure 25 bar
Model A
Motor 254TC
Motor standard NEMA
Net weight 117.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3467 rpm
Pump version bm
Rated flow 111 US gpm
Rated head 159.1 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 3
Standard NEMA
Type of connection DIN / ANSI / JIS
Version bm

Motor Curves

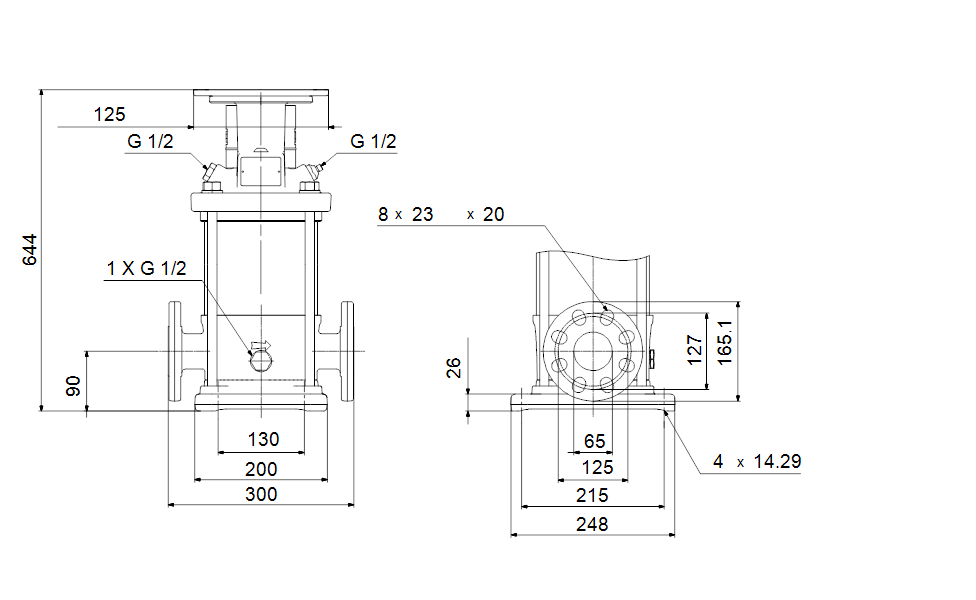

Dimensional Drawing
