Grundfos 92660306 - CRN 20-3 A-P-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92660306

Price:
Sale price$15,766.67
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92660306 - CRN 20-3 A-P-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 92660306 - CRN 20-3 A-P-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN 20-3 A-P-A-V-HQQV is perfect for applications requiring consistent flow and pressure. This pump is part of Grundfos's renowned line of centrifugal pumps, known for their durability and efficiency.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team via chat or phone. Let us help you find the perfect solution for your pumping needs!

EAN 5715117740774
Actual impeller diameter 4.13 in
Approvals CURUS
Built-in motor protection PTO
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Enclosure class (IEC 34-5) IP55
Flange size for motor 213TC
Frequency converter NONE
Gross weight 377.0 lb
IE efficiency IE3 89
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 206 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor efficiency at 1/2 load 0.855
Motor efficiency at 3/4 load 0.885
Motor efficiency at full load 1 0.895
Motor standard NEMA
Motor type WEG
Net weight 291.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.9
Pressure rating for connection PN 50
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 3467 rpm
Pump version A
Pumped liquid Water
Rated current 19
Rated flow 111 US gpm
Rated head 159.1 ft
Rated power - P2 5.5 kW
Rated speed 3525 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 3
Standard NEMA
Starting current 700-700 %
Type WEG
Type of connection PJE
Version A

Motor Curves

Dimensional Drawing

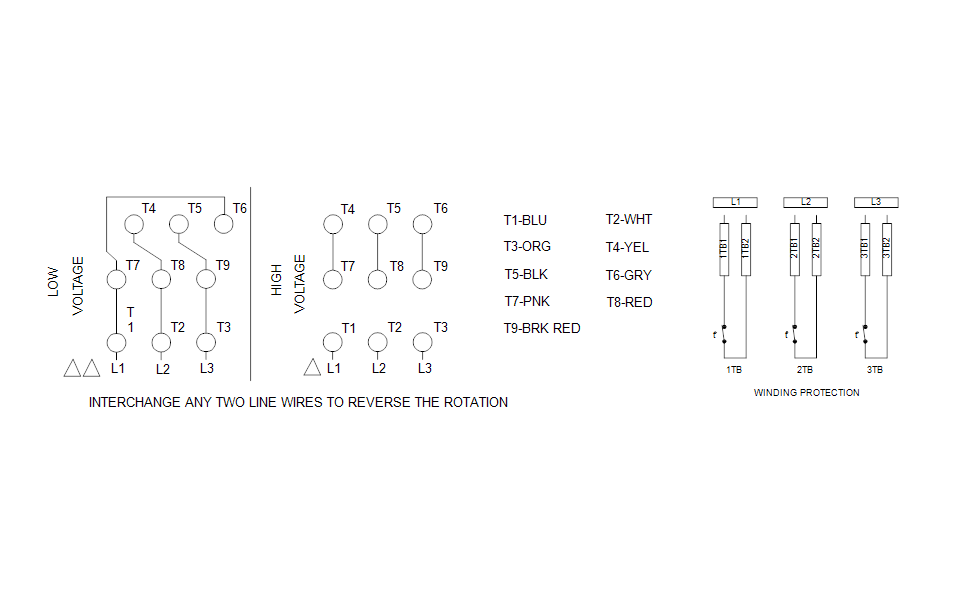

DWiring Diagram
