Grundfos 92931916 - CRN 20-2 A-FGJ-A-K-HQQK | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92931916

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92931916 - CRN 20-2 A-FGJ-A-K-HQQK Vertical Multistage Centrifugal Pump

The Grundfos 92931916 - CRN 20-2 A-FGJ-A-K-HQQK is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model is ideal for high-pressure and inline pumping needs.

With its robust construction and efficient design, the CRN 20-2 A-FGJ-A-K-HQQK ensures reliable operation and longevity, making it a perfect choice for demanding environments. Whether you need to transport water or other fluids, this pump delivers exceptional performance and reliability.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715121743648
Actual impeller diameter 4.13 in
Approvals CURUS
Built-in motor protection PTO
Code for rubber K
Code for shaft seal HQQK
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 298.0 lb
IE efficiency IE3 88
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 32 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 136.5 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor efficiency at 1/2 load 0.855
Motor efficiency at 3/4 load 0.875
Motor efficiency at full load 1 0.885
Motor standard NEMA
Motor type WEG
Net weight 212.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3.7 kW
Power factor 1 0.86
Pressure rating for connection PN 25
Pressure sensor N
Pump 3.7 kW
Pump speed on which pump data are based 3461 rpm
Pump version A
Pumped liquid Water
Rated current 13
Rated flow 111 US gpm
Rated head 104 ft
Rated power - P2 3.7 kW
Rated speed 3490 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber K
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 2
Standard NEMA
Starting current 750-750 %
Type WEG
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

Dimensional Drawing

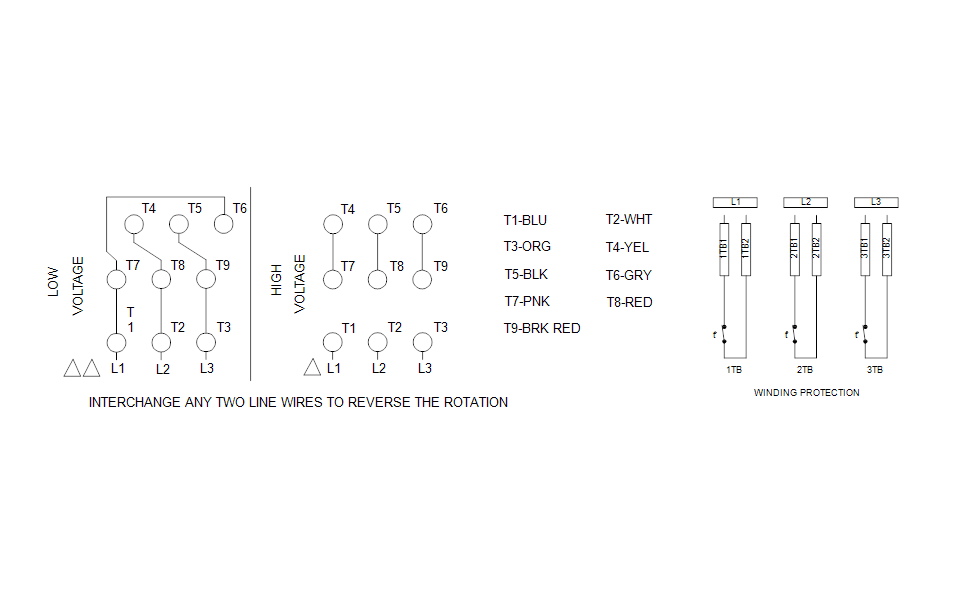

DWiring Diagram
