Grundfos 96512261 - CRN 20-16 S-P-A-E-HQQE | Multistage | SelfPriming | Centrifugal | Vertical | Horizontal

Save $12,485.76
GRUNDFOSSKU: 96512261

Price:
Sale price$13,526.24 Regular price$26,012.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

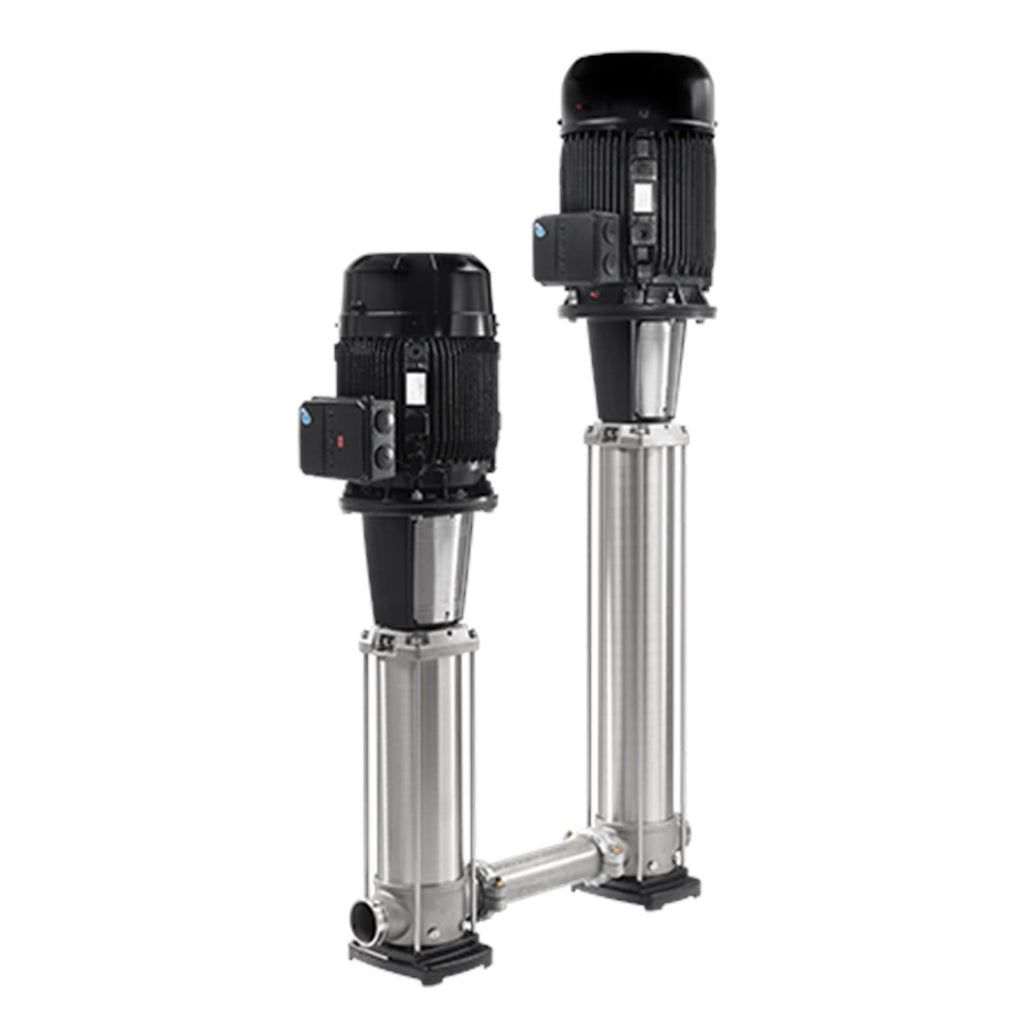

CRN 20-16 S-P-A-E-HQQE Vertical, non-self-priming, high-pressure multistage centrifugal pump with suction and discharge ports on the same level (in-line) enabling installation in a horizontal one-pipe system. The chamber stack is turned upside-down to ensure that the shaft seal is not affected by the high pump discharge pressure. Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling and easy service and access. Power transmission is via a split coupling. Pipe connection is via PJE (Victaulic®) couplings.

EAN 5700396600451
Applications Industrial applications
Approvals CE
Approvals for drinking water ACS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF300
Frequency converter NONE
Gross weight 481.0 lb
Housing Stainless steel
IE Efficiency class IE3
Impeller Stainless steel
Impellers 16
Insulation class (IEC 85) F
Liquid temperature range -22 .. 248 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 725 psi / 250 °F
Maximum ambient temperature 140 °F
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor efficiency at 1/2 load 93.2-92.2 %
Motor efficiency at 3/4 load 93.2-93.0 %
Motor efficiency at full load 1 92.4-92.4 %
Motor type 160LB
Net weight 392.0 lb
Number of poles 2
Power (P2) required by pump 18.5 kW
Power factor 1 0.89-0.85
Product family CRN 20-SF
Pump 18.5 kW
Pump housing Stainless steel
Pump speed on which pump data are based 2934 rpm
Pump version S
Pumped liquid Water
Rated current 34
Rated flow 92.5 US gpm
Rated head 628 ft
Rated power - P2 18.5 kW
Rated speed 2940-2950 rpm
Rated voltage 3 x 380-415D/660-690Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of connection 2 inch
Stages 16
Starting current 830-980 %
Type 160LB
Type of connection PJE
Version S

Motor Curves

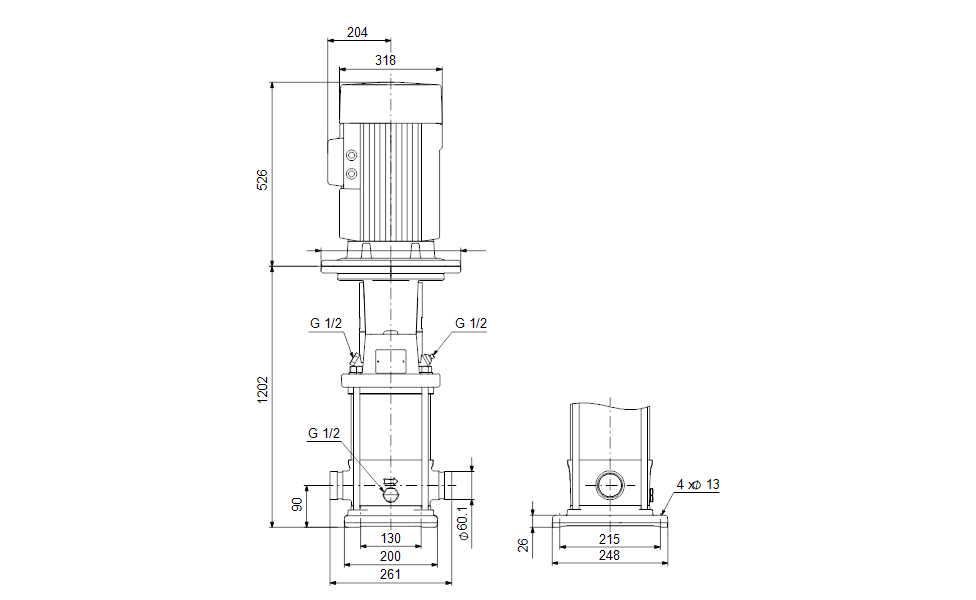

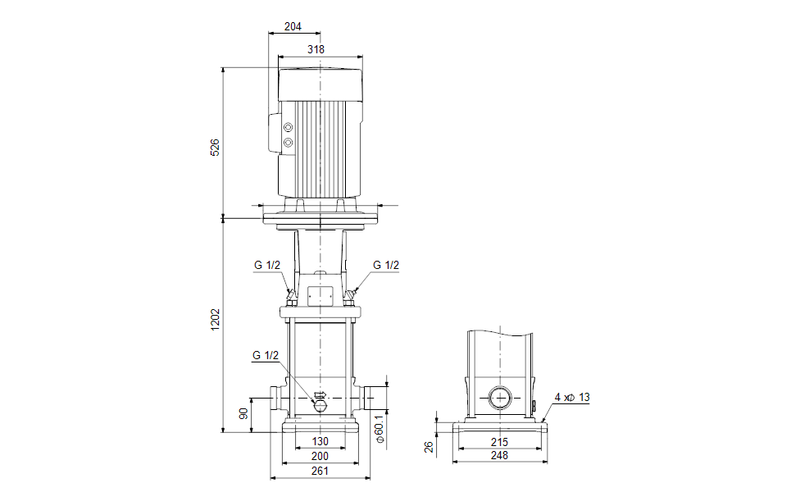

Dimensional Drawing

DWiring Diagram
