Grundfos 91127847 - CRN 1S-8 A-CA-T-E-HUBE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 91127847

Price:
Sale price$5,156.94
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 91127847 - CRN 1S-8 A-CA-T-E-HUBE is a vertical multistage centrifugal pump designed for industrial and commercial fluid handling. It suits service and repair applications where a compact, high-pressure inline multistage unit is required.

Key features

  • Manufactured by Grundfos for a range of industrial service applications
  • Vertical, multistage centrifugal design for high-pressure, in-line performance
  • Delivers reliable pressure boosting and efficient operation for system stability

Applications

Typical uses include high-pressure boosting, process water circulation, boiler feed, and industrial fluid transfer in commercial and industrial facilities.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 91127847

EAN 5700395829259
Approvals CURUS
Code for rubber E
Code for shaft seal HUBE
Connect code CA
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP54
Flange size for motor 56C
Frequency converter NONE
Gross weight 62.9 lb
IE efficiency 0.62
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) B
Liquid temperature range 32 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code T
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 220.5 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.62
Motor standard NEMA
Motor type BALDOR
Net weight 51.9 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 3443 rpm
Pump version A
Pumped liquid Water
Rated current 7.4/3.7 A
Rated flow 4.84 US gpm
Rated head 147.3 ft
Rated power - P2 0.37 kW
Rated speed 3450 rpm
Rated voltage 1 x 115/230 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.6
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 8
Standard NEMA
Type BALDOR
Type of connection FlexiClamp
Version A

Motor Curves

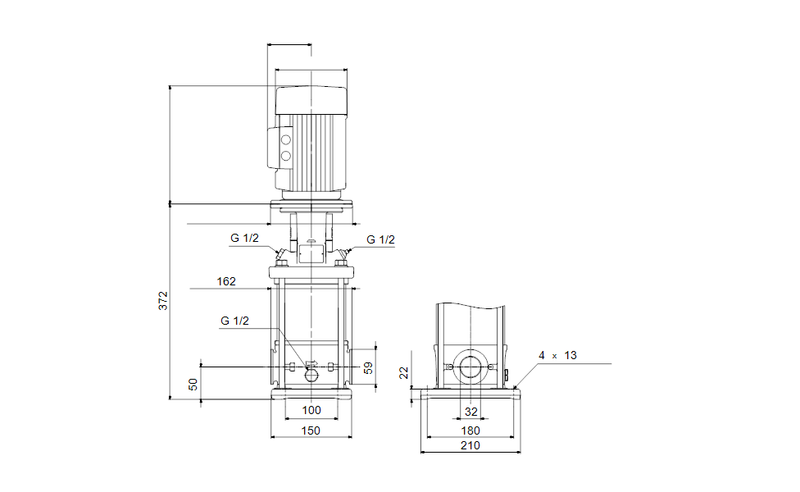

Dimensional Drawing

DWiring Diagram
