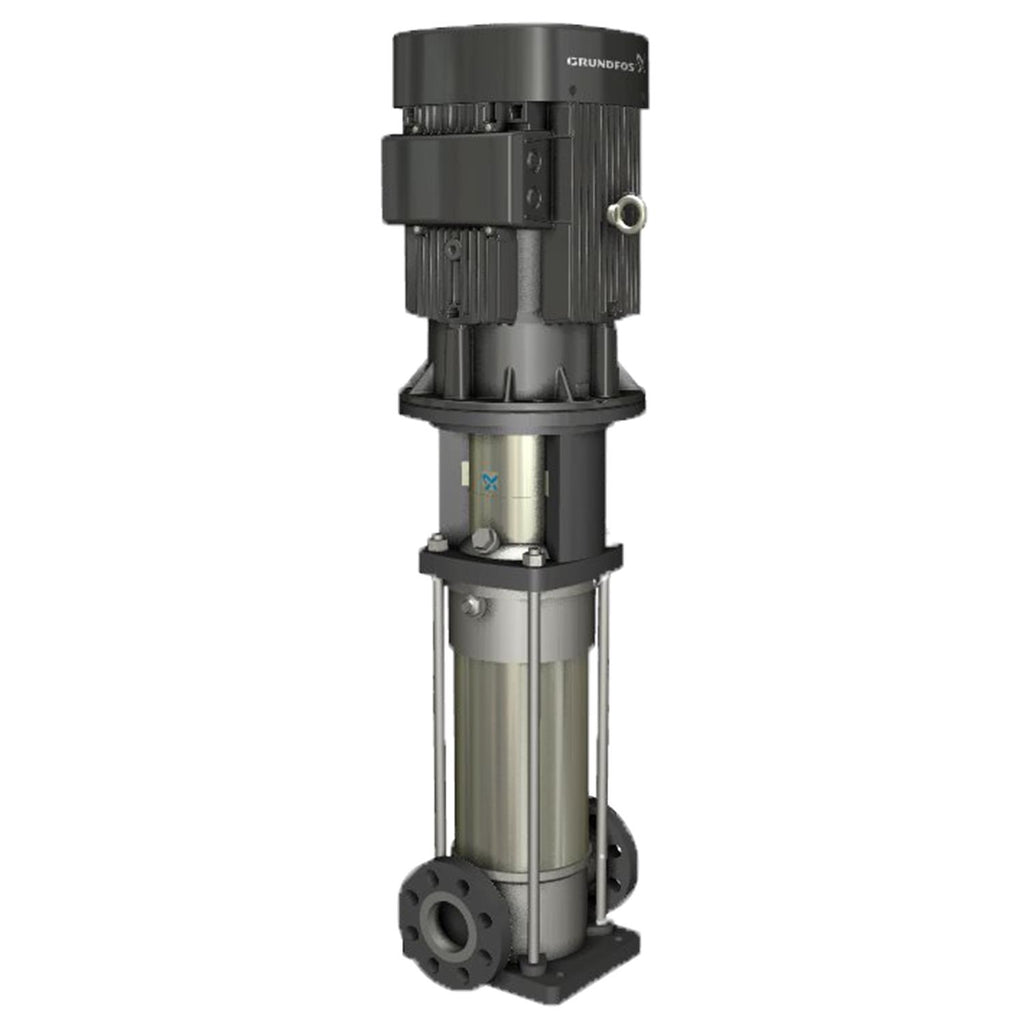

Grundfos 98394405 - CRN 1S-5 M-FGJ-A-E | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98394405

Price:
Sale price$12,677.78
or Call for most up to date lead times. (781) 281-8905

Description

The Grundfos 98394405 - CRN 1S-5 M-FGJ-A-E is a high-performance vertical multistage centrifugal pump designed for efficient fluid transfer in various applications. This inline pump features inlet and outlet ports positioned at the same level, ensuring seamless integration into your existing piping system. Constructed with high-grade stainless steel, the pump guarantees durability and resistance to corrosion, making it ideal for demanding environments.

With its combined DIN-ANSI-JIS flanges, installation is straightforward and compatible with a wide range of systems. The CRN 1S-5 M-FGJ-A-E is perfect for high-pressure applications, providing reliable performance and efficiency.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties, our team is here to help you find the perfect solution.

EAN 5711494257447
Approvals CE
Code for rubber E
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 62.6 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 140.1 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 51.6 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3425 rpm
Pump version M
Rated flow 4.84 US gpm
Rated head 95.48 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 5
Standard NEMA
Type of connection DIN / ANSI / JIS
Version M

Motor Curves

Dimensional Drawing
