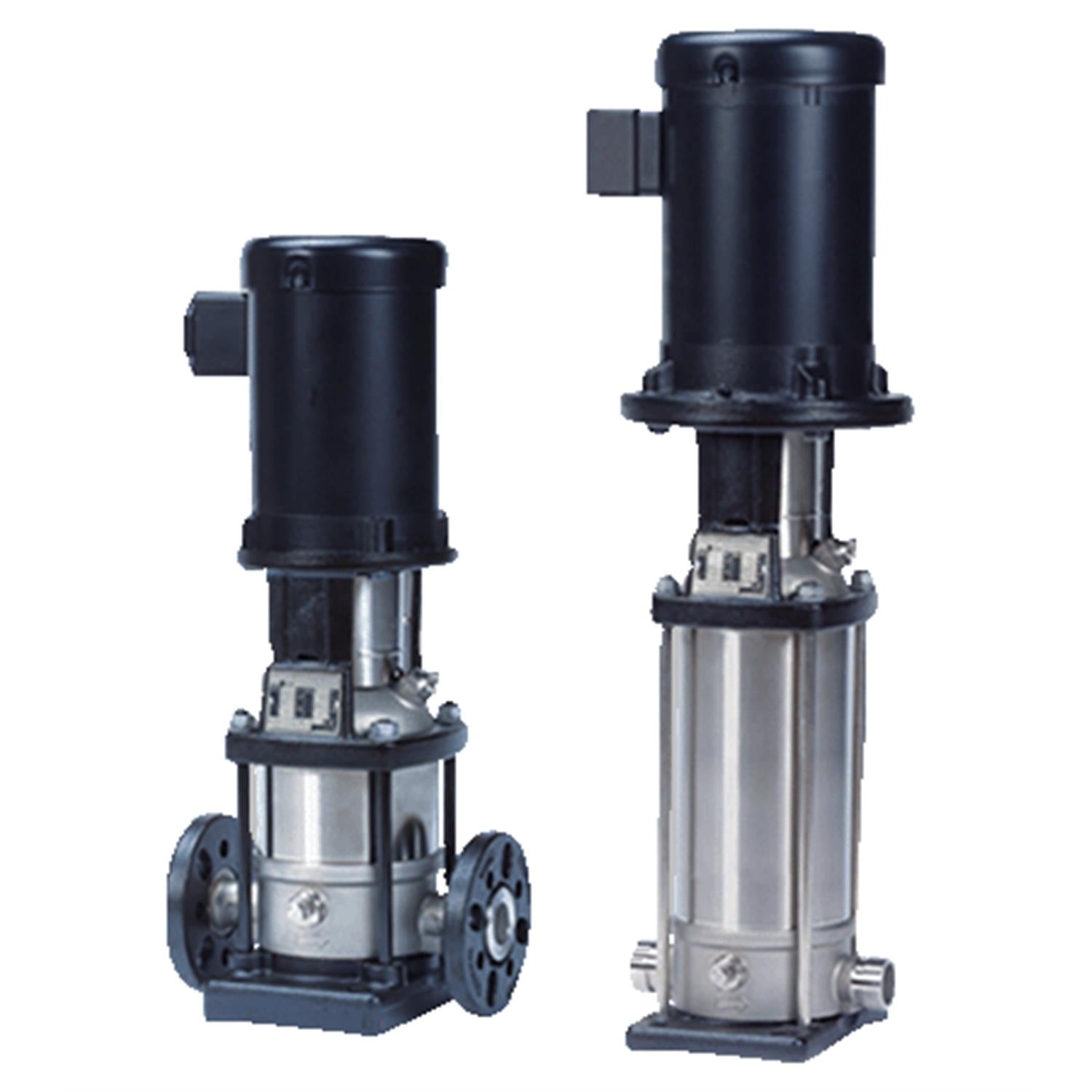

Grundfos 96081573 - CRN 1S-4 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $769.97
GRUNDFOSSKU: 96081573

Price:
Sale price$1,029.03 Regular price$1,799.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Introducing the Grundfos 96081573 - CRN 1S-4 A-P-A-E-HQQE, a reliable vertical multistage centrifugal pump designed for various industrial applications. Manufactured by Grundfos, this pump is engineered to deliver high performance and efficiency.

Key Features:

  • Vertical multistage design
  • Ideal for high-pressure applications
  • Robust construction for durability

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you are looking for a dependable pump solution, the Grundfos CRN series is an excellent choice.

Please ensure you match the exact model or SKU (96081573) before purchasing. If you have any questions or need assistance, feel free to call our team at (781) 281-8905.

EAN 5700395164077
Applications Industrial applications
Approvals CE
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PJE
Connection 2 DN 32
Connection 3 DN 32
Connection 4 PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 56C
Flange standard PJE
Frequency 60 HZ
Frequency converter NONE
Gross weight 37.3 lb
Impeller Stainless steel
Impellers 4
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 112.5 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 56C
Motor standard NEMA
n rpm 3425rpm
Net weight 26.3 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.33 HP
Pressure rating PN 50
Pressure rating for connection PN 50
Product family CRN 1-S
Pump 0.33 HP
Pump housing Stainless steel
Pump inlet DN 32
Pump outlet DN 32
Pump version A
Pumped liquid Water
Rated flow 4.84 US gpm
Rated flow 2 4.84 US gpm
Rated head 77.1 ft
Rated head 2 77.1 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft seal HQQE
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 4
Standard NEMA
Type of connection PJE
Version A

Motor Curves

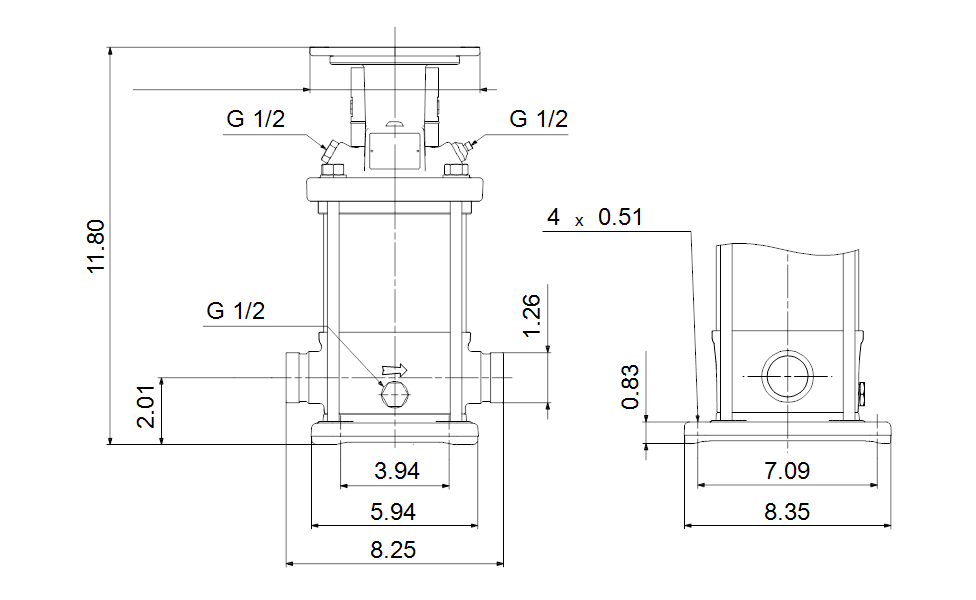

Dimensional Drawing
