Grundfos 98160176 - CRN 1S-3 A-FGJ-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $1,204.32
GRUNDFOSSKU: 98160176

Price:
Sale price$1,304.68 Regular price$2,509.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98160176 - CRN 1S-3 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 98160176 - CRN 1S-3 A-FGJ-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

This model is part of the CRN series, known for its robust construction and versatility. It is suitable for various service special applications and is categorized under centrifugal pumps, specifically designed for high-pressure and vertical multistage operations.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

For more information on specifications and applications, feel free to reach out to our team via chat or phone.

EAN 5711494595808
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Flange size for motor FT85
Frequency converter NONE
Gross weight 51.6 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 59.71 ft
Maximum operating pressure 25 bar
Model A
Motor FT85
Motor standard IEC
Net weight 45.8 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 2873 rpm
Pump version A
Pumped liquid Water
Rated flow 3.96 US gpm
Rated head 42 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 3
Standard IEC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

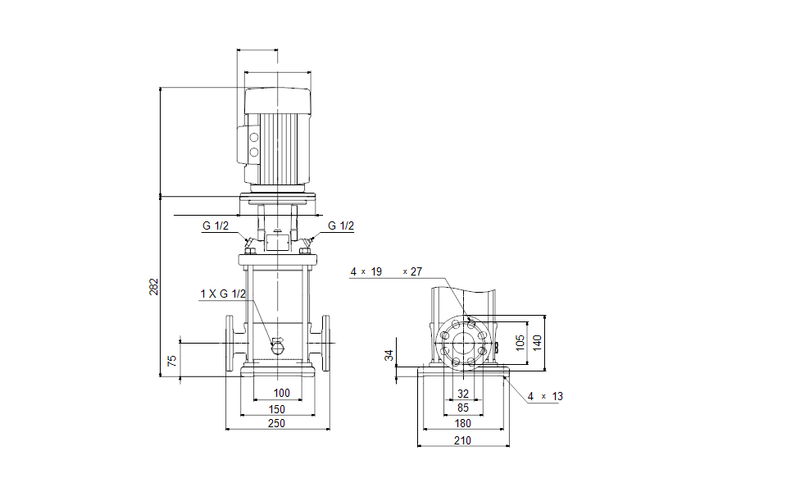

Dimensional Drawing
