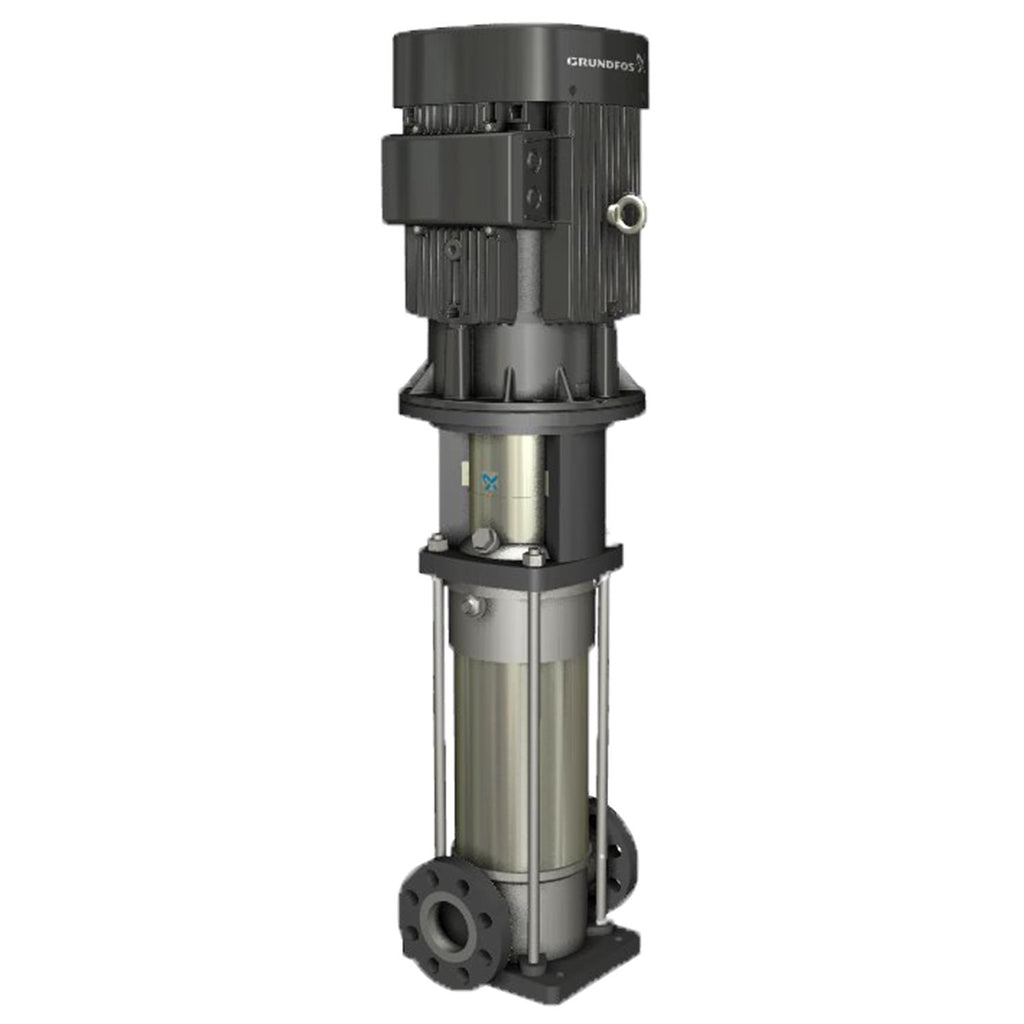

Grundfos 97688825 - CRN 1S-23 BM-FGJ-A-V | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 97688825

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

This Grundfos 97688825 is a CRN 1S-23 BM-FGJ-A-V multistage centrifugal vertical inline pump designed for industrial and commercial systems that require high-pressure, compact pumping solutions for clean liquids.

Key features

  • Vertical multistage centrifugal design with inline inlet and outlet for compact installation
  • High-grade stainless steel wetted parts for corrosion resistance and durability
  • Combined DIN-ANSI-JIS flange connections for flexible piping compatibility and simplified replacement

Applications

Typical uses include booster systems, pressure boosting, HVAC, water supply, and other high-pressure inline pumping applications where a vertical multistage pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97688825

EAN 5710621547673
Approvals CE
Code for rubber V
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 89.1 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 640.5 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor standard NEMA
Net weight 71.2 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3466 rpm
Pump version bm
Rated flow 4.84 US gpm
Rated head 424.9 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 23
Standard NEMA
Type of connection DIN / ANSI / JIS
Version bm
