Grundfos 97536327 - CRN 1S-2 O-CX-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 97536327

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos CRN 1S-2 O-CX-A-E-HQQE is a vertical multistage centrifugal inline pump designed for industrial and commercial systems that require compact, high-pressure liquid handling. Typical users include maintenance technicians and system integrators servicing process, HVAC, and water systems.

Key features

  • Vertical, multistage centrifugal design for compact high-pressure performance
  • Tri-Clamp connections and stainless steel wetted parts for sanitary and corrosion resistance
  • Inline configuration delivers space-saving installation and consistent flow for boosting and transfer tasks

Applications

Suitable for pressure boosting, boiler feed, clean fluid transfer, water treatment, and industrial process circulation where a compact, high-pressure inline multistage pump is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 97536327

EAN 5700318156059
Code for rubber E
Code for shaft seal HQQE
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor FT85
Frequency converter NONE
Gross weight 41.4 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 57.09 ft
Maximum operating pressure 25 bar
Model A
Motor FT85
Motor standard IEC
Net weight 35.5 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 3447 rpm
Pump version O
Pumped liquid Water
Rated flow 4.84 US gpm
Rated head 39.7 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 3
Standard IEC
Type of connection TriClamp
Version O

Motor Curves

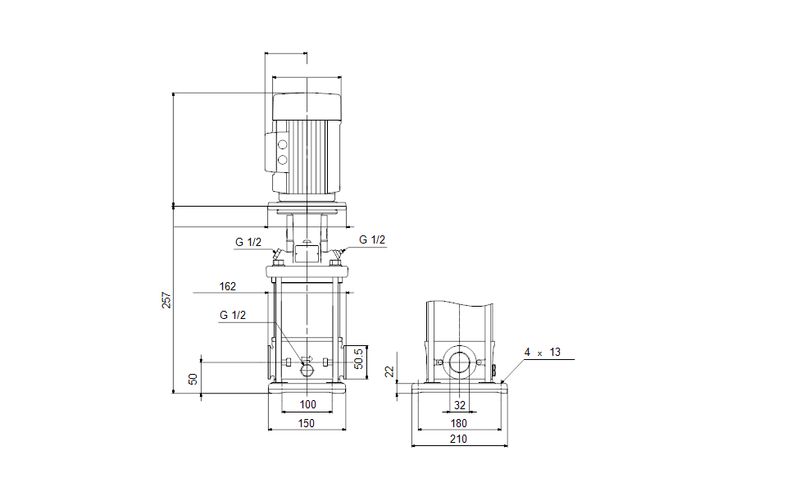

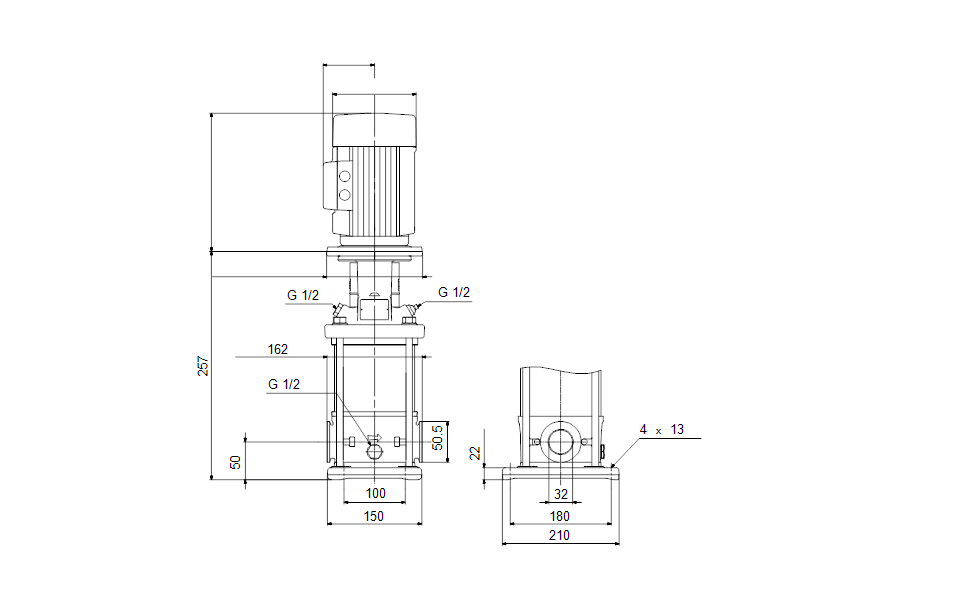

Dimensional Drawing
