Grundfos 96081775 - CRN 1S-19 A-FGJ-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

Save $1,889.19
GRUNDFOSSKU: 96081775

Price:
Sale price$2,524.81 Regular price$4,414.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 1S-19 A-FGJ-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges.

EAN 5700395162295
Applications Industrial applications
Approvals CE
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection DIN / ANSI / JIS
Connection 2 DN 25/32
Connection 3 DN 25/32
Connection 4 PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency 60 HZ
Frequency converter NONE
Gross weight 63.1 lb
Impeller Stainless steel
Impellers 19
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 531.9 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 56C
Motor standard NEMA
n rpm 3466rpm
Net weight 48.6 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 HP
Pressure rating PN 25
Pressure rating for connection PN 25
Product family CRN 1-S
Pump 1.5 HP
Pump housing Stainless steel
Pump inlet DN 25/32
Pump outlet DN 25/32
Pump version A
Pumped liquid Water
Rated flow 4.84 US gpm
Rated flow 2 4.84 US gpm
Rated head 351.7 ft
Rated head 2 351.7 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft seal HQQE
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 19
Standard NEMA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

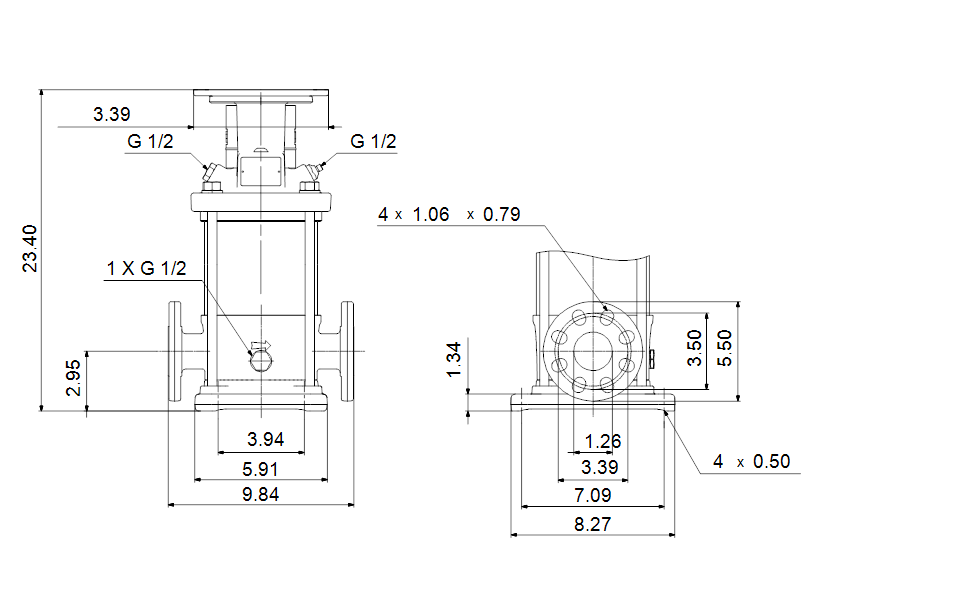

Dimensional Drawing
