Grundfos 98149981 - CRN 1S-12 M-FGJ-A-E | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98149981

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

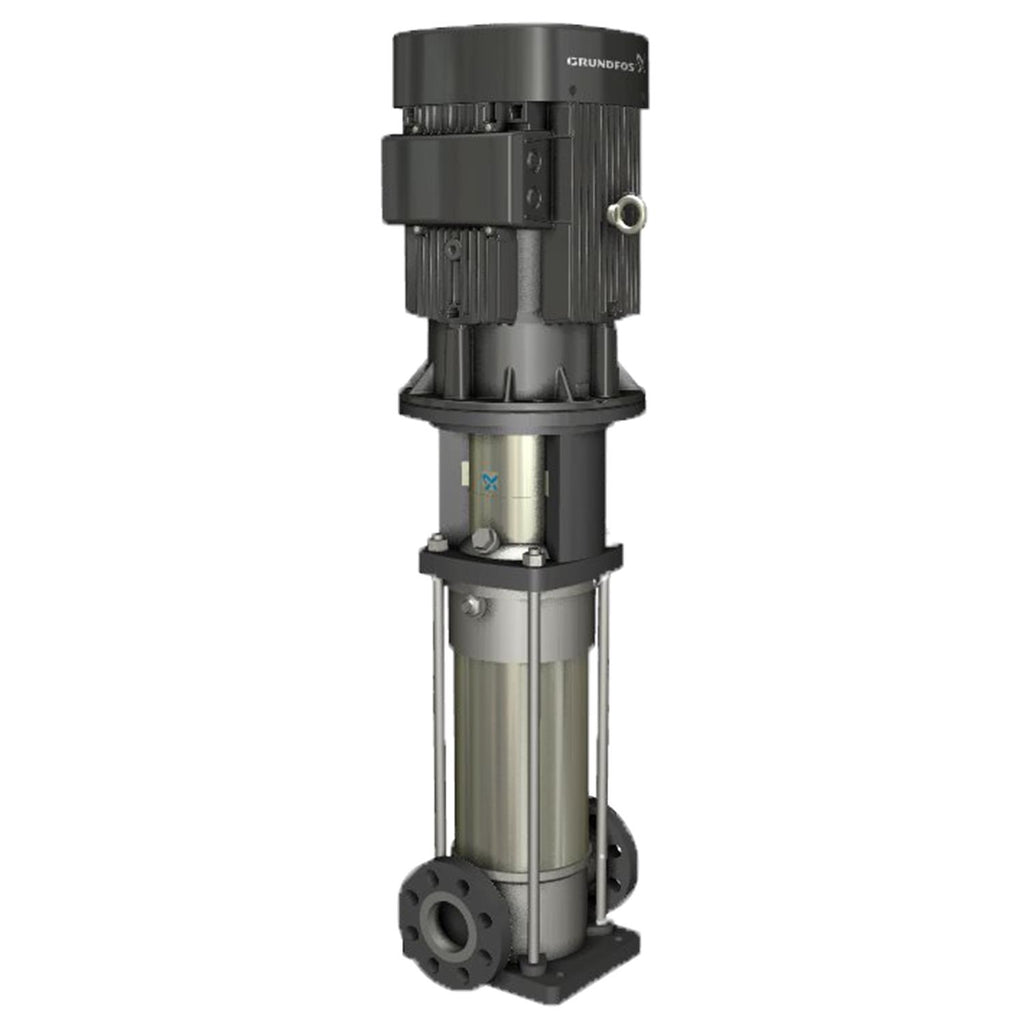

Grundfos 98149981 - CRN 1S-12 M-FGJ-A-E Vertical Multistage Centrifugal Pump

The Grundfos 98149981 - CRN 1S-12 M-FGJ-A-E is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CRN 1S-12 M-FGJ-A-E model ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, making it a versatile solution for your pumping needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you are having trouble finding the right item, our team is here to help!

EAN 5711490514858
Approvals CE
Code for rubber E
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency converter NONE
Gross weight 72.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 329.4 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor standard NEMA
Net weight 57.5 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3439 rpm
Pump version M
Rated flow 4.84 US gpm
Rated head 216.5 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 12
Standard NEMA
Type of connection DIN / ANSI / JIS
Version M

Motor Curves

Dimensional Drawing
