Grundfos 98160192 - CRN 1S-11 A-FGJ-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $1,848.96
GRUNDFOSSKU: 98160192

Price:
Sale price$2,003.04 Regular price$3,852.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98160192 - CRN 1S-11 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 98160192 - CRN 1S-11 A-FGJ-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for demanding environments.

This model is part of the CRN series, known for its versatility and durability. It is suitable for high-pressure applications and is designed to handle a wide range of fluids. The CRN 1S-11 A-FGJ-A-V-HQQV features a robust construction that ensures longevity and minimal maintenance, making it a cost-effective solution for your pumping needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 98160192. If you encounter any difficulties in identifying the right item, our team is here to help you navigate your options.

EAN 5711494596034
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Flange size for motor FT85
Frequency converter NONE
Gross weight 58.8 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 211.6 ft
Maximum operating pressure 25 bar
Model A
Motor FT85
Motor standard IEC
Net weight 52.5 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.37 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.37 kW
Pump speed on which pump data are based 2873 rpm
Pump version A
Pumped liquid Water
Rated flow 3.96 US gpm
Rated head 142.7 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 11
Standard IEC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

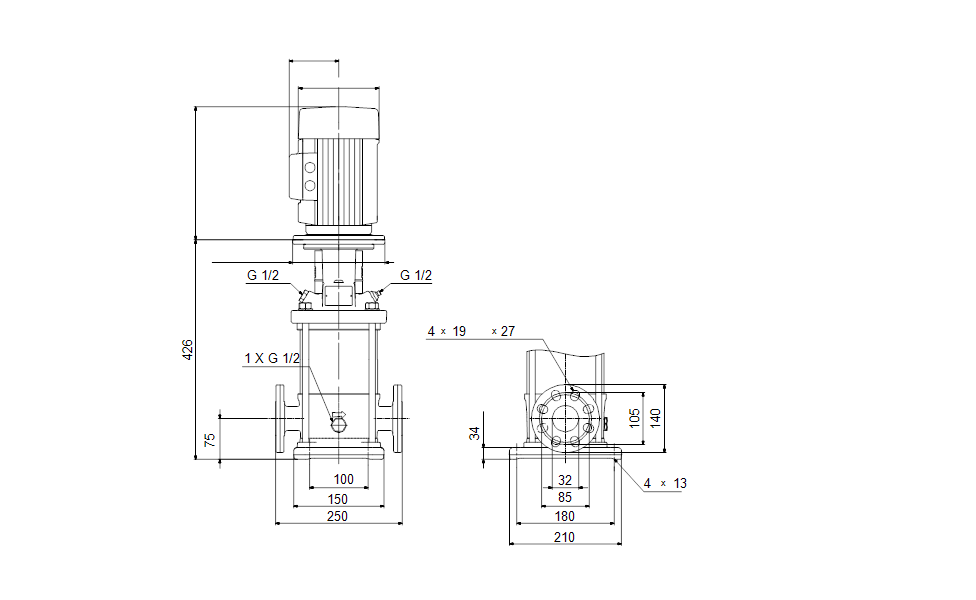

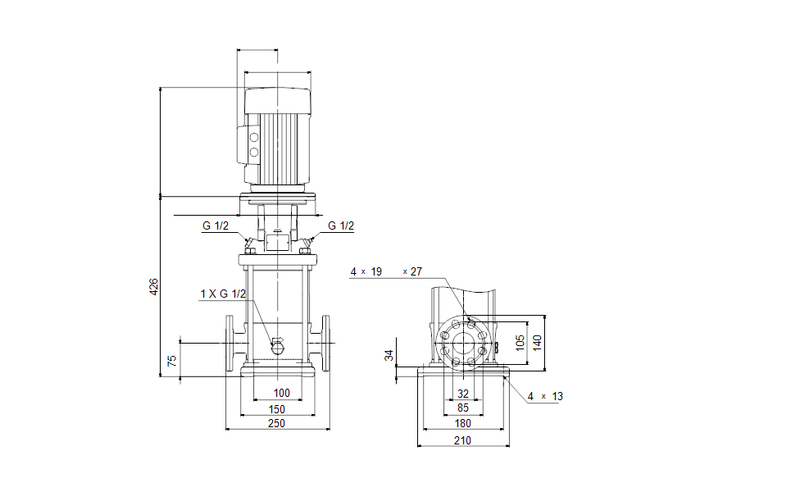

Dimensional Drawing
