Grundfos 99400477 - CRN 185-6 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $44,796.19
GRUNDFOSSKU: 99400477

Price:
Sale price$59,867.81 Regular price$104,664.00
Build to order – stocked components, typically available in 66 days
or Call for most up to date lead times. (781) 281-8905

Description

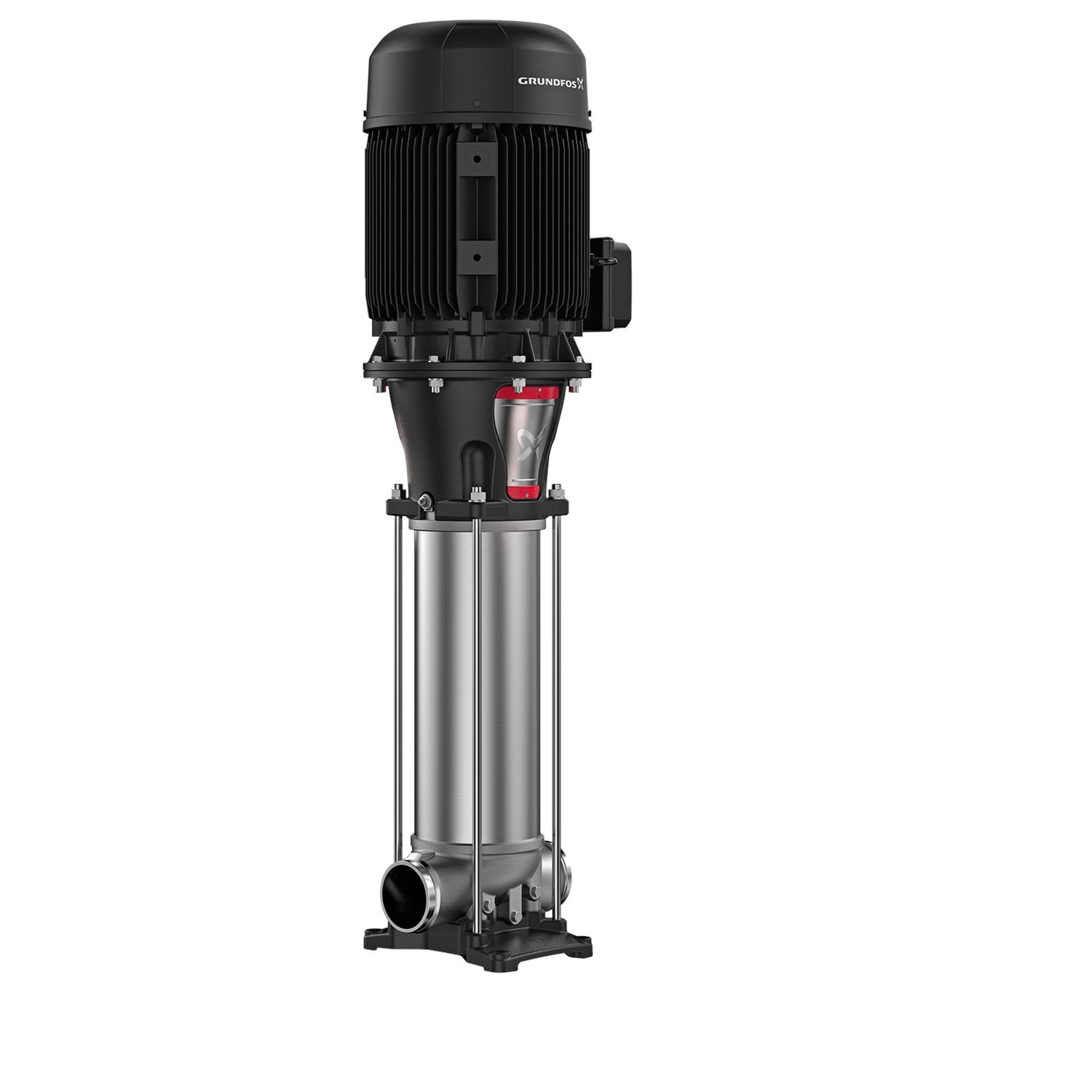

Grundfos 99400477 - CRN 185-6 A-P-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 99400477 - CRN 185-6 A-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CRN series is suitable for both commercial and industrial environments. This model features multiple stages to enhance pressure capabilities, ensuring optimal flow rates and energy efficiency.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5713828500953
Applications Industrial applications
Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Bearing 1 WC/WC
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PJE
Connection 2 800 psi
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 449TSD
Flange standard PJE
Frequency 60 HZ
Frequency converter NONE
Gross weight 955.0 lb
Impeller Stainless steel
Impellers 6
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material certified according to European standards
Material code A
Material Pricing Group 33
Max pressure at stated temp 363 psi / 250 °F
Maximum head 1283 ft
Maximum operating pressure 580.15 psi
Maximum permissible operating pressure 40bar
Model A
Motor 449TSD
Motor standard NEMA
n rpm 3576rpm
Net weight 697.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 300 HP
Pressure rating 800 psi
Pressure rating for connection 800 psi
Product family CRN 185
Pump 300 HP
Pump housing Stainless steel
Pump inlet 8
Pump outlet 8
Pump version A
Pumped liquid Water
Rated flow 980 US gpm
Rated flow 2 980 US gpm
Rated head 965.3 ft
Rated head 2 965.3 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft seal HQQE
Stages 6
Standard NEMA
Support bearing Graflon
Thrust handling device SiC/WC
Type of connection PJE
Version A

Motor Curves

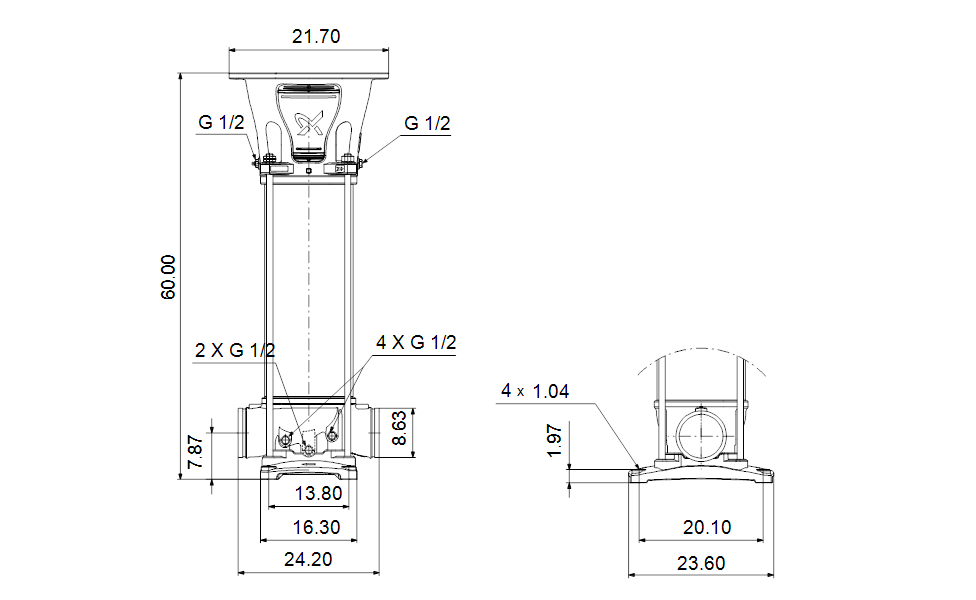

Dimensional Drawing
