Grundfos 99971239 - CRN 185-5-4 A-P-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

Save $37,241.99
GRUNDFOSSKU: 99971239

Price:
Sale price$49,772.01 Regular price$87,014.00
Build to order – stocked components, typically available in 70 business days
or Call for most up to date lead times. (781) 281-8905

Description

CRN 185-5-4 A-P-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A built-in thrust-handling device absorbs hydraulic axial forces which enables the use of a standard motor. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings.

Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection 800 psi
Curve tolerance ISO9906:2012 3B
Flange size for motor 447TSD
Frequency converter NONE
Gross weight 1040.0 lb
Impeller Stainless steel
Impellers 4
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material certified according to European standards
Material code A
Maximum head 954.8 ft
Maximum operating pressure 580.15 psi
Model A
Motor 447TSD
Motor standard NEMA
n rpm 3574rpm
Net weight 785.0 lb
Number of reduced-diameter impellers 4
Power (P2) required by pump 201 HP
Pressure rating for connection 800 psi
Pump 201 HP
Pump version A
Rated flow 980 US gpm
Rated head 708.4 ft
Rubber E
Shaft Product name:CRN 185-5-4 A-P-A-E-HQQE
Shaft seal HQQE
Stages 5
Standard NEMA
Support bearing Graflon
Thrust handling device Y
Type of connection PJE
Version A

Motor Curves

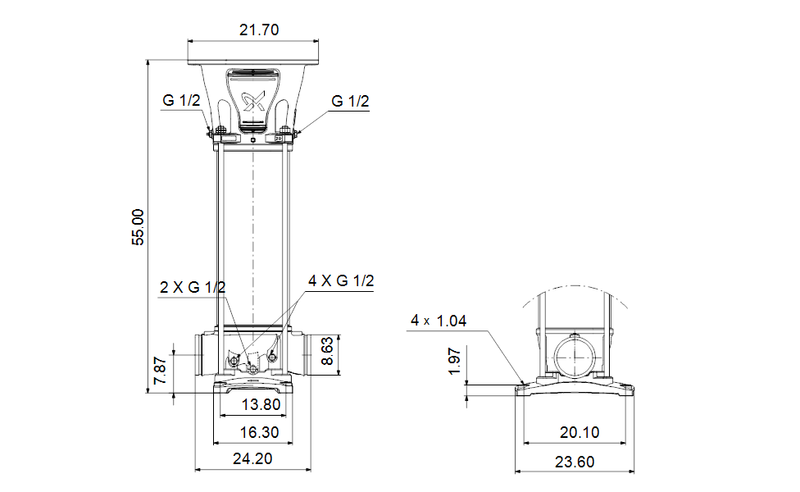

Dimensional Drawing
