Description

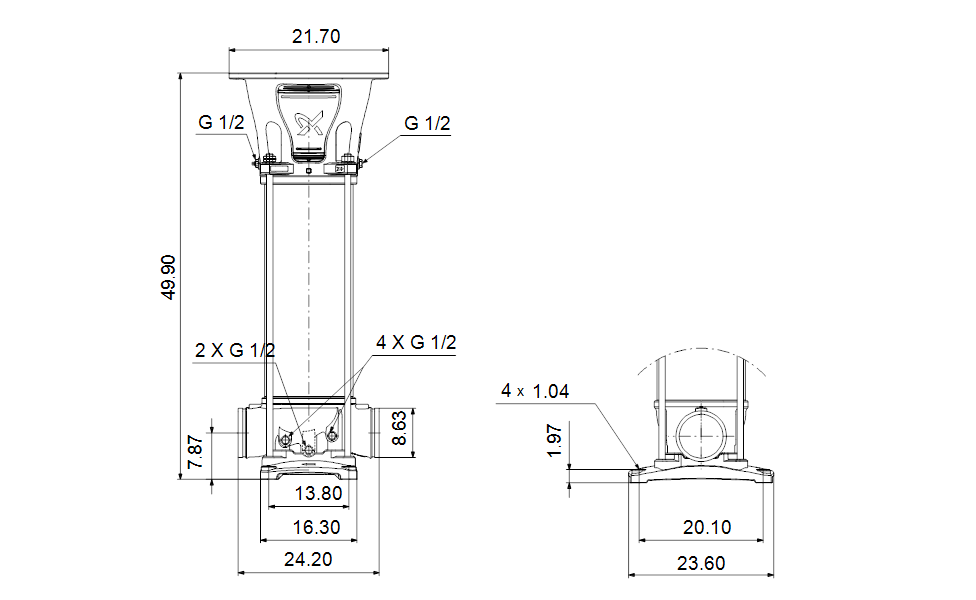

CRN 185-4-3 A-P-A-V-HQQV | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A built-in thrust-handling device absorbs hydraulic axial forces which enables the use of a standard motor. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings.
EAN
5713828501097
Applications
Industrial applications
Material Pricing Group
33
Code for rubber
V
Material code
A
Density
62.29 lb/ft³
Max pressure at stated temp
363 psi / 194 °F
Maximum operating pressure
362.59 psi
Support bearing
Graflon
Selected liquid temperature
68 °F
Type of connection
PJE
Bearing 1
WC/WC
Pressure rating
800 psi
Flange size for motor
447TSD
Pumped liquid
Water
Pump outlet
8
Pump inlet
8
Connect code
P
Liquid temperature range
-4 .. 194 °F
Net weight
633.0 lb
Gross weight
889.0 lb
Power (P2) required by pump
201 HP
Pressure rating for connection
800 psi
Frequency converter
NONE
Stages
4
Rated flow
980 US gpm
Flange standard
PJE
Model
A
Version
A
Motor
447TSD
Rubber
V
Maximum head
771.7 ft
Approvals for drinking water
NSF/ANSI 372
Motor standard
NEMA
Material certified according to
European standards
Thrust handling device
SiC/WC
Rated head
574.5 ft
Curve tolerance
ISO9906:2012 3B
Impellers
4
Connection
PJE
Impeller
Stainless steel
Code for shaft seal
HQQV
Pump housing
Stainless steel
Number of reduced-diameter impellers
3
Pump
201 HP
Low NPSH
N
Standard
NEMA
Pump version
A
