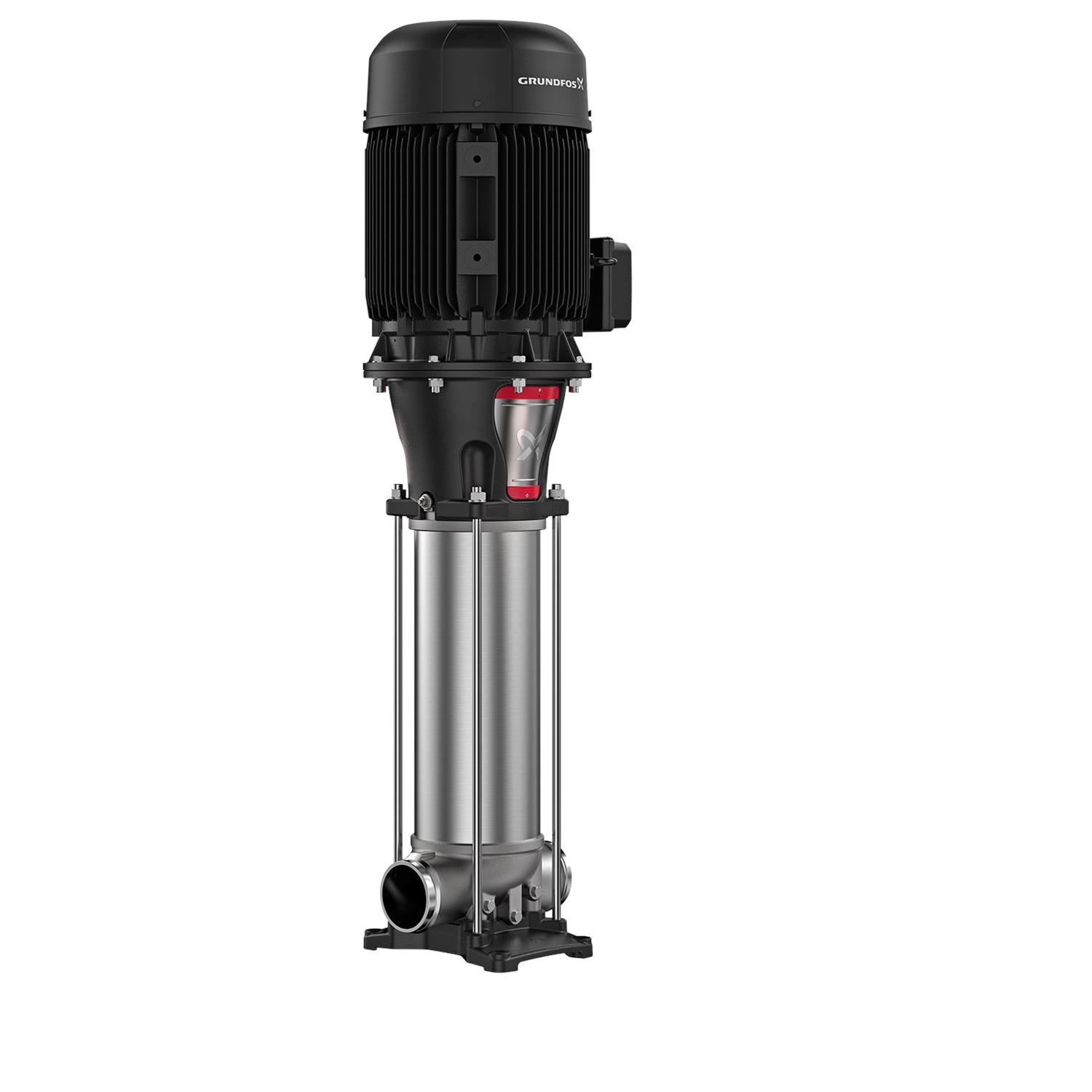

Grundfos 99971186 - CRN 185-3-1 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $27,589.74
GRUNDFOSSKU: 99971186

Price:
Sale price$36,872.26 Regular price$64,462.00
Build to order – stocked components,typically available in 70 business days
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99971186 - CRN 185-3-1 A-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability in demanding environments.

With its advanced design, the CRN 185-3-1 A-P-A-E-HQQE model is ideal for high-pressure applications, making it a perfect choice for those seeking robust performance. This pump is part of the CRN series, which is known for its versatility and adaptability in various settings.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before making a purchase, we recommend checking your current pump for the exact part number or SKU that matches the 99971186. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection 800 psi
Curve tolerance ISO9906:2012 3B
Flange size for motor 445TSD
Frequency converter NONE
Gross weight 959.0 lb
Impeller Stainless steel
Impellers 1
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material certified according to European standards
Material code A
Maximum head 615.5 ft
Maximum operating pressure 362.59 psi
Model A
Motor 445TSD
Motor standard NEMA
n rpm 3577rpm
Net weight 701.0 lb
Number of reduced-diameter impellers 1
Power (P2) required by pump 150 HP
Pressure rating for connection 800 psi
Pump 150 HP
Pump version A
Rated flow 980 US gpm
Rated head 461 ft
Rubber E
Shaft Product name:CRN 185-3-1 A-P-A-E-HQQE
Shaft seal HQQE
Stages 3
Standard NEMA
Support bearing Graflon
Thrust handling device Y
Type of connection PJE
Version A

Motor Curves

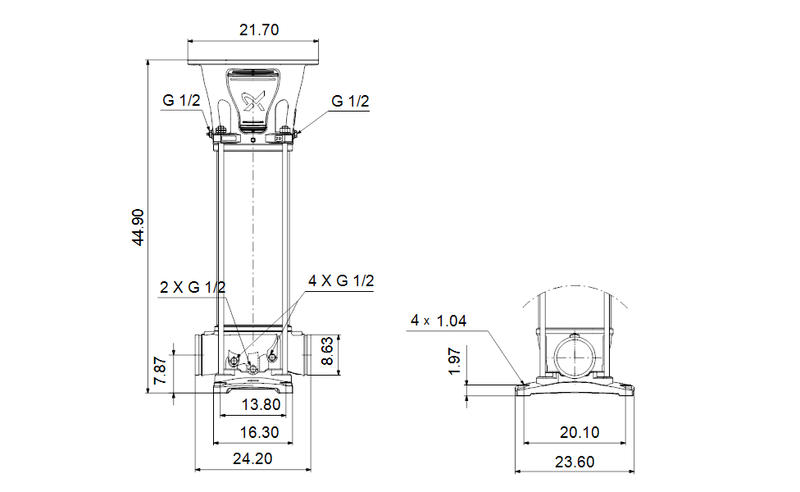

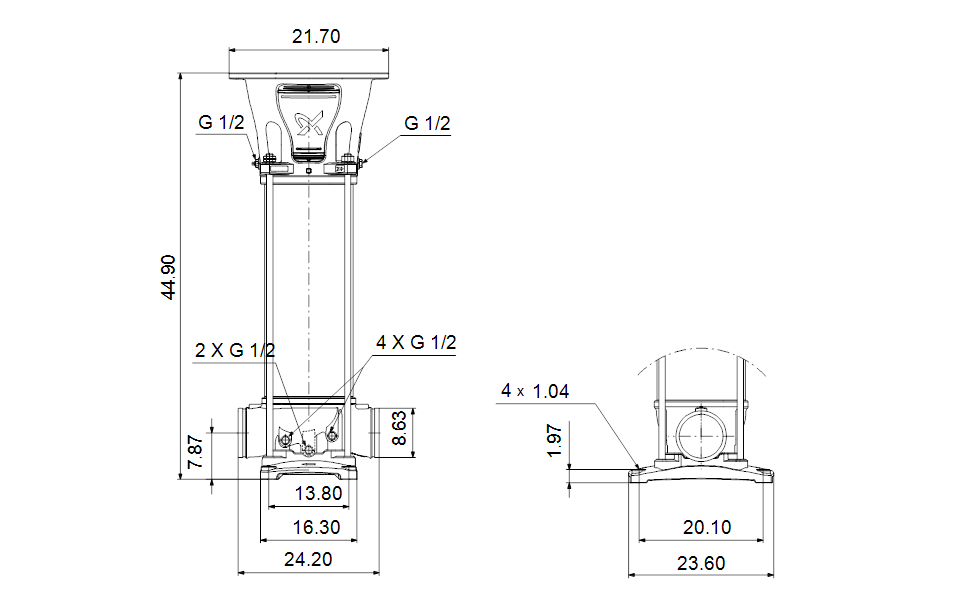

Dimensional Drawing
