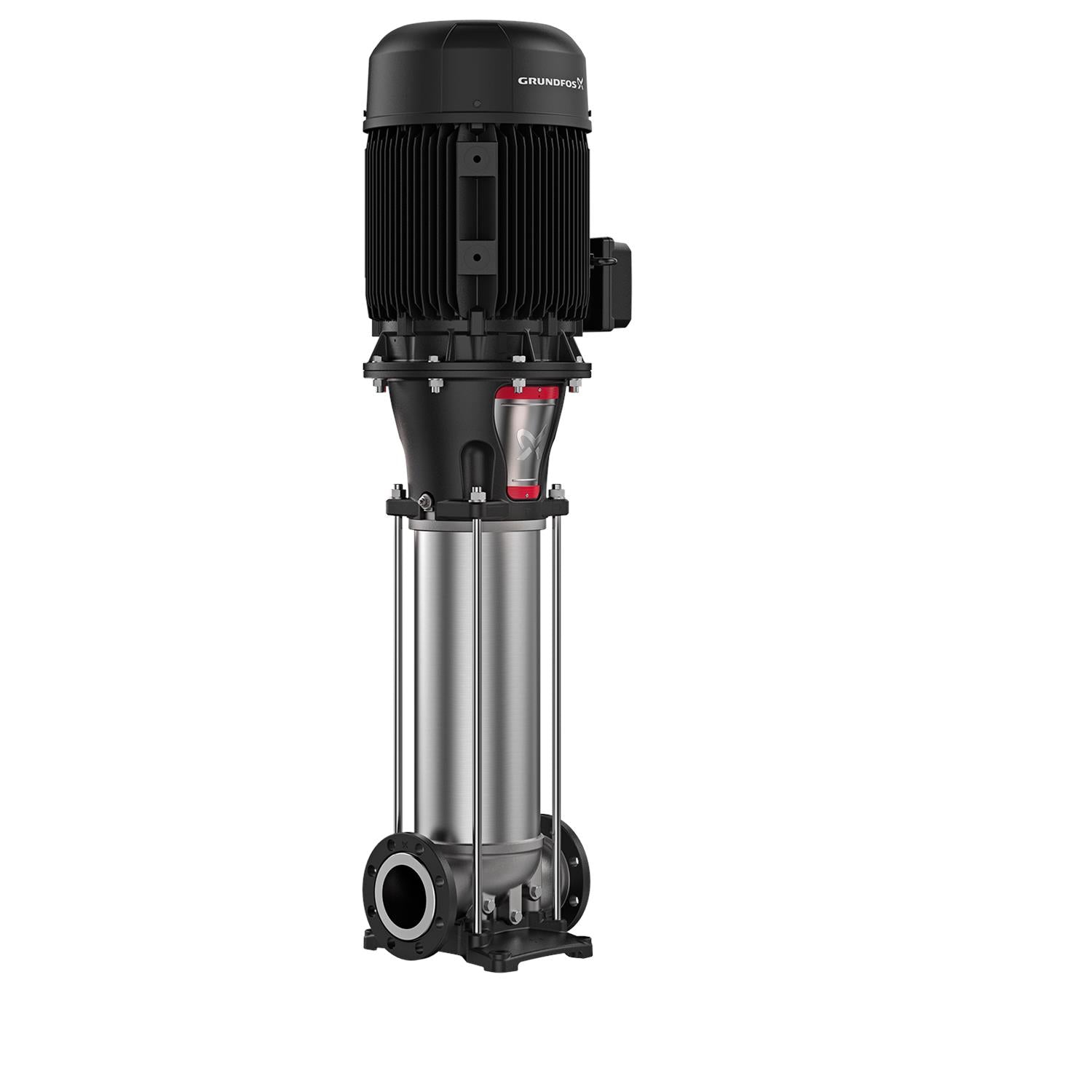

Grundfos 99400454 - CRN 185-2 A-G-A-V-HQQV

Save $22,358.40
GRUNDFOSSKU: 99400454

Price:
Sale price$24,221.60 Regular price$46,580.00
Build to order – stocked components, typically available in 84 days
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99400454 - CRN 185-2 A-G-A-V-HQQV This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5713828500403
Applications Industrial applications
Material Pricing Group 33
Code for rubber V
Material code A
Density 62.29 lb/ft³
Max pressure at stated temp 232 psi / 194 °F
Maximum operating pressure 232.06 psi
Support bearing Graflon
Selected liquid temperature 68 °F
Type of connection ANSI
Bearing 1 WC/WC
Pressure rating 150 lb
Flange size for motor 405TSD
Pumped liquid Water
Pump outlet 8
Pump inlet 8
Connect code G
Liquid temperature range -4 .. 194 °F
Net weight 606.0 lb
Gross weight 864.0 lb
Power (P2) required by pump 100 HP
Pressure rating for connection 150 lb
Frequency converter NONE
Stages 2
Rated flow 980 US gpm
Flange standard ANSI
Model A
Version A
Motor 405TSD
Rubber V
Maximum head 429.8 ft
Approvals for drinking water NSF/ANSI 372
Motor standard NEMA
Material certified according to European standards
Thrust handling device SiC/WC
Rated head 321.5 ft
Curve tolerance ISO9906:2012 3B
Impellers 2
Connection ANSI
Impeller Stainless steel
Code for shaft seal HQQV
Pump housing Stainless steel
Number of reduced-diameter impellers 0
Pump 100 HP
Low NPSH N
Standard NEMA
Pump version A

Motor Curves

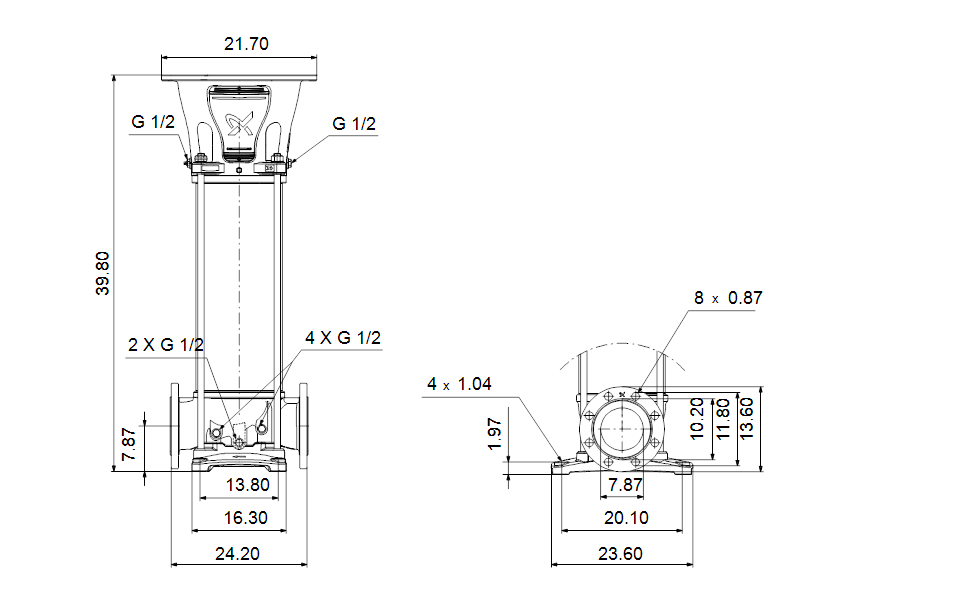

Dimensional Drawing
