Description

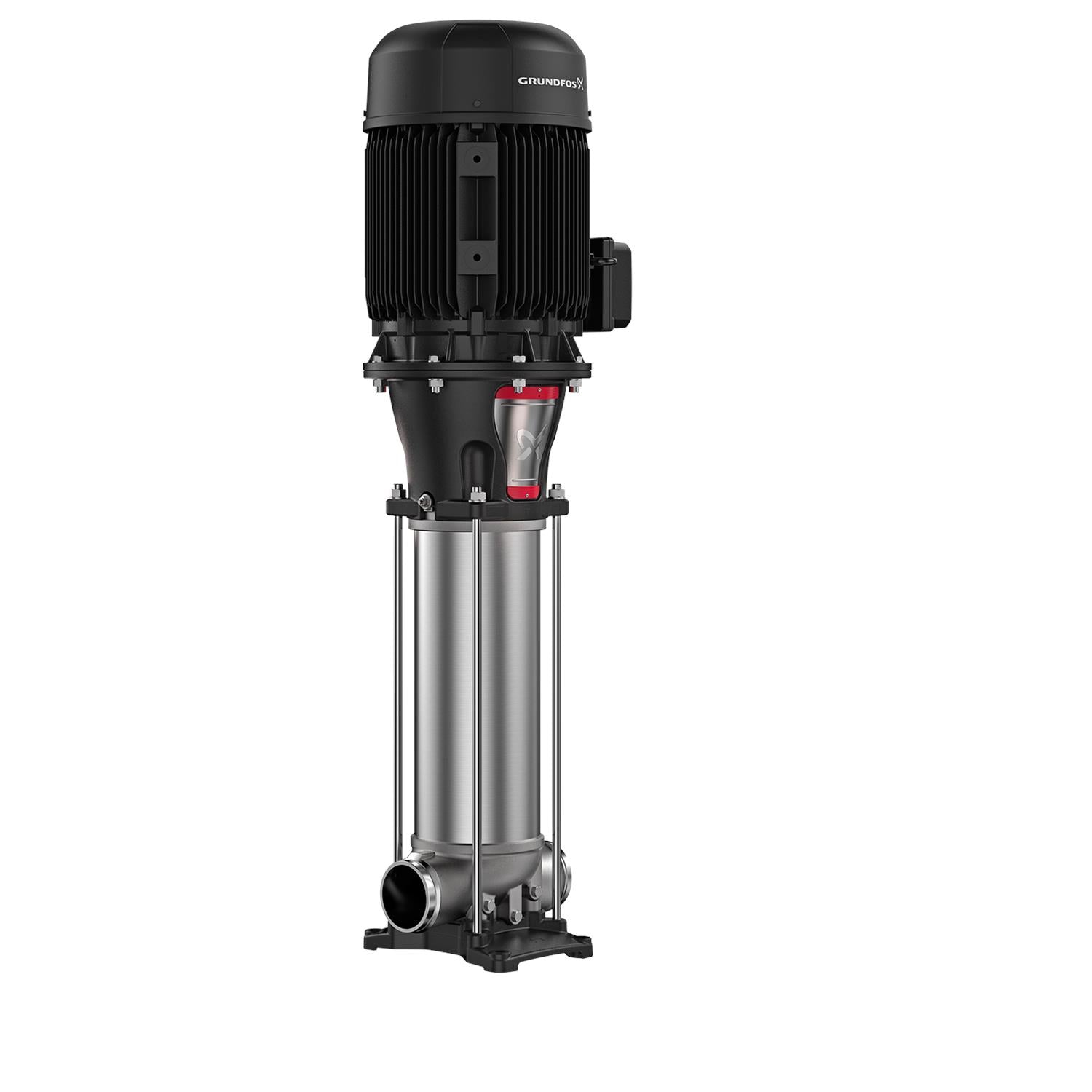

Grundfos 99971164 - CRN 185-2-1 A-P-A-E-HQQE This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.
Code for rubber
E
Material code
A
Maximum operating pressure
362.59 psi
Support bearing
Graflon
Type of connection
PJE
Bearing 1
Graflon
Flange size for motor
405TSD
Connect code
P
Liquid temperature range
-4 .. 248 °F
Net weight
662.0 lb
Gross weight
917.0 lb
Power (P2) required by pump
100 HP
Pressure rating for connection
800 psi
Shaft
Product name:CRN 185-2-1 A-P-A-E-HQQE
Frequency converter
NONE
Stages
2
Rated flow
980 US gpm
Model
A
Version
A
Motor
405TSD
Rubber
E
Maximum head
401.6 ft
Approvals for drinking water
NSF/ANSI 61,NSF/ANSI 372
Motor standard
NEMA
Material certified according to
European standards
Thrust handling device
Y
Rated head
298.2 ft
Curve tolerance
ISO9906:2012 3B
Impellers
1
Connection
800 psi
Impeller
Stainless steel
Code for shaft seal
HQQE
Number of reduced-diameter impellers
1
Pump
100 HP
Low NPSH
N
Standard
NEMA
Pump version
A
Motor Curves
