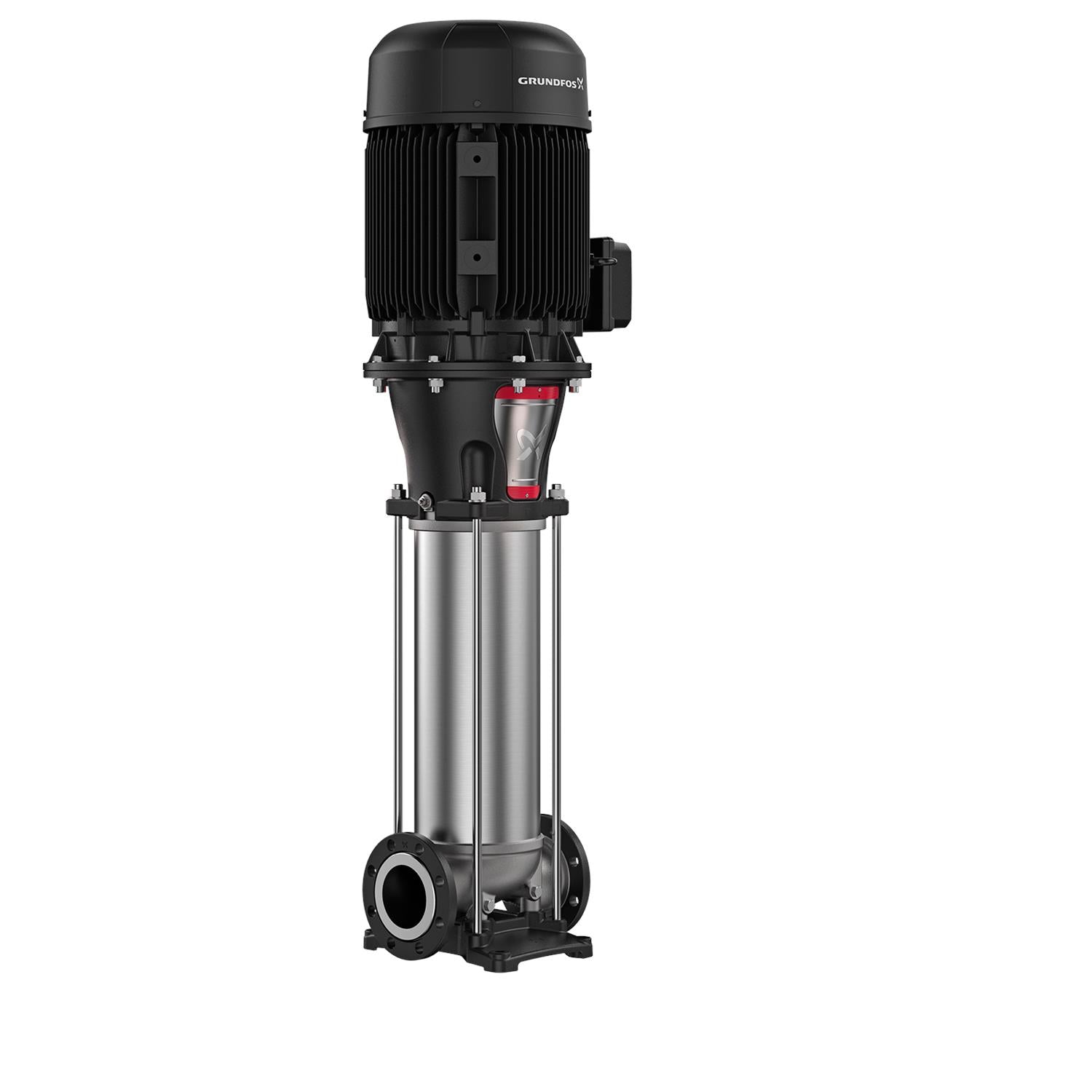

Grundfos 99400452 - CRN 185-1 A-G-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

Save $11,123.29
GRUNDFOSSKU: 99400452

Price:
Sale price$14,865.71 Regular price$25,989.00
Build to order – stocked components, typically available in 66 days
or Call for most up to date lead times. (781) 281-8905

Description

CRN 185-1 A-G-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.

EAN 5713828500366
Applications Industrial applications
Approvals for drinking water NSF/ANSI 372
Bearing 1 WC/WC
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection ANSI
Connection 2 150 lb
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange size for motor 326TSC
Flange standard ANSI
Frequency 60 HZ
Frequency converter NONE
Gross weight 803.0 lb
Impeller Stainless steel
Impellers 1
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material certified according to European standards
Material code A
Material Pricing Group 33
Max pressure at stated temp 232 psi / 194 °F
Maximum head 215.6 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model A
Motor 326TSC
Motor standard NEMA
n rpm 3541rpm
Net weight 545.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 50 HP
Pressure rating 150 lb
Pressure rating for connection 150 lb
Product family CRN 185
Pump 50 HP
Pump housing Stainless steel
Pump inlet 8
Pump outlet 8
Pump version A
Pumped liquid Water
Rated flow 980 US gpm
Rated flow 2 980 US gpm
Rated head 159.1 ft
Rated head 2 159.1 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Shaft seal HQQV
Stages 1
Standard NEMA
Support bearing Graflon
Thrust handling device N
Type of connection ANSI
Version A

Motor Curves

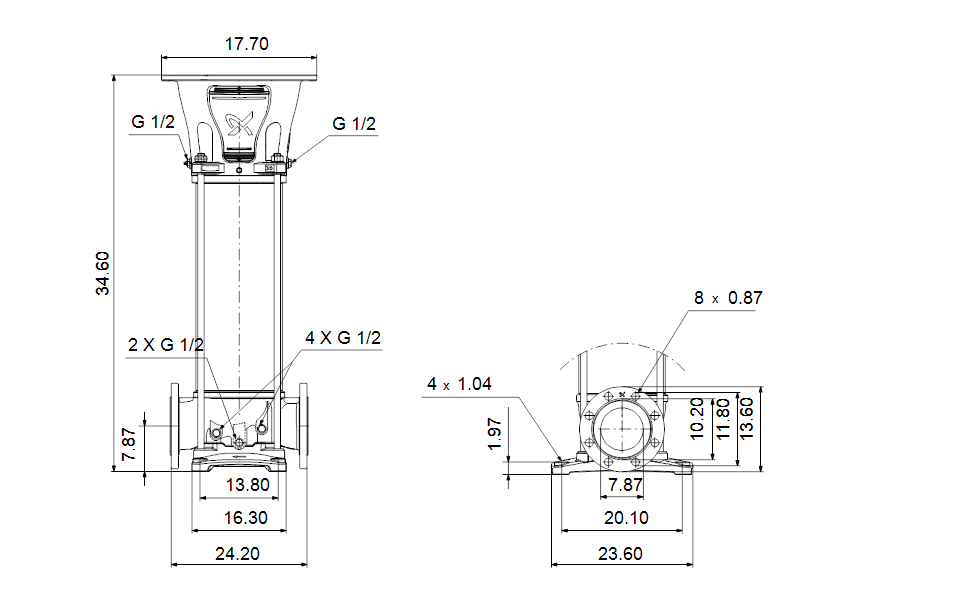

Dimensional Drawing
