Grundfos 99505320 - CRN 155-3-1 A-G-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99505320

Price:
Sale price$92,250.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 155-3-1 A-G-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A built-in thrust-handling device absorbs hydraulic axial forces which enables the use of a standard motor. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Wear parts in the shaft seal are available as service kits and can be replaced without having to renew the complete shaft seal. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5713830186985
Applications Industrial applications
Actual impeller diameter 6.64 in
Bearing 1 WC/WC
Bearing 2 Graflon
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection 300 lb
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.64 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Flange size for motor 405TSD
Frequency converter NONE
Full load SF current 126/63 A
Gross weight 2400.0 lb
IE efficiency IE3 95%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 1
Insulation class (IEC 85) F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material certified according to European standards
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 494.4 ft
Maximum operating pressure 40 bar
Model A
Motor 405TSD
Motor efficiency at 1/2 load 0.946
Motor efficiency at 3/4 load 0.951
Motor efficiency at full load 1 0.95
Motor standard NEMA
Motor type BALDOR
Net weight 1920.0 lb
Number of poles 2
Number of reduced-diameter impellers 1
Power (P2) required by pump 75 kW
Power factor 1 0.9
Pressure rating for connection 300 lb
Product family CRN 155
Pump 75 kW
Pump speed on which pump data are based 3569 rpm
Pump version A
Pumped liquid Water
Rated current 110 A
Rated flow 820 US gpm
Rated head 349.1 ft
Rated power - P2 75 kW
Rated speed 3565 rpm
Rated voltage 3 x 460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 6 inch
Size of outlet connection 6 inch
Stages 3
Standard NEMA
Support bearing Graflon
Thrust handling device Y
Type BALDOR
Type of connection ANSI
Version A

Motor Curves

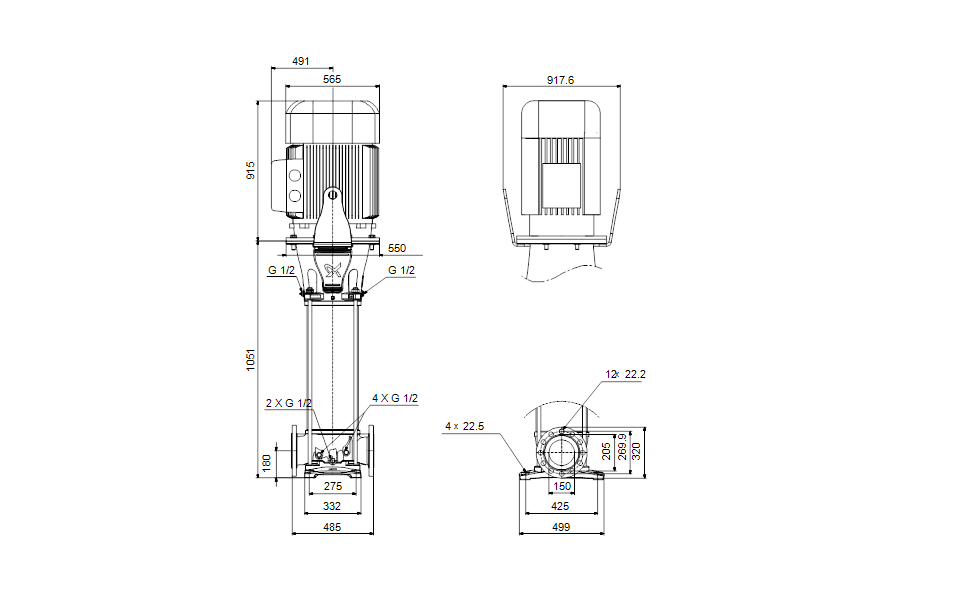

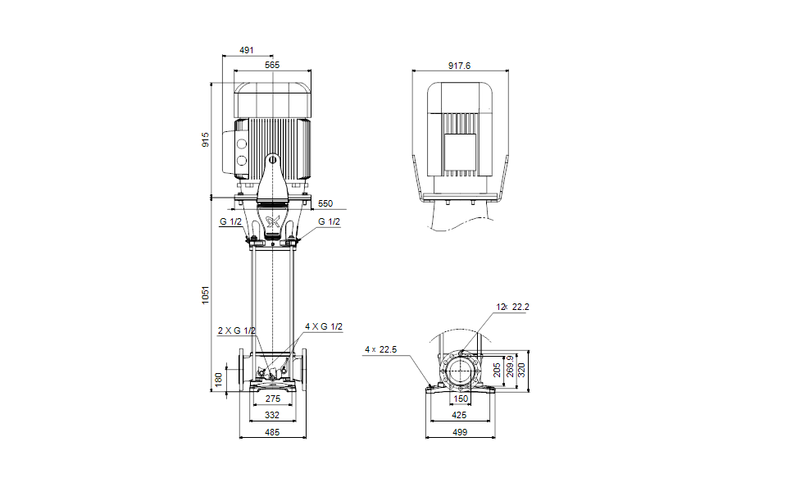

Dimensional Drawing

DWiring Diagram
