Grundfos 92801442 - CRN 155-3-1 B-G-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92801442

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92801442 - CRN 155-3-1 B-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92801442 - CRN 155-3-1 B-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CRN 155-3-1 B-G-A-E-HQQE model ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, making it a versatile solution for your pumping needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715119793488
Actual impeller diameter 6.64 in
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection 300 lb
Curve tolerance ISO9906:2012 3B
Diameter 6.64 in
DOE Pump Energy Index CL 0.93
Flange size for motor 444TSD
Frequency converter NONE
Impeller Stainless steel
Impellers 1
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 33
Maximum head 499 ft
Maximum operating pressure 40 bar
Model A
Motor 444TSD
Motor standard NEMA
Net weight 501.0 lb
Number of reduced-diameter impellers 1
Pressure rating for connection 300 lb
Pressure sensor N
Pump speed on which pump data are based 3569 rpm
Pump version B
Rated flow 820 US gpm
Rated head 350.7 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection 6 inch
Size of outlet connection 6 inch
Stages 3
Standard NEMA
Support bearing Graflon
Type of connection ANSI
Version B

Motor Curves

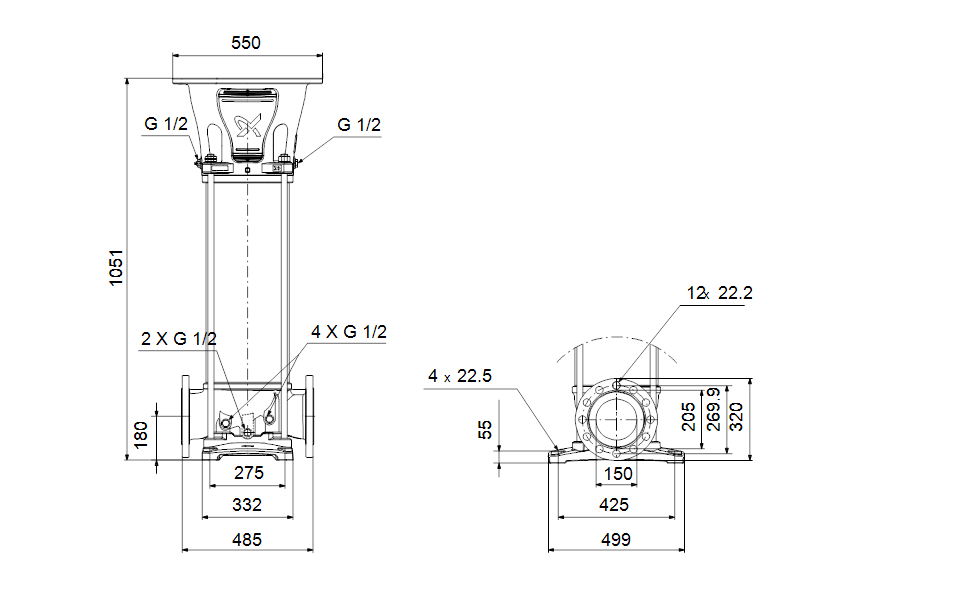

Dimensional Drawing
