Grundfos 92687218 - CRN 155-1 I-G-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92687218 - CRN 155-1 I-G-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN 155-1 I-G-A-E-HQQE model ensures optimal fluid handling capabilities, making it suitable for both water supply and process applications. Its versatility allows it to be used in various settings, including commercial buildings, irrigation systems, and industrial processes.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5715118144656
Actual impeller diameter 6.64 in
Approvals for drinking water NSF/ANSI 61
Bearing 1 Graflon
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G
Connection 300 lb
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.64 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP55
Flange size for motor 324TSC
Frequency converter NONE
IE efficiency IE3 92
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 33
Maximum ambient temperature 104 °F
Maximum head 180.8 ft
Maximum operating pressure 25 bar
Model A
Motor 324TSC
Motor efficiency at 1/2 load 0.917
Motor efficiency at 3/4 load 0.924
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type WEG
Net weight 934.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power factor 1 0.88
Pressure rating for connection 300 lb
Pressure sensor N
Pump speed on which pump data are based 3550 rpm
Pump version I
Pumped liquid Water
Rated current 92.6/46.3 A
Rated flow 820 US gpm
Rated head 127.3 ft
Rated power - P2 30 kW
Rated speed 3560 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection 6 inch
Size of outlet connection 6 inch
Stages 1
Standard NEMA
Starting current 6.3
Support bearing Graflon
Type WEG
Type of connection ANSI
Version I

Motor Curves

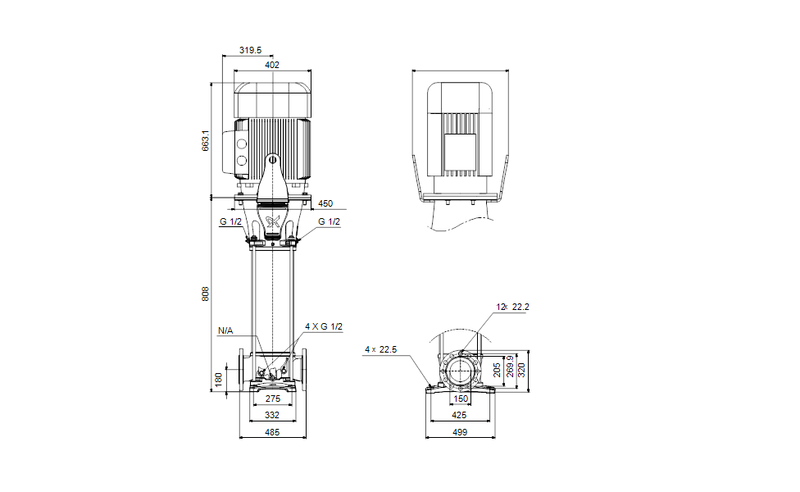

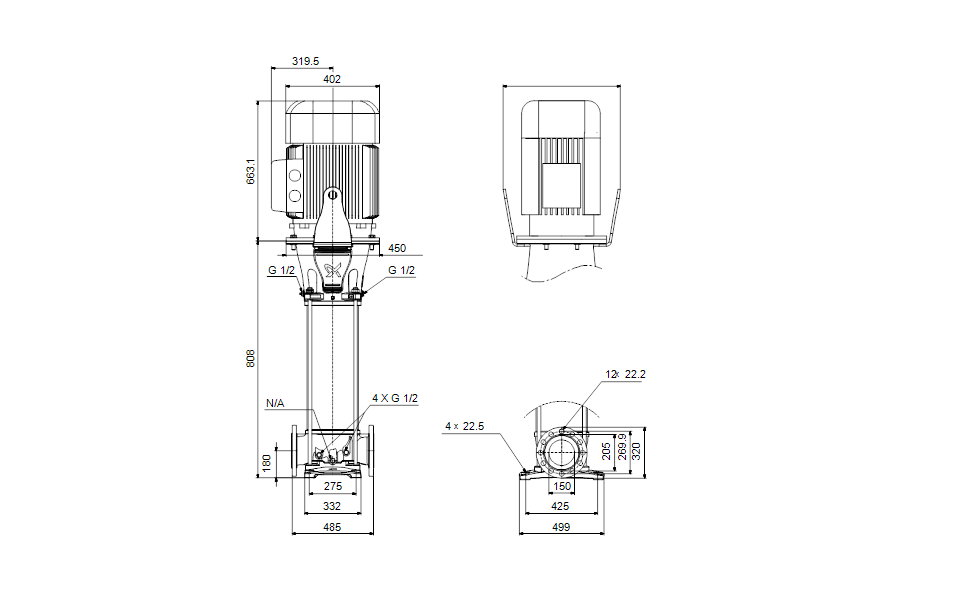

Dimensional Drawing

DWiring Diagram
