Grundfos 92941096 - CRN 15-8 FK-FGJ-T-F-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92941096

Price:
Sale price$32,987.50
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92941096 - CRN 15-8 FK-FGJ-T-F-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability in demanding environments.

With its robust construction and advanced design, the CRN 15-8 FK-FGJ-T-F-HQQE is ideal for high-pressure applications, ensuring optimal fluid transfer and consistent performance. This model is part of the Grundfos Centrifugal Pumps range, specifically categorized under Service Special, High Pressure, and Vertical Multistage types.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 92941096. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5715121884167
Actual impeller diameter 4.13 in
Approvals EAC
Built-in motor protection PTC
Code for rubber F
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor FF300
Frequency converter NONE
Gross weight 430.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range 14 .. 356 °F
Low NPSH Y
Mains frequency 60 Hz
Material code T
Material Pricing Group 6
Max pressure at stated temp 363 psi / 356 °F
Maximum ambient temperature 140 °F
Maximum head 553.5 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor efficiency at 1/2 load 92.1-91.3 %
Motor efficiency at 3/4 load 91.8-92.3 %
Motor efficiency at full load 1 90.2-91.0 %
Motor standard IEC
Motor type 160BB
Net weight 359.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 15 kW
Power factor 1 0.90-0.86
Pressure rating for connection PN 25
Pressure sensor N
Pump 15 kW
Pump speed on which pump data are based 3528 rpm
Pump version FK
Pumped liquid Water
Rated current 28.0-22.4 A
Rated flow 90.3 US gpm
Rated head 457.7 ft
Rated power - P2 15 kW
Rated speed 3520-3550 rpm
Rated voltage 3 x 380-480D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 8
Standard IEC
Starting current 580-890 %
Type 160BB
Type of connection DIN / ANSI / JIS
Version FK

Motor Curves

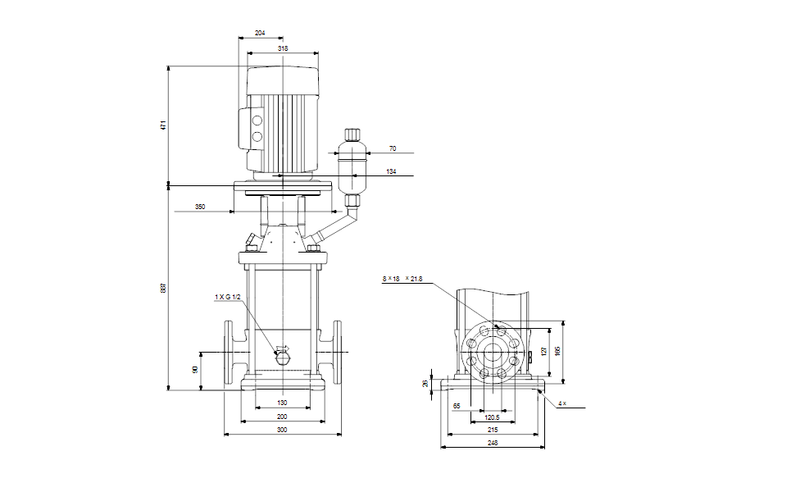

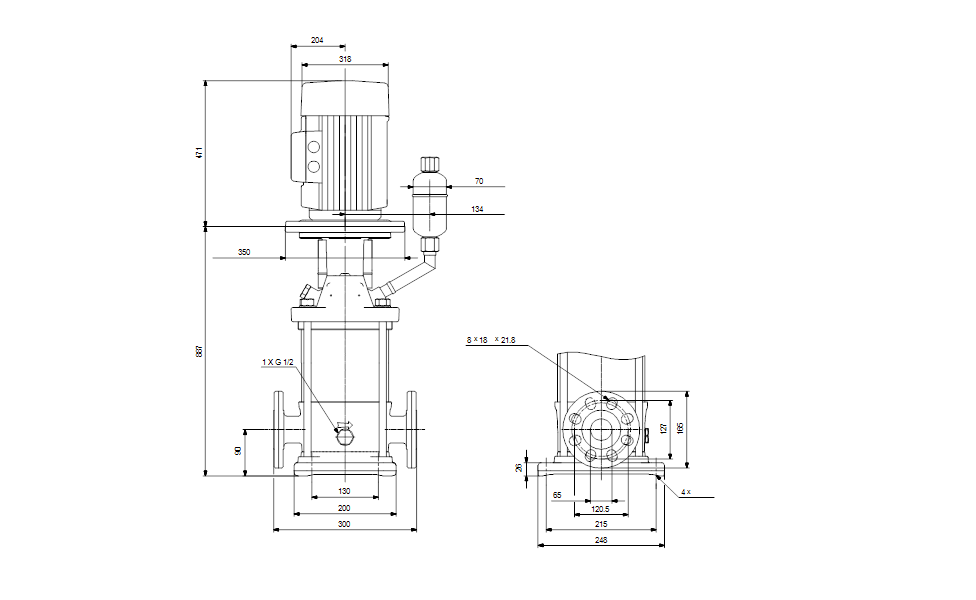

Dimensional Drawing

DWiring Diagram
