Grundfos 98100662 - CRN 15-6 P-P-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98100662

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98100662 - CRN 15-6 P-P-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 98100662 - CRN 15-6 P-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN 15-6 P-P-A-E-HQQE is perfect for applications requiring consistent flow and pressure. This pump is part of Grundfos's renowned line of centrifugal pumps, known for their durability and efficiency.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710629031785
Actual impeller diameter 4.13 in
Approvals CE
Approvals for drinking water NSF/ANSI 61
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange size for motor 213TC
Frequency converter NONE
Gross weight 172.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 393.7 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor standard NEMA
Net weight 86.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 50
Pressure sensor N
Pump speed on which pump data are based 3470 rpm
Pump version P
Rated flow 90.3 US gpm
Rated head 300.9 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 6
Standard NEMA
Type of connection PJE
Version P

Motor Curves

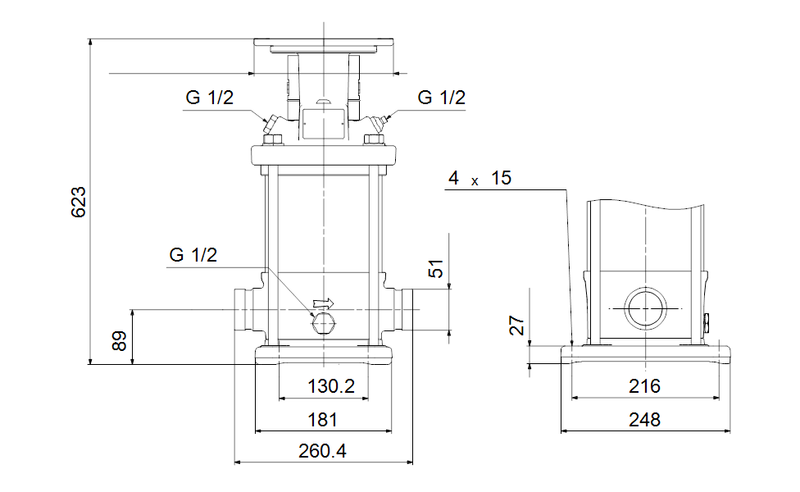

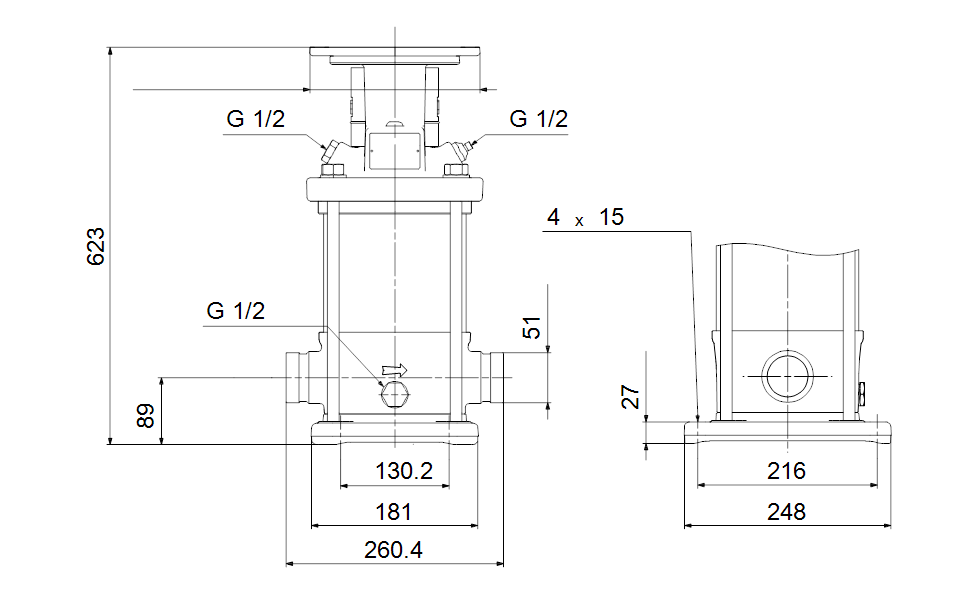

Dimensional Drawing
