Grundfos 98179189 - CRN 15-5 BR-FGJ-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98179189

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98179189 - CRN 15-5 BR-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 98179189 - CRN 15-5 BR-FGJ-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CRN 15-5 model ensures optimal flow rates and energy efficiency. This pump is perfect for applications requiring consistent pressure and flow, making it a versatile solution for various industries.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 98179189. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5711490995442
Approvals CE
Approvals for drinking water WRAS
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Frequency converter NONE
Gross weight 258.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 231.6 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor standard IEC
Net weight 196.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 4 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 4 kW
Pump speed on which pump data are based 2917 rpm
Pump version BR
Pumped liquid Water
Rated flow 74.8 US gpm
Rated head 181.8 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 5
Standard IEC
Type of connection DIN / ANSI / JIS
Version BR

Motor Curves

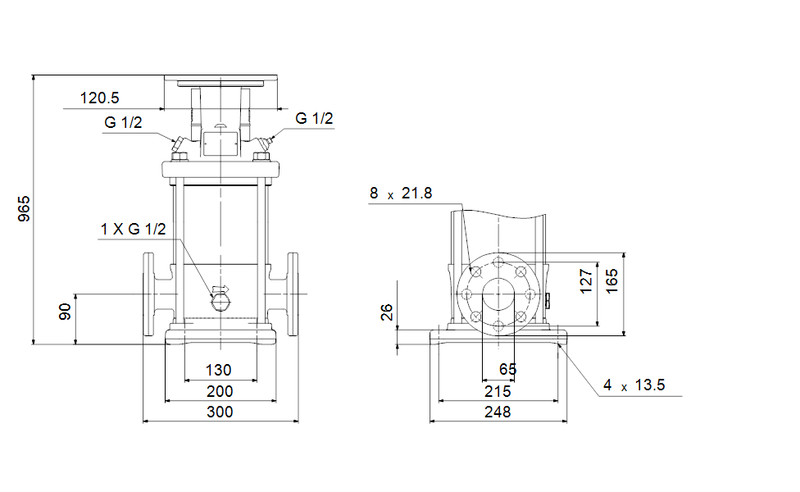

Dimensional Drawing
