Grundfos 98057537 - CRN 15-5 A-CX-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98057537

Price:
Sale price$10,662.50
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98057537 - CRN 15-5 A-CX-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN 15-5 A-CX-A-E-HQQE model is perfect for applications requiring consistent flow and pressure. This pump is categorized under Service Special, Single & Multi-Stage Centrifugal Pumps, and High Pressure systems, ensuring versatility in various operational environments.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the 98057537 to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710628248252
Actual impeller diameter 4.13 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor 213TC
Frequency converter NONE
Gross weight 218.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 331.4 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor efficiency at 1/2 load 91.4-89.7 %
Motor efficiency at 3/4 load 90.9-90.7 %
Motor efficiency at full load 1 90.0-90.2 %
Motor standard NEMA
Motor type 132FA
Net weight 201.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Power factor 1 0.87
Pressure rating for connection PN 25
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 3470 rpm
Pump version A
Pumped liquid Water
Rated current 26
Rated flow 90.3 US gpm
Rated head 254.6 ft
Rated power - P2 7.5 kW
Rated speed 3480-3500 rpm
Rated voltage 3 x 208-230YY/460Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 5
Standard NEMA
Starting current 680-900 %
Type 132FA
Type of connection TriClamp
Version A

Motor Curves

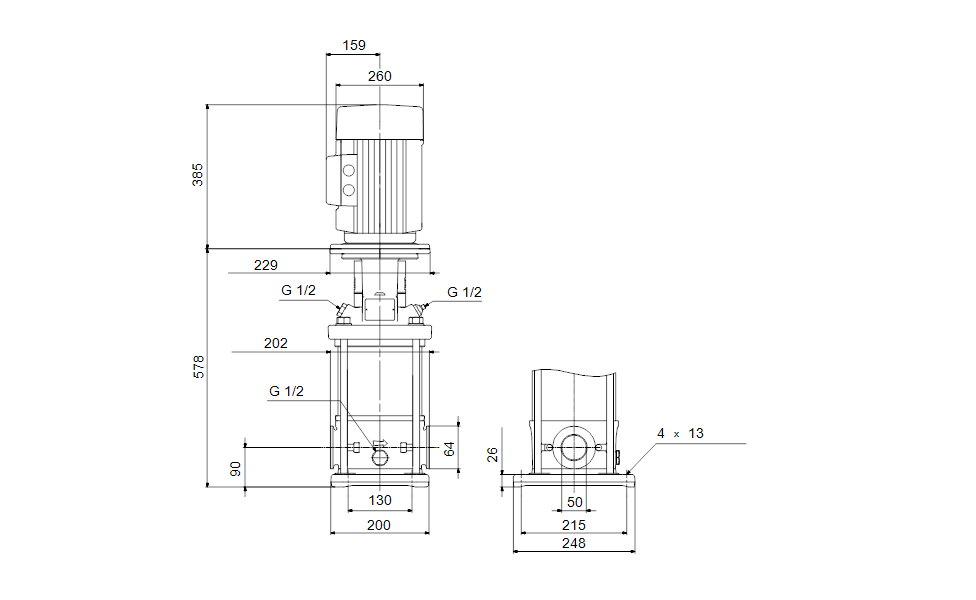

Dimensional Drawing

DWiring Diagram
