Grundfos 96546194 - CRN 15-5 A-FGJ-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 96546194

Price:
Sale price$10,212.50
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 96546194 - CRN 15-5 A-FGJ-A-V-HQQV is a vertical, multistage centrifugal pump designed for industrial and commercial fluid handling where compact vertical arrangements and high head are required.

Key features

  • Manufactured by Grundfos for reliable OEM quality
  • Vertical multistage centrifugal design suitable for high-pressure, in-line installations
  • Compact footprint delivers consistent pressure boosting and efficient transfer in tight mechanical spaces

Applications

Typical uses include boiler feed, high-pressure water boosting, process water transfer, HVAC and industrial circulation systems where staged pressure and space savings are important.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 96546194

EAN 5700398462286
Approvals CE
Approvals for drinking water WRAS
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Flange rating inlet 300 lb
Flange size for motor FF265
Frequency converter NONE
Gross weight 128.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 334.7 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF265
Motor standard IEC
Net weight 99.2 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 7.5 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 7.5 kW
Pump speed on which pump data are based 3525 rpm
Pump version A
Pumped liquid Water
Rated flow 90.3 US gpm
Rated head 266.1 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 5
Standard IEC
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

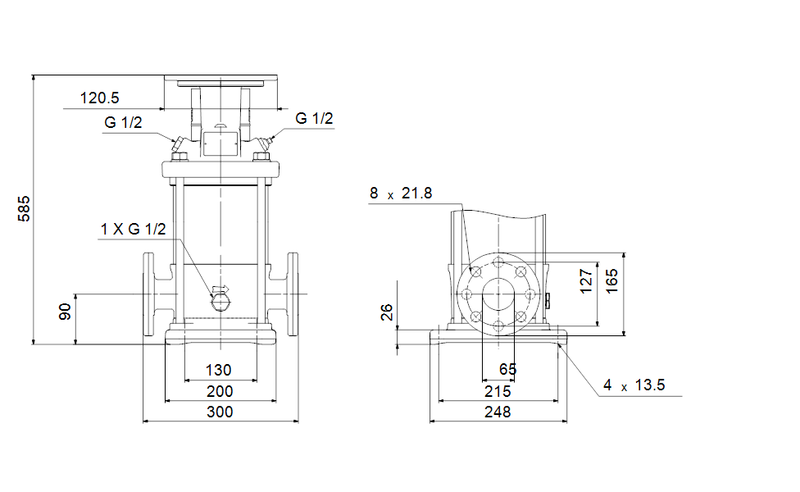

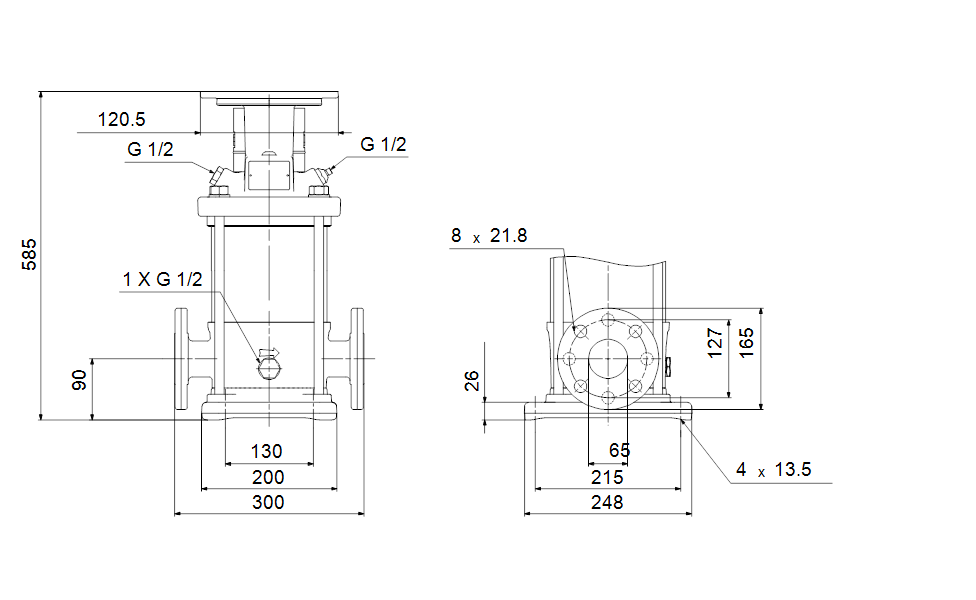

Dimensional Drawing
