Grundfos 92826071 - CRN 15-5 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92826071

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92826071 - CRN 15-5 A-P-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 92826071 - CRN 15-5 A-P-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN 15-5 A-P-A-E-HQQE model ensures optimal fluid handling capabilities, making it suitable for various operational environments. Whether you need a pump for water supply, irrigation, or industrial processes, this model is built to meet your demands.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5715120148314
Actual impeller diameter 4.13 in
Approvals CE
Approvals for drinking water WRAS
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange size for motor FT130
Frequency converter NONE
Gross weight 72.8 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 231.6 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT130
Motor standard IEC
Net weight 66.2 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 4 kW
Pressure rating for connection PN 50
Pressure sensor N
Pump 4 kW
Pump speed on which pump data are based 2917 rpm
Pump version A
Pumped liquid Water
Rated flow 74.8 US gpm
Rated head 181.8 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 5
Standard IEC
Type of connection PJE
Version A

Motor Curves

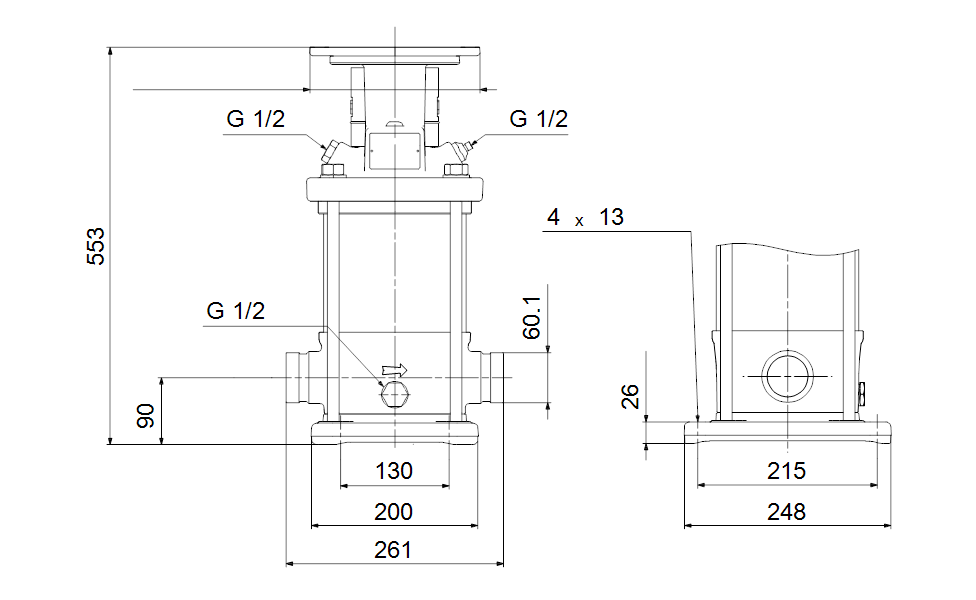

Dimensional Drawing
