Grundfos 96127005 - CRN 15-4 A-FGJ-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $2,828.65
GRUNDFOSSKU: 96127005

Price:
Sale price$3,780.35 Regular price$6,609.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

The Grundfos 96127005 - CRN 15-4 A-FGJ-A-E-HQQE is a high-quality vertical multistage centrifugal pump designed for various industrial applications. Manufactured by Grundfos, this pump is engineered for reliability and efficiency.

Key Features:

  • Vertical multistage design
  • Suitable for high-pressure applications
  • Ideal for a range of industrial uses

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you are considering this model, please ensure you match the exact model or SKU (96127005). If you have any questions or need assistance, do not hesitate to call us at (781) 281-8905.

For more information on specifications and applications, feel free to reach out to our team.

EAN 5700397002094
Applications Industrial applications
Actual impeller diameter 4.13 in
Approvals CE
Approvals for drinking water NSF/ANSI 61
Bearing 1 SIC
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection DIN / ANSI / JIS
Connection 2 DN 50
Connection 3 DN 50
Connection 4 PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency 60 HZ
Frequency converter NONE
Gross weight 108.0 lb
Impeller Stainless steel
Impellers 4
Liquid max temp 120°C
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 266.4 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 213TC
Motor standard NEMA
n rpm 3467rpm
Net weight 90.4 lb
Number of reduced-diameter impellers 0
Pressure rating PN 25
Pressure rating for connection PN 25
Product family CRN 15
Pump housing Stainless steel
Pump inlet DN 50
Pump outlet DN 50
Pump version A
Pumped liquid Water
Rated flow 90.3 US gpm
Rated flow 2 90.3 US gpm
Rated head 206 ft
Rated head 2 206 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Shaft seal HQQE
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 4
Standard NEMA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

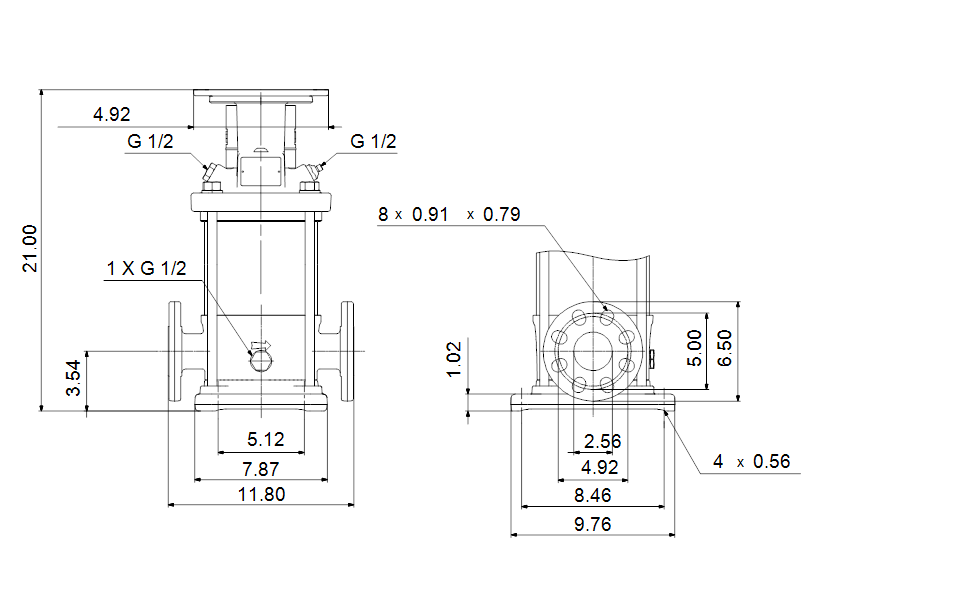

Dimensional Drawing
