Grundfos 98650401 - CRN 15-3 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98650401

Price:
Sale price$11,170.83
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98650401 - CRN 15-3 A-P-A-E-HQQE is a vertical multistage centrifugal replacement pump designed for inline, high-pressure service and common industrial applications where reliable multi-stage boosting is required.

Key features

  • Manufactured by Grundfos for industrial and service-special applications
  • Vertical, in-line multistage centrifugal design suited to high-pressure duties
  • Provides staged pressure boosting for consistent flow and reduced system wear

Applications

Typical uses include water booster systems, boiler feed, process circulation, and industrial high-pressure transfer where vertical multistage pumps are specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98650401

EAN 5711498913462
Actual impeller diameter 4.13 in
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT130
Frequency converter NONE
Gross weight 148.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 201.8 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT130
Motor efficiency at 1/2 load 86.9-84.7 %
Motor efficiency at 3/4 load 88.5-87.3 %
Motor efficiency at full load 1 88.5-88.5 %
Motor standard IEC
Motor type 112CA
Net weight 139.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 4 kW
Power factor 1 0.91-0.82
Pressure rating for connection PN 50
Pressure sensor N
Pump 4 kW
Pump speed on which pump data are based 3520 rpm
Pump version A
Pumped liquid Water
Rated current 13
Rated flow 90.3 US gpm
Rated head 157.2 ft
Rated power - P2 4 kW
Rated speed 3510-3540 rpm
Rated voltage 3 x 220-277D/380-480Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 3
Standard IEC
Starting current 1000-1470 %
Type 112CA
Type of connection PJE
Version A

Motor Curves

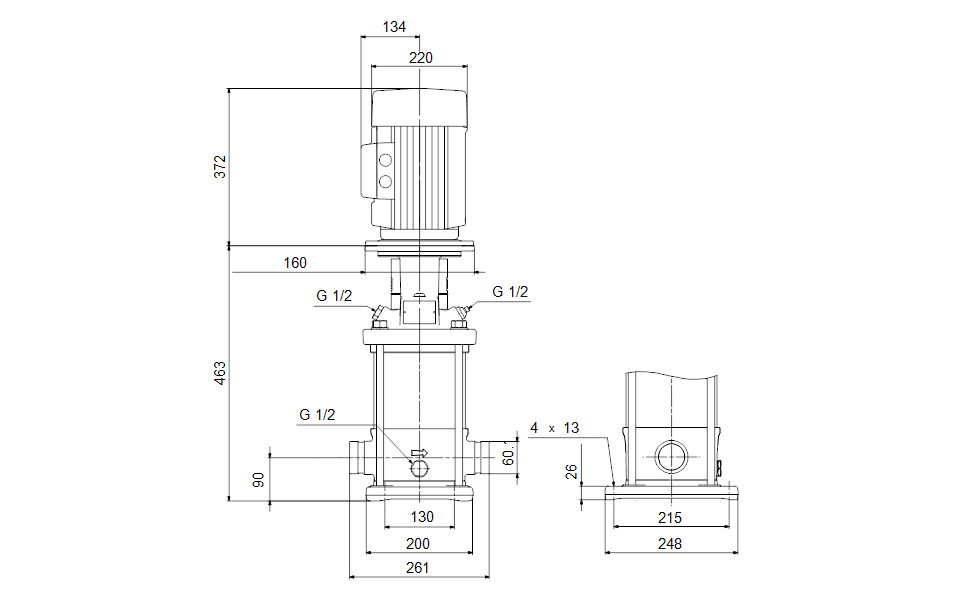

Dimensional Drawing

DWiring Diagram
