Grundfos 98286209 - CRN 15-3 P-FGJ-H-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98286209

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

CRN 15-3 P-FGJ-H-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges.

EAN 5711492470923
Actual impeller diameter 104.8 mm
Approvals CE
Code for rubber E
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 104.8 mm
DOE Pump Energy Index CL 0.91
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 44.0 kg
Impeller Stainless steel
Impellers 0
Liquid temperature range -20 .. 120 °C
Low NPSH N
Material code H
Material Pricing Group 6
Max pressure at stated temp 25 bar / 120 °C
Maximum head 61.1 m
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor standard NEMA
Net weight 36.0 kg
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version P
Rated flow 20.5 m³/h
Rated head 46.6 m
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 3
Standard NEMA
Type of connection DIN / ANSI / JIS
Version P

Motor Curves

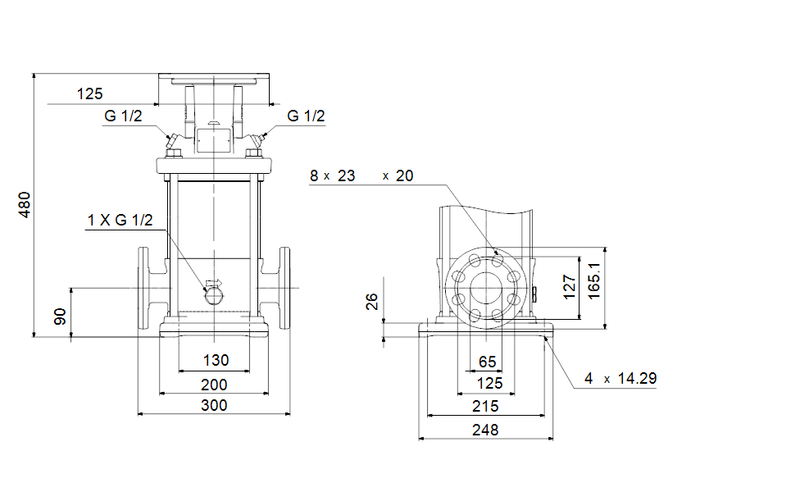

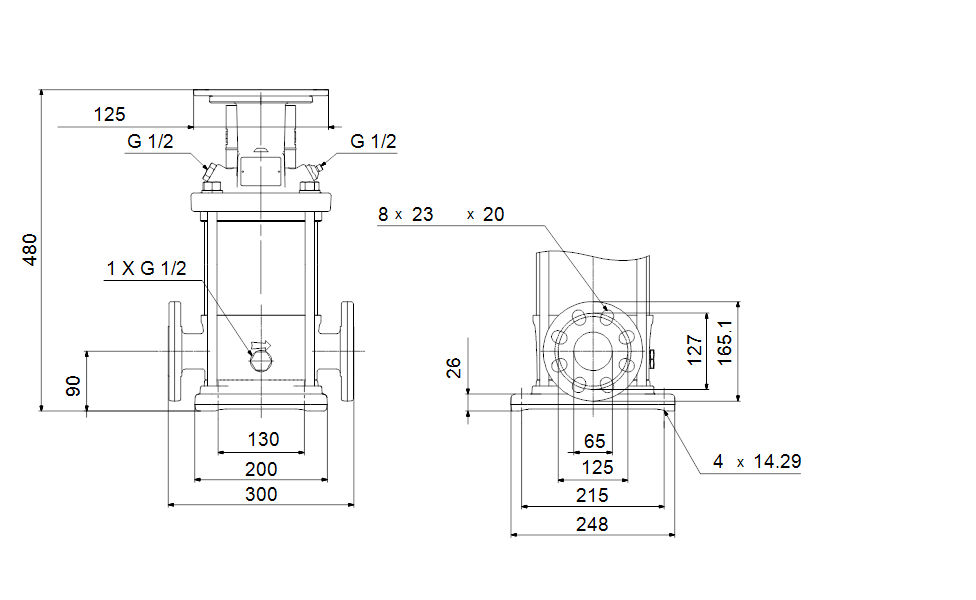

Dimensional Drawing
