Grundfos 98095713 - CRN 15-3 A-FGJ-A-K-HQQK | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98095713

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98095713 - CRN 15-3 A-FGJ-A-K-HQQK Vertical Multistage Centrifugal Pump

The Grundfos 98095713 - CRN 15-3 A-FGJ-A-K-HQQK is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Engineered by Grundfos, a leader in pump technology, this model ensures efficient fluid handling and reliable operation in demanding environments.

With its robust construction and advanced design, the CRN 15-3 A-FGJ-A-K-HQQK is ideal for high-pressure applications, making it a perfect choice for those seeking durability and efficiency. This pump is part of the Grundfos Centrifugal Pumps range, specifically tailored for both single and multi-stage operations.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5710628931789
Actual impeller diameter 4.13 in
Approvals CE
Code for rubber K
Code for shaft seal HQQK
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange rating inlet 300 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 104.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range 32 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 200.5 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor standard NEMA
Net weight 86.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version A
Rated flow 90.3 US gpm
Rated head 152.9 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber K
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 3
Standard NEMA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

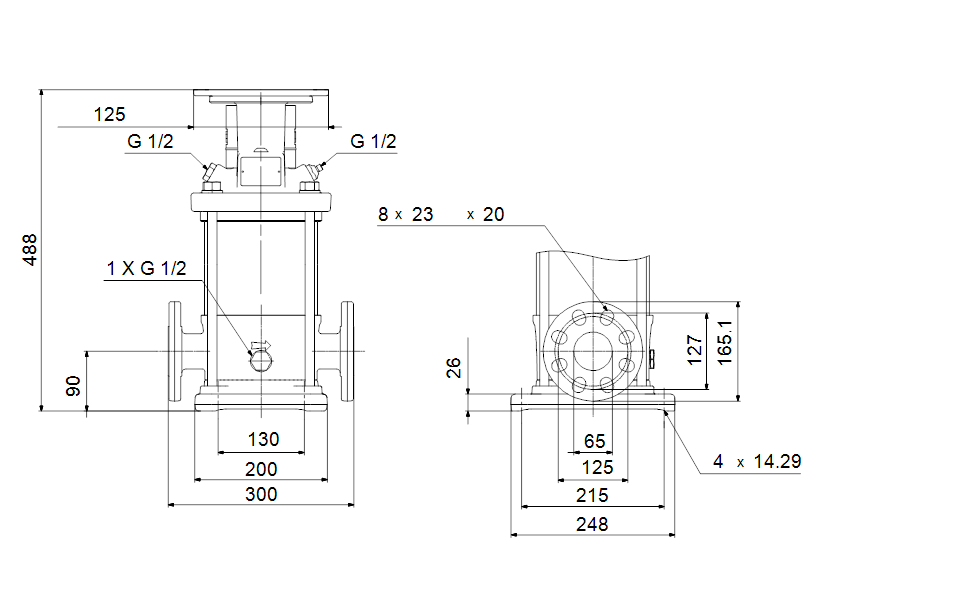

Dimensional Drawing
