Grundfos 98057524 - CRN 15-3 P-FGJ-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98057524

Price:
Sale price$9,109.72
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98057524 - CRN 15-3 P-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 98057524 - CRN 15-3 P-FGJ-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN 15-3 P-FGJ-A-V-HQQV model ensures optimal fluid handling capabilities, making it suitable for both water supply and process applications. Its versatility allows it to be used in various settings, including commercial buildings, irrigation systems, and industrial processes.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

EAN 5710628246944
Actual impeller diameter 4.13 in
Approvals CE
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange rating inlet 300 lb
Flange size for motor 182TC
Frequency converter NONE
Gross weight 99.2 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 200.5 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor standard NEMA
Net weight 83.8 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3461 rpm
Pump version P
Rated flow 90.3 US gpm
Rated head 152.9 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 3
Standard NEMA
Type of connection DIN / ANSI / JIS
Version P

Motor Curves

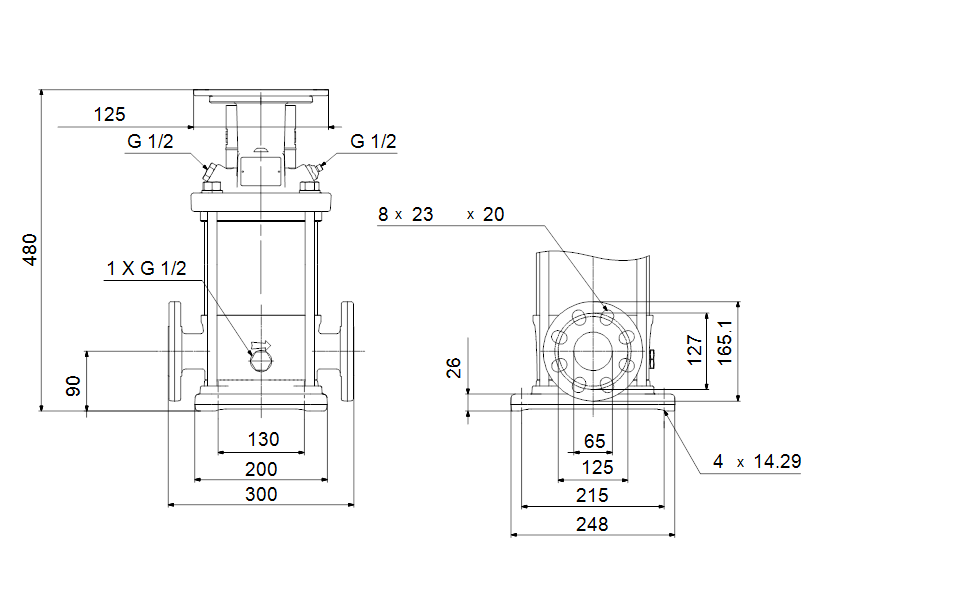

Dimensional Drawing
