Grundfos 98994752 - CRN 15-2 A-CX-T-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98994752

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98994752 - CRN 15-2 A-CX-T-E-HQQE is a vertical, multistage centrifugal pump designed for industrial service where compact high-pressure in-line pumping is required. Users include maintenance technicians and plant engineers replacing a specific CRN series unit.

Key features

  • Vertical multistage centrifugal design suitable for high-pressure applications
  • Service-special unit matching Grundfos Centrifugal Pumps single & multi-stage families
  • Compact in-line configuration for easier installation and replacement

Applications

Typical uses include boiler feed, pressure boosting, industrial process recirculation, and other high-pressure in-line pumping duties where a vertical multistage centrifugal pump is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98994752

EAN 5712604869055
Actual impeller diameter 4.13 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Enclosure class (IEC 34-5) 54 Dust/Splashing
Flange size for motor 182TC
Frequency converter NONE
Gross weight 181.0 lb
IE efficiency IE3 89.5%
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code T
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 135.5 ft
Maximum operating pressure 25 bar
Model A
Motor 182TC
Motor efficiency at full load 1 0.895
Motor standard NEMA
Motor type BALDOR
Net weight 163.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 3.7 kW
Pressure rating for connection PN 25
Pressure sensor N
Pump 3.7 kW
Pump speed on which pump data are based 3461 rpm
Pump version A
Pumped liquid Water
Rated current 12.2-11.2/5.6 A
Rated flow 90.3 US gpm
Rated head 103.7 ft
Rated power - P2 3.7 kW
Rated speed 3500 rpm
Rated voltage 3 x 208-230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 2
Standard NEMA
Type BALDOR
Type of connection TriClamp
Version A

Motor Curves

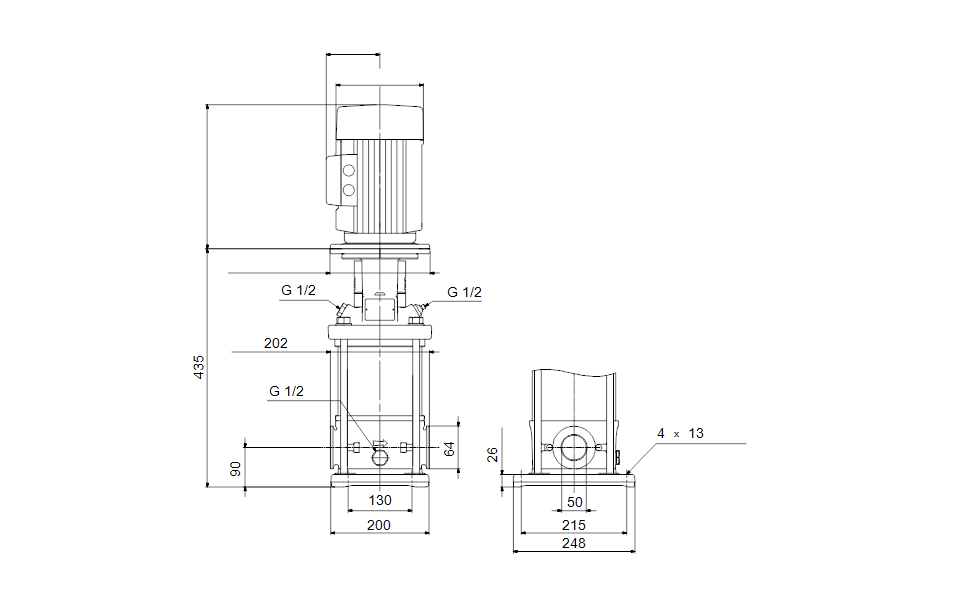

Dimensional Drawing

DWiring Diagram
