Grundfos 96768838 - CRN 15-12 FK-FGJ-A-F-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 96768838

Price:
Sale price$29,848.61
or Call for most up to date lead times. (781) 281-8905

Description

CRN 15-12 FK-FGJ-A-F-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A special "Low NPSH" first-stage design reduces the pump's NPSHr value. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via combined DIN-ANSI-JIS flanges.

EAN 5700839008370
Actual impeller diameter 4.13 in
Approvals CE
Code for rubber F
Code for shaft seal HQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 4.13 in
DOE Pump Energy Index CL 0.93
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 295.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range 14 .. 356 °F
Low NPSH Y
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 356 °F
Maximum head 818 ft
Maximum operating pressure 25 bar
Model A
Motor 284TC
Motor standard NEMA
Net weight 143.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3527 rpm
Pump version FK
Rated flow 90.3 US gpm
Rated head 670 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber F
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 12
Standard NEMA
Type of connection DIN / ANSI / JIS
Version FK

Motor Curves

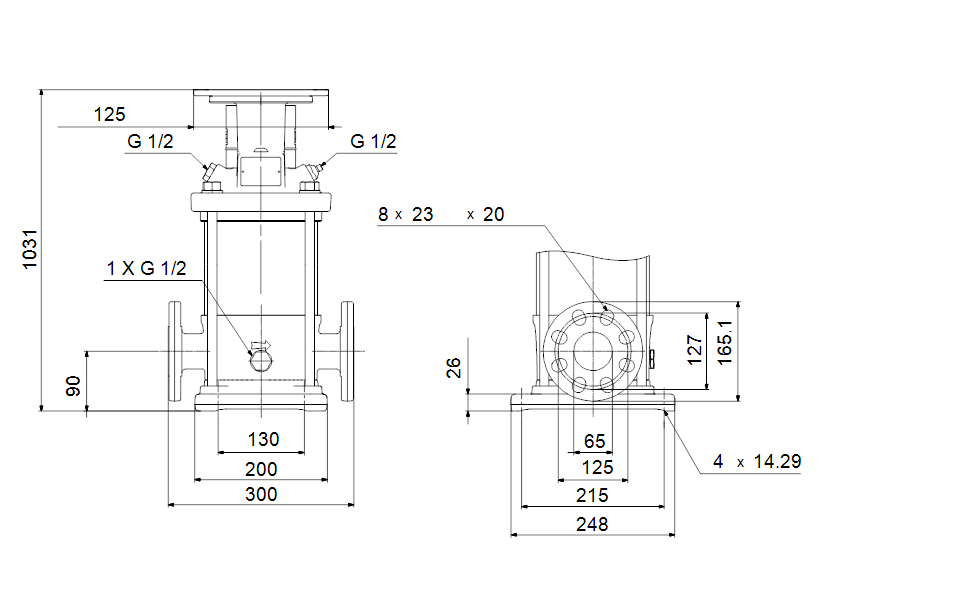

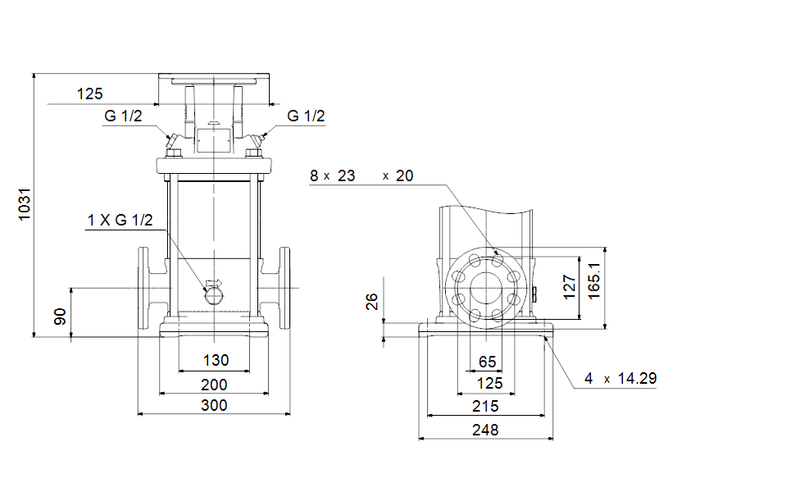

Dimensional Drawing
