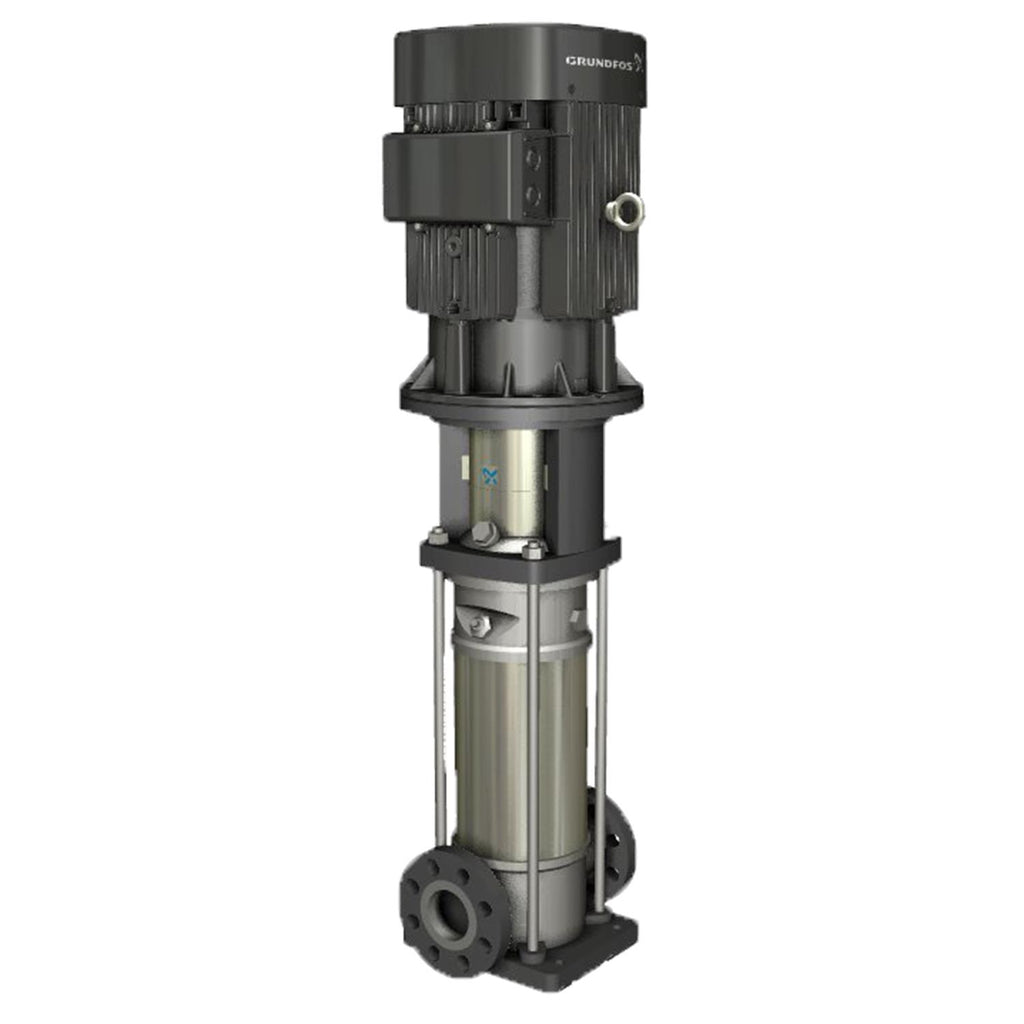

Grundfos 92829108 - CRN 15-12 A-FGJ-A-E-PQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92829108

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 92829108 - CRN 15-12 A-FGJ-A-E-PQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver exceptional efficiency and reliability, making it an ideal choice for high-pressure systems.

This model features a robust construction that ensures durability and longevity, while its multistage design allows for optimal performance in demanding environments. Whether you need to transport water or other fluids, the CRN 15-12 A-FGJ-A-E-PQQE is built to meet your needs with precision.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our experts are here to help!

Explore the reliability and efficiency of the Grundfos 92829108 - CRN 15-12 A-FGJ-A-E-PQQE and elevate your pumping solutions today!

EAN 5715120193482
Actual impeller diameter 4.13 in
Approvals CE
Code for rubber E
Code for shaft seal PQQE
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Diameter 4.13 in
DOE Pump Energy Index CL 0.91
Flange rating inlet 300 lb
Flange size for motor 284TC
Frequency converter NONE
Gross weight 267.0 lb
Impeller Stainless steel
Impellers 0
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum head 800.6 ft
Maximum operating pressure 25 bar
Model A
Motor 284TC
Motor standard NEMA
Net weight 137.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 25
Pressure sensor N
Pump speed on which pump data are based 3521 rpm
Pump version A
Rated flow 90.3 US gpm
Rated head 644.4 ft
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 12
Standard NEMA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

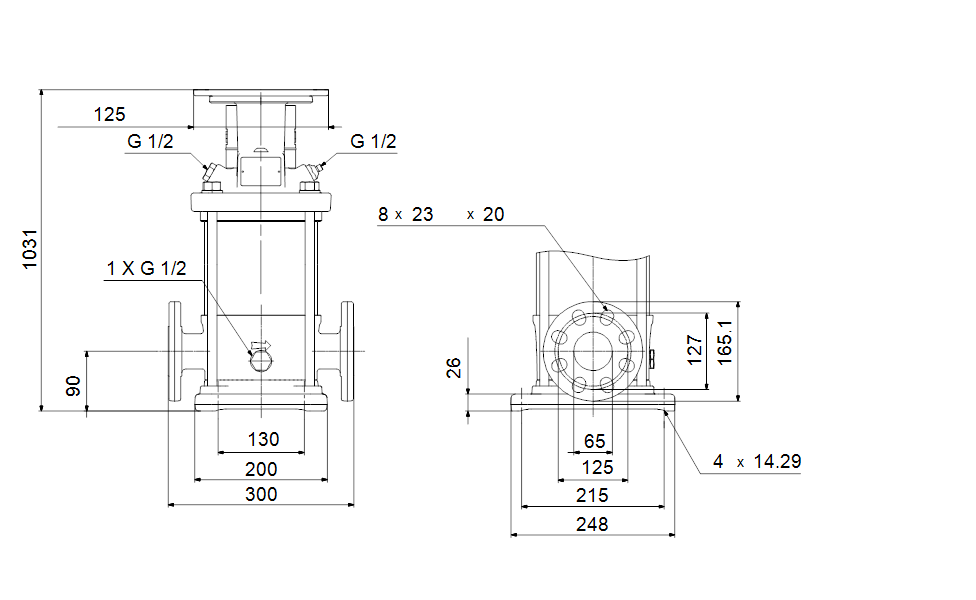

Dimensional Drawing
