Grundfos 99479268 - CRN 15-11 S-P-A-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99479268

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 15-11 S-P-A-E-HQQE Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5712609815859
Approvals CE
Built-in motor protection PTC
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PJE
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Frequency converter NONE
Gross weight 410.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 725 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 734.9 ft
Maximum operating pressure 50 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor efficiency at 1/2 load 92.9-91.3 %
Motor efficiency at 3/4 load 91.9-92.3 %
Motor efficiency at full load 1 91.0-91.0 %
Motor standard IEC
Motor type 160MD
Net weight 362.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 15 kW
Power factor 1 0.89-0.86
Pressure sensor N
Pump 15 kW
Pump speed on which pump data are based 3540 rpm
Pump version S
Pumped liquid Water
Rated current 26
Rated flow 90.3 US gpm
Rated head 596.5 ft
Rated power - P2 15 kW
Rated speed 3530-3550 rpm
Rated voltage 3 x 400-480D/690Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Stages 11
Standard IEC
Starting current 640-890 %
Type 160MD
Type of connection PJE
Version S

Motor Curves

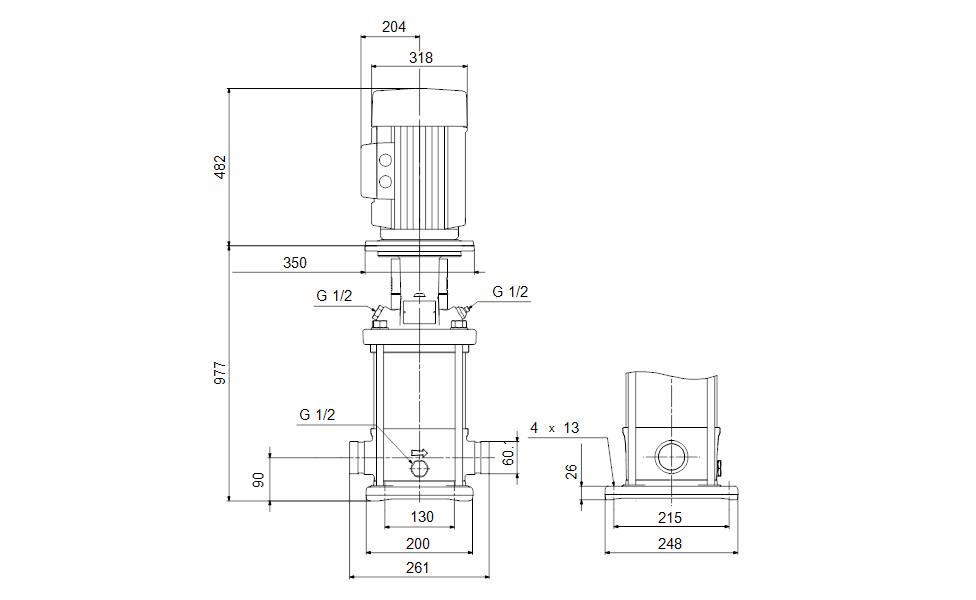

Dimensional Drawing

DWiring Diagram
