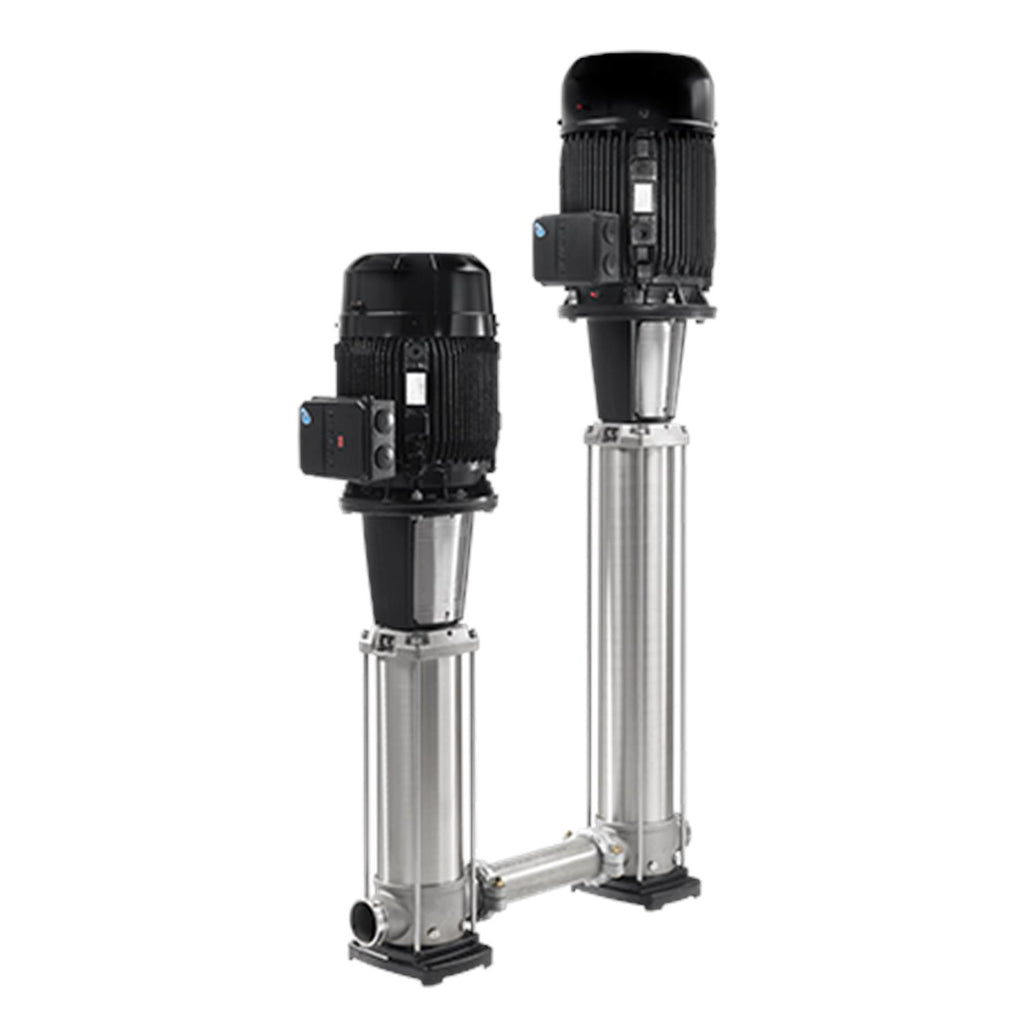

CRN 15-11 S-P-A-V-HQQV · Vertical Multistage Centrifugal Pump — All Stainless
CRN20HP200-220D/346-380YV3.0-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/JettingStainless steel

The Grundfos 96512260 (CRN 15-11 S-P-A-V-HQQV) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 90.3US gpm at 591.9ft. Rated 200-220D/346-380YV, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.

Power
20HP
Voltage
200-220D/346-380YV
Phase
3.0-Phase
Max Flow
90.3US gpm
Max Head
591.9ft
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

All Stainless Steel Construction

Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.

Corrosion-Resistant for Aggressive Fluids

316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.

Cartridge Mechanical Seal

Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.

Dual Flange Standard — DIN, ANSI, JIS

CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.

3-A and FDA-Compliant Options

Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.

Wide Pressure Range

CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.

Model Information — CRN 15-11 S-P-A-V-HQQV
Series: CRN
Model Code: CRN 15-11 S-P-A-V-HQQV
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, V FKM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQV
Technical Specifications
Model Number 96512260
Product Series CRN
Series Description Vertical Multistage Centrifugal Pump — All Stainless
Power 20HP
Voltage 200-220D/346-380YV
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 3520-3540rpm
Pump Speed 3525rpm
Full Load Current 51,5-44/30-25,5A
Motor Type 160MD
Motor Protection PTC
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 91.0-91.0%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 90.3US gpm
Nominal Head 591.9ft
Max Fluid Temperature 194°F
Max Ambient Temperature 140°F
Nominal Pipe Bore 2inch
Pipe Standard PJE
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQV
Approvals / Certifications CE, EAC, UKCA, SEPRO
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 200-220D/346-380YV, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 194°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 15-11 S-P-A-V-HQQV
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5700396600444
Applications Industrial applications
Approvals CE
Built-in motor protection PTC
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection 2 inch
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FF300
Frequency converter NONE
Gross weight 385.0 lb
Housing Stainless steel
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 11
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 725 psi / 194 °F
Maximum ambient temperature 140 °F
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FF300
Motor efficiency at 1/2 load 92.1-91.3 %
Motor efficiency at 3/4 load 91.8-92.3 %
Motor efficiency at full load 1 91.0-91.0 %
Motor type 160MD
Net weight 329.0 lb
Number of poles 2
Power (P2) required by pump 15 kW
Power factor 1 0.92-0.92
Product family CRN 15-SF
Pump 15 kW
Pump housing Stainless steel
Pump speed on which pump data are based 3525 rpm
Pump version S
Pumped liquid Water
Rated current 51
Rated flow 90.3 US gpm
Rated head 591.9 ft
Rated power - P2 15 kW
Rated speed 3520-3540 rpm
Rated voltage 3 x 200-220D/346-380Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of connection 2 inch
Stages 11
Starting current 610-860 %
Type 160MD
Type of connection PJE
Version S

Motor Curves

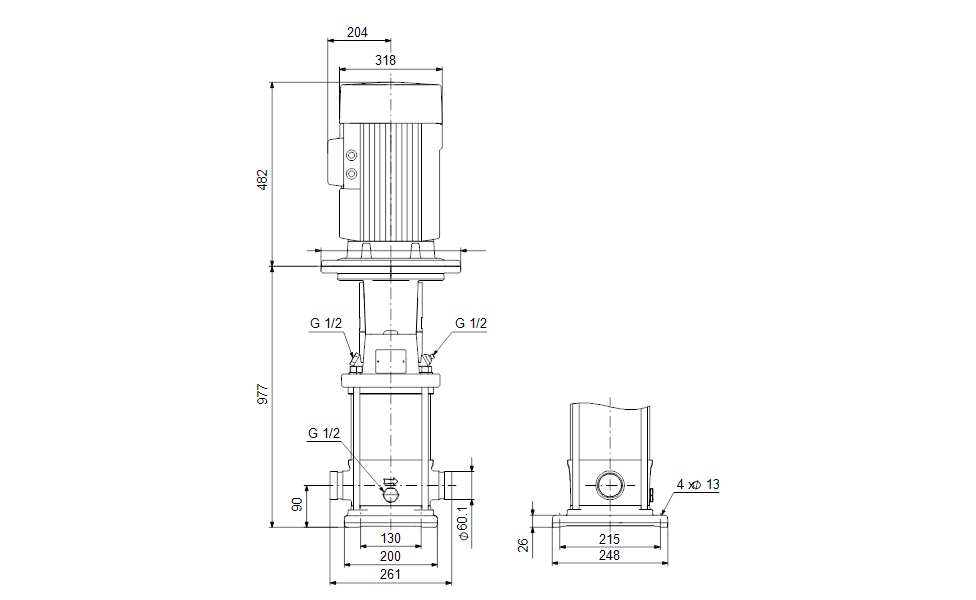

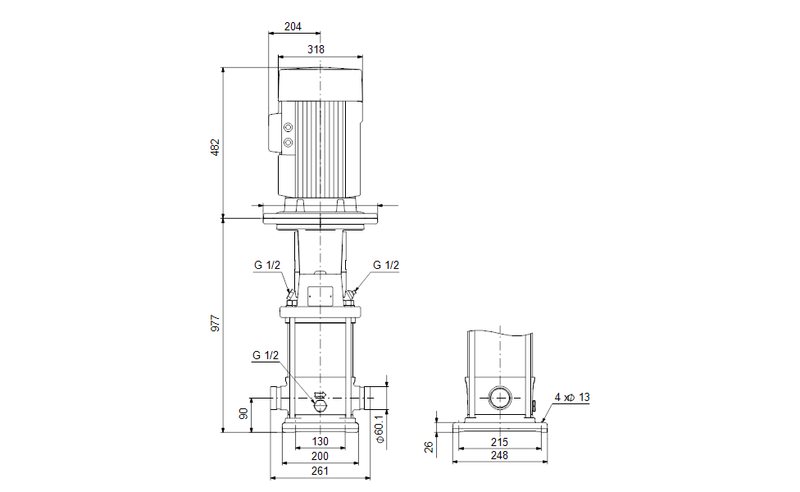

Dimensional Drawing

DWiring Diagram
