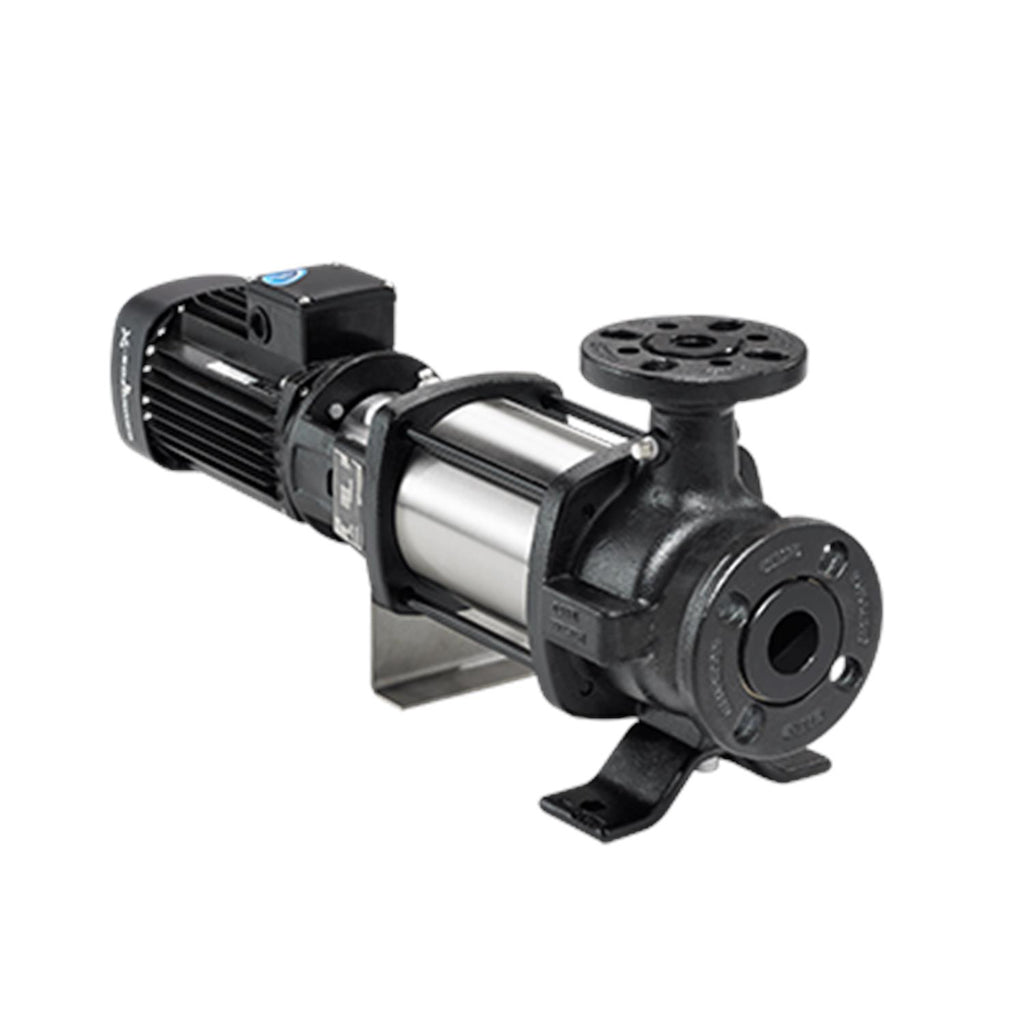

Grundfos 97734139 - CRN 15-1 H-G22-A-E-HQQE | Horizontal | End Suction

Save $3,013.98
GrundfosSKU: 97734139

Price:
Sale price$4,028.02 Regular price$7,042.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRN 15-1 H-G22-A-E-HQQE · Vertical Multistage Centrifugal Pump — All Stainless
CRN2HP208-230YY/460YV3-Phase60 HzNEMA Premium / IE3 60HzIP55 Dust/JettingStainless steel

The Grundfos 97734139 (CRN 15-1 H-G22-A-E-HQQE) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 74.8US gpm at 49.54ft. Rated 208-230YY/460YV, 3-Phase, 60 Hz.

Power
2HP
Voltage
208-230YY/460YV
Phase
3-Phase
Max Flow
74.8US gpm
Max Head
49.54ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

All Stainless Steel Construction

Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.

Corrosion-Resistant for Aggressive Fluids

316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.

Cartridge Mechanical Seal

Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.

Dual Flange Standard — DIN, ANSI, JIS

CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.

3-A and FDA-Compliant Options

Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.

Wide Pressure Range

CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.

Model Information — CRN 15-1 H-G22-A-E-HQQE
Series: CRN
Model Code: CRN 15-1 H-G22-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQE
Flange Rating: PN 16
Technical Specifications
Model Number 97734139
Product Series CRN
Series Description Vertical Multistage Centrifugal Pump — All Stainless
Power 2HP
Voltage 208-230YY/460YV
Phase 3-Phase
Frequency 60 Hz
Motor Speed 3500-3520rpm
Pump Speed 3452rpm
Full Load Current 6,00-5,80/2,90A
Motor Type 90GB
Motor Efficiency Class NEMA Premium / IE3 60Hz
Motor Efficiency 85.5-85.5%
Insulation Class F
Protection Class (IP) IP55 Dust/Jetting
Nominal Flow 74.8US gpm
Nominal Head 49.54ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 104°F
Inlet Connection 2inch
Outlet Connection 2inch
Pipe Pressure Rating PN 16
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQE
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 208-230YY/460YV, 3-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 104°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 15-1 H-G22-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
Approvals on nameplate CURUS,NSF/ANSI 61
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code G22
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 150 lb
Flange size for motor 56C
Frequency 60 Hz
Frequency converter NONE
Gross weight 240.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CRN 15-1 H-G22-A-E-HQQE
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 248°F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Material code A
Maximum ambient temperature 104 °F
Maximum head 63 ft
Maximum operating pressure 232.06 psi
Model A
Motor 56C
Motor efficiency at 1/2 load 86.3-85.0 %
Motor efficiency at 3/4 load 87.4-86.8 %
Motor efficiency at full load 1 85.5-85.5 %
Motor standard NEMA
Motor type 90GB
n rpm F
Net weight 139.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 2 HP
Phase 3
Power (P2) required by pump 2 HP
Power factor 1 0.81-0.78
Pressure rating for connection PN 16
Pressure sensor N
Pump 2 HP
Pump version H
Rated current 6,00-5,80/2,90 A
Rated flow 74.8 US gpm
Rated head 49.54 ft
Rated power - P2 2 HP
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Rubber E
Sales region USA
Service factor 1.15
Shaft Product name:CRN 15-1 H-G22-A-E-HQQE
Shaft seal HQQE
Stages 2
Standard NEMA
Starting current 800-910 %
Type 90GB
Version H

Motor Curves

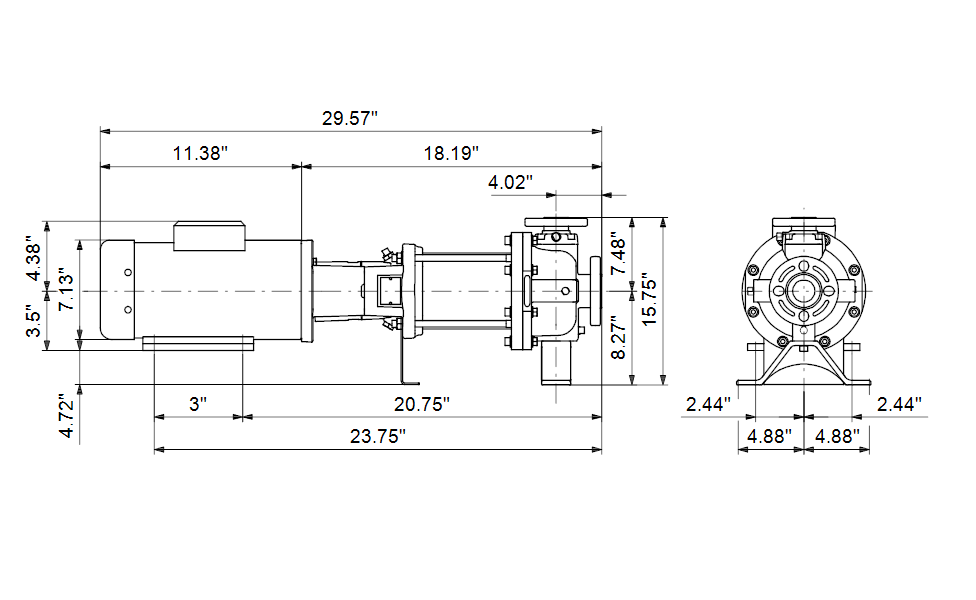

Dimensional Drawing

DWiring Diagram
