Grundfos 97734036 - CRN 15-1 H-GA-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $2,986.58
GRUNDFOSSKU: 97734036

Price:
Sale price$3,991.42 Regular price$6,978.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97734036 - CRN 15-1 H-GA-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, HVAC applications, and other demanding environments.

This model features a robust construction that ensures durability and longevity, while its multistage design allows for high flow rates and optimal performance. The CRN series is known for its versatility and can be utilized in both horizontal and vertical installations, providing flexibility for various setups.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97734036. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Approvals on nameplate CURUS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code GA
Connection PN 16
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 150 lb
Flange size for motor 56C
Frequency 60 Hz
Frequency converter NONE
Gross weight 146.0 lb
IE Eff. Class NEMA Premium / IE3 60Hz
IE efficiency Product name:CRN 15-1 H-GA-A-V-HQQV
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation F
Insulation class (IEC 85) F
IP Class 55 Dust/Jetting
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum ambient temperature 104 °F
Maximum head 63 ft
Maximum operating pressure 232.06 psi
Model A
Motor 56C
Motor efficiency at 1/2 load 86.3-85.0 %
Motor efficiency at 3/4 load 87.4-86.8 %
Motor efficiency at full load 1 85.5-85.5 %
Motor standard NEMA
Motor type 90GB
n rpm F
Net weight 130.0 lb
Number of poles 2
Number of reduced-diameter impellers 0
P2 kW 2 HP
Phase 3
Power (P2) required by pump 2 HP
Power factor 1 0.81-0.78
Pressure rating for connection PN 16
Pressure sensor N
Pump 2 HP
Pump version H
Rated current 6,00-5,80/2,90 A
Rated flow 74.8 US gpm
Rated head 49.54 ft
Rated power - P2 2 HP
Rated speed 3500-3520 rpm
Rated voltage 3 x 208-230YY/460Y V
Rubber V
Sales region USA
Service factor 1.15
Shaft Product name:CRN 15-1 H-GA-A-V-HQQV
Shaft seal HQQV
Stages 2
Standard NEMA
Starting current 800-910 %
Type 90GB
Version H

Motor Curves

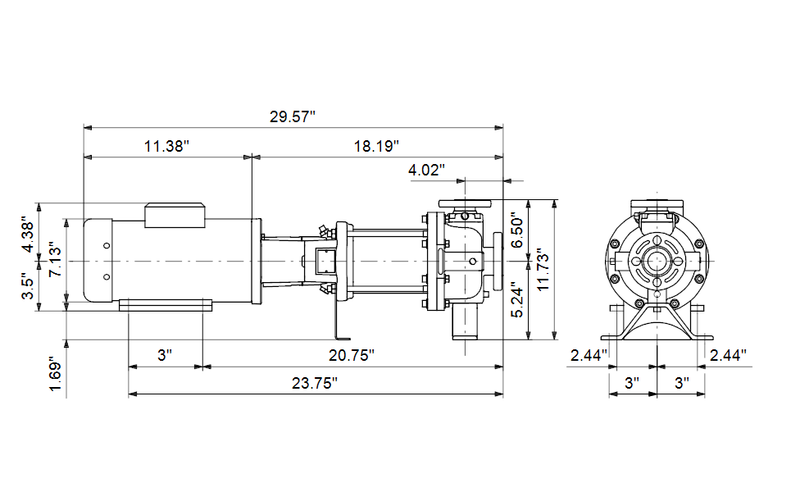

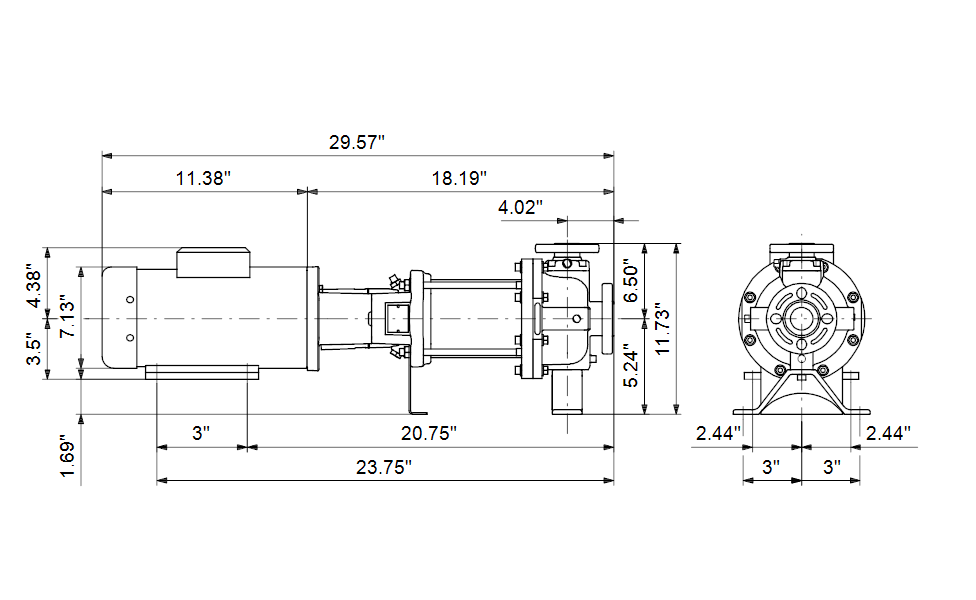

Dimensional Drawing

DWiring Diagram
